6. Carefully remove the terminal mounting plate along with the wiring and
internal reed switch assembly from the stem of the FLR. Keep the assembly
straight and take care not to bend or put stress on the reed switches.

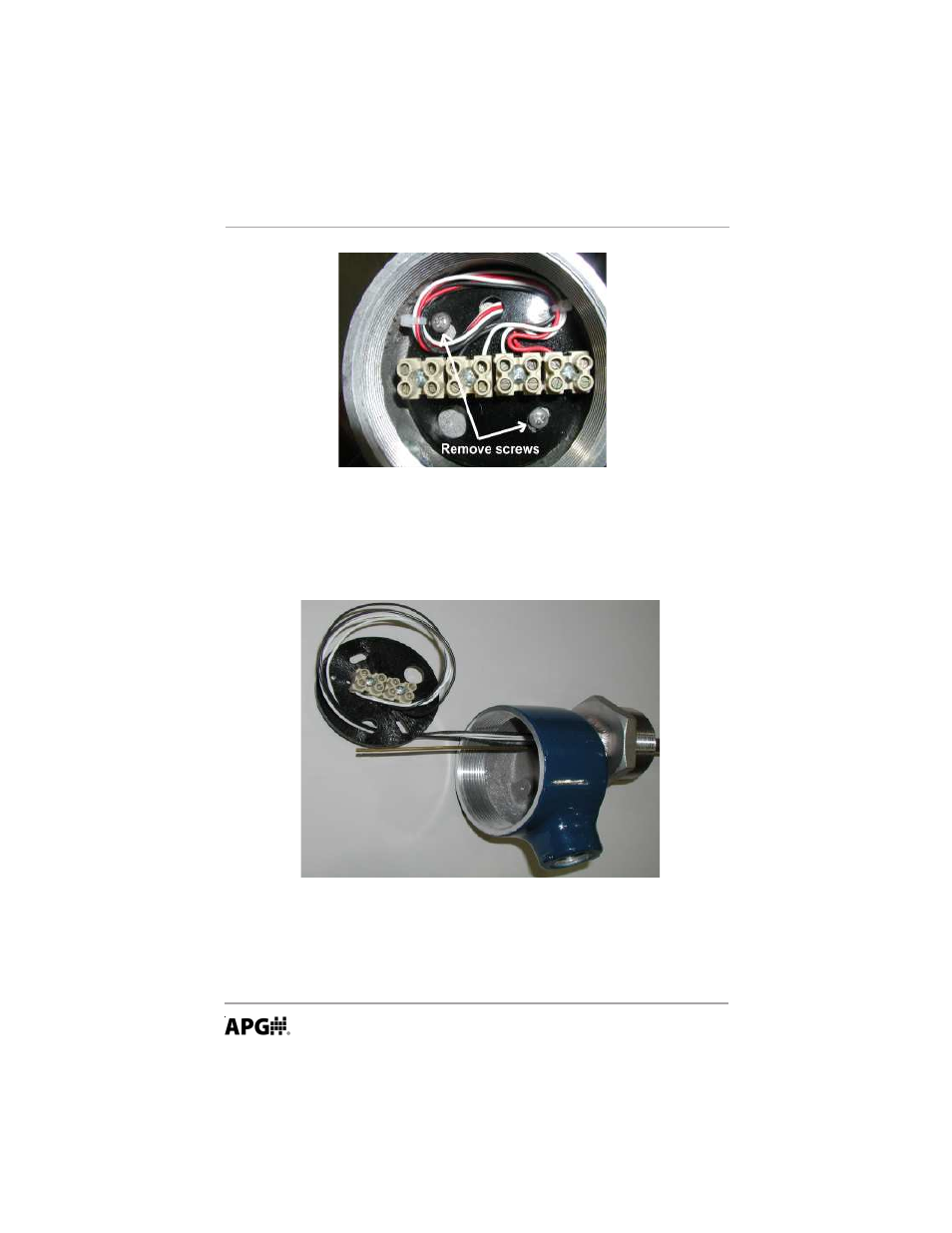

5. With the float and stops in place at the new actuation point, the internal reed
switch needs to be repositioned to match the new actuation point. Remove the
two screws that secure the terminal mounting plate to the housing (shown
above).
