PT-500

Rev.C2, 1/09

8

Automation Products Group, Inc.

APG...Providing tailored solutions for measurement applications

Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • [email protected]

Field Maintenance

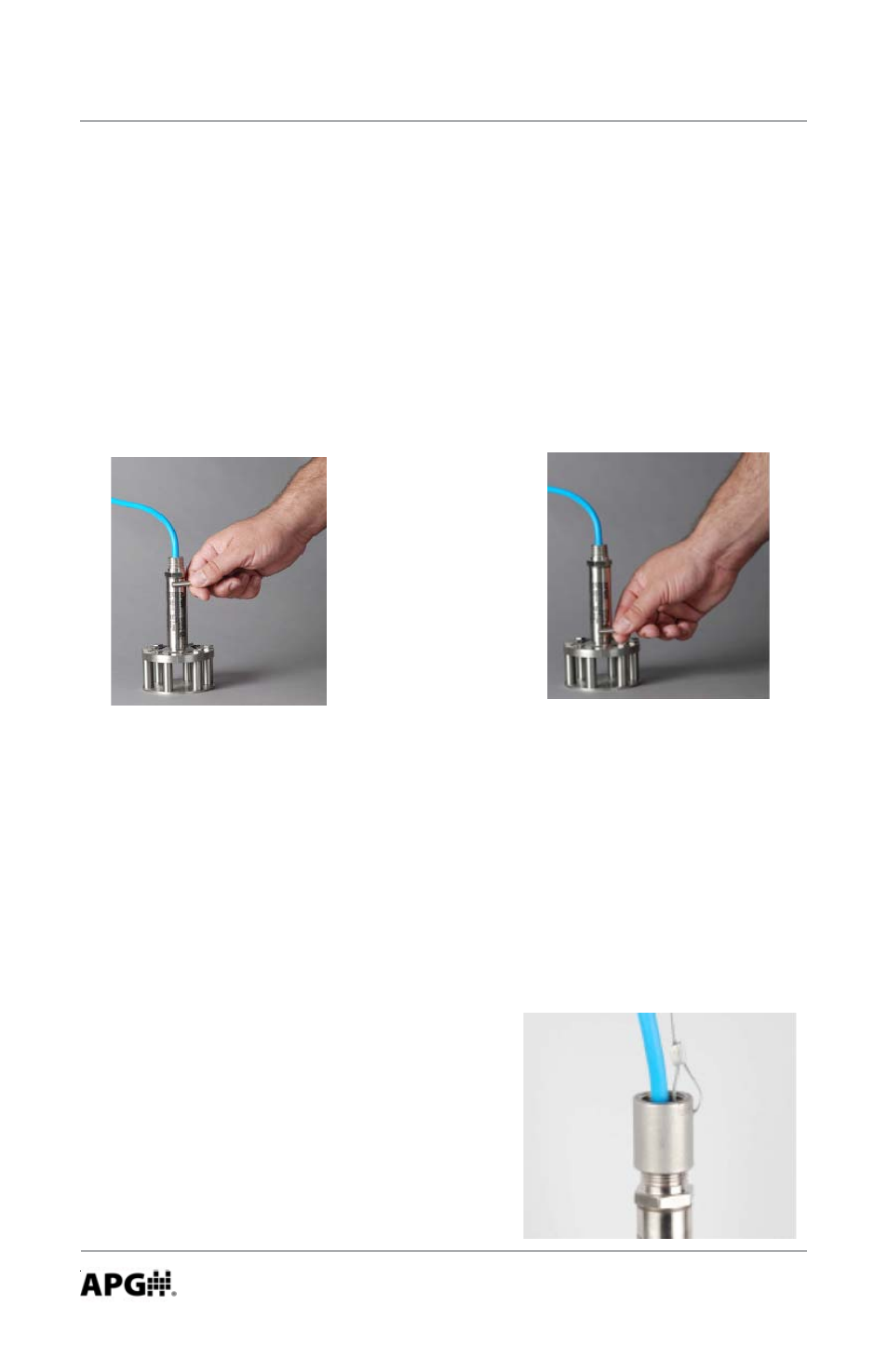

1. Zero Adjust

The zero output (4mA) can be adjusted by holding a magnet close to the

can, approx. 1 1/2 inches from the top or bottom of the can.

If the zero output values do not change right away, hold the magnet in place
near the top of the can until the values change, up to two minutes. If there is no
change, repeat the procedure near the bottom of the can. If there is still no
change,consult the factory.

Holding the magnet Holding the magnet
perpendicular near the perpindicular near the
top increases the output. bottom decreases the
output

Note: Span calibration must be done at the factory.

2. Suspension Mounting

For suspension mounting the PT-500, drill a 3/16” hole into the 1/2”NPTF to

1/2”NPTF hex coupler (P/N 511414) and secure it to the 1/2”NPTM coupler
fitting of the PT-500. Attach a .060 in diameter
316L SS cable of desired length to the hex
coupler and secure the steel cable according to
your application requirements.
