• Instructions
All units are factory calibrated prior to shipment.
1. Zero Trimming/Calibration
Because the can is closed and sealed, any adjustments and calibrations must
be done at the factory.
2. Output
The PT-L9/L13/L14-C transducers are a mV/V output device. The output is
dependent on the excitation. These devices are conditioned for 10 VDC
excitation.
Device Output Type Excitation Full Scale Output
L9 10 mV/V 10 VDC 100 mV
L13 3 mV/V 10 VDC 30 mV
L14 5 mV/V 10 VDC 50 mV
3. Wiring Information

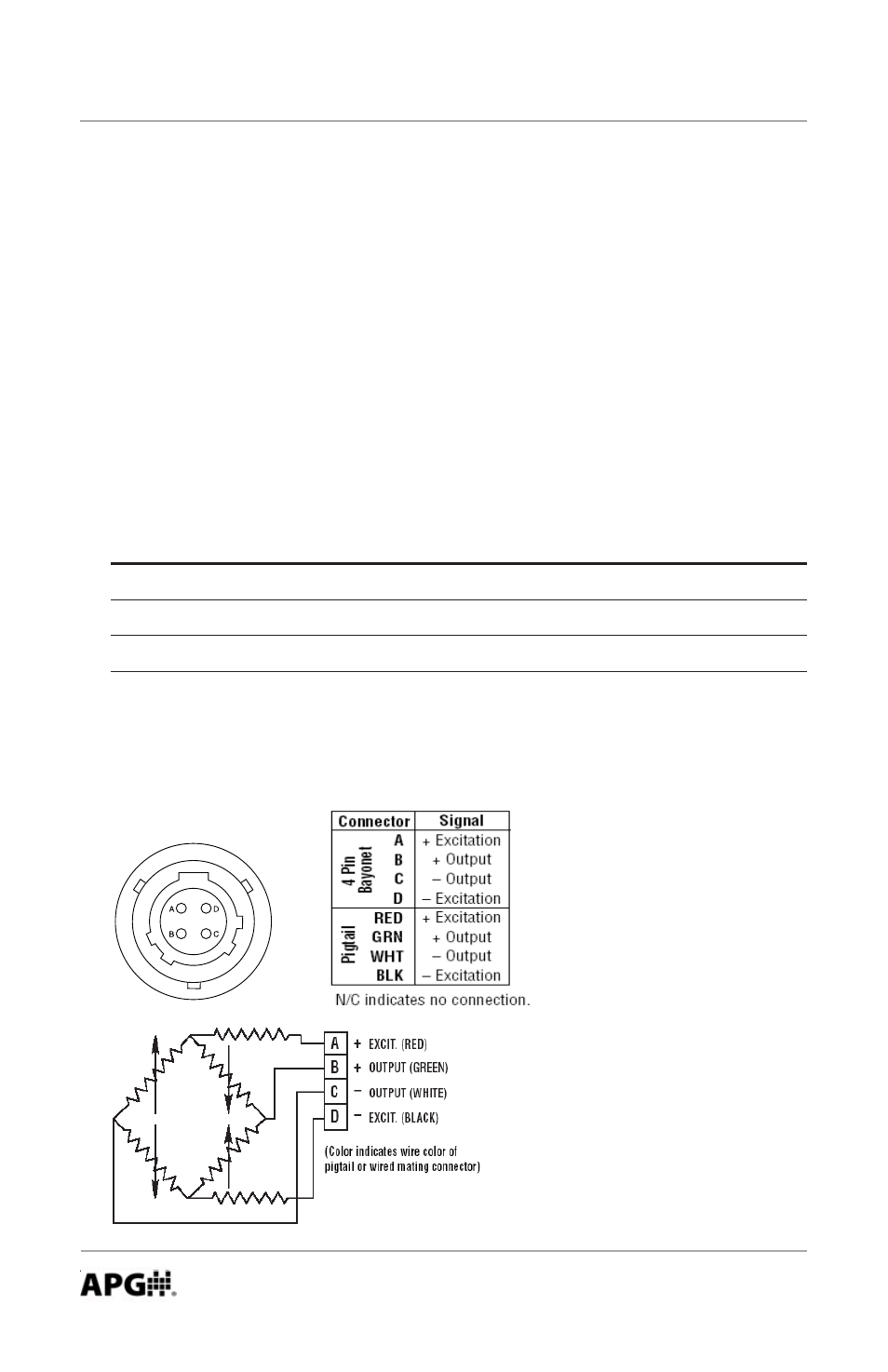

Below, are the pin out diagrams, circuit diagrams, and pin out table for the
mV/V circuit, as needed to assist you in wiring your transducer.
4 Pin Bayonet Connector
