Options

Part Number: IRU - 942 _____ - _____ - _____

A B C

APG

Automation Products Group, Inc.

www.apgsensors.com

tel. 888.525.7300

[email protected]

3

A. Output

3

4-20 mA

5

4-20 mA with (2) NPN outputs

9

0-2.5V / 0-5V

9S 0-2.5V / 0-5V

B. Cable/Microconeector

CL Cable (Specify L=length in feet)

Standard 6 feet of cable

M

Micro Connector

IRU-9400 Accessories

Please order separately, by part number.

Description

Part Number

Over Molded Extension

Cables with Foil Shield
4 Conductor
Straight, 2 m

135407-0002

Right Angle, 2 m

135407-1002

Straight, 5 m

135407-0005

Right Angle, 5 m

135407-1005

5 Conductor
Straight, 2 m

135415-0002

Right Angle, 2 m

135415-1002

Straight, 5 m

135415-0005

Right Angle, 5 m

135415-1005

8 Conductor
Straight, 2 m

135423-0002

Right Angle, 2 m

135423-1002

Straight, 5 m

135423-0005

Right Angle, 5 m

135423-1005

Programming Module
RST-3001 (USB - 32 bit only)

125389

RST-3002 (USB - 32 and 64 bit

compatible)

125389-1000

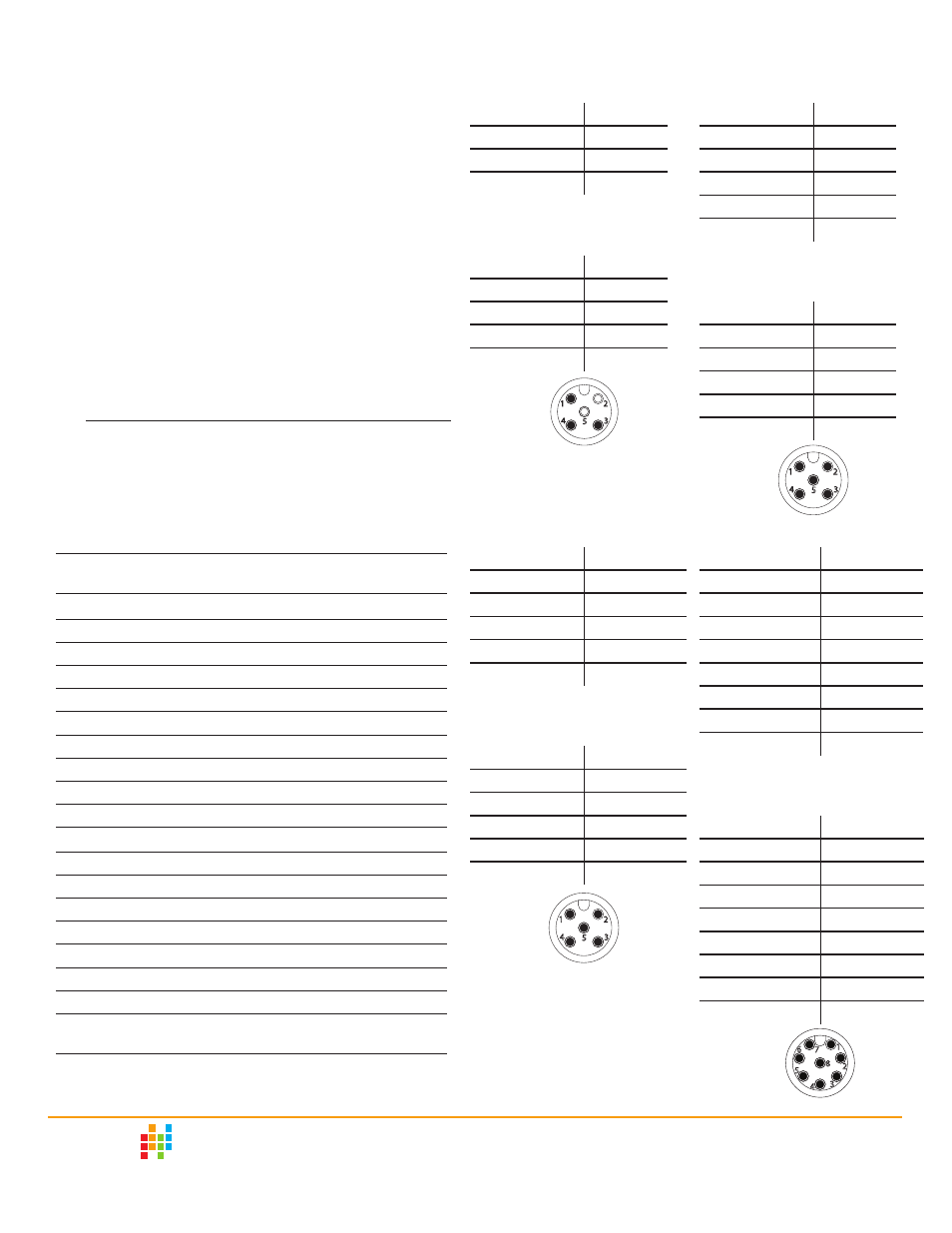

Wiring

2

1

4

3

5

IRU-9423-C
Red

+24 VDC

Black

Ground

White

mA+

IRU-9423-M
1 Brown

+24 VDC

2 White

Not used

3 Blue

Ground

4 Black

mA+

IRU-9429-C
Red

+24 VDC

Black

Ground

White

Voltage Out

Green

Analog Grd

Orange

Excitation

IRU-9429-M
1 Brown

+24 VDC

2 White

Voltage Out

3 Blue

Ground

4 Black

Analog Grd

5 Grey

Excitation

2

1

4

3

5

IRU-9425-C
Red

+24 VDC

Black

Ground

White

NPN 1

Green

NPN 2

Orange

mA+

IRU-9425-M
1 Brown

+24 VDC

2 White

NPN 1

3 Blue

Ground

4 Black

mA+

5 Grey

NPN 2

IRU-9429S-C
Red

+24 VDC

Black

Ground

Orange

Excitation

White

Voltage Out

Green

Analog Grd

Brown

RS-232 Grd

Yellow

RS-232 TX

Blue

RS-232 RX

IRU-9429S-M
1 White

Voltage Out

2 Brown

+24 VDC

3 Green

Analog Grd

4 Yellow

RS-232 TX

5 Grey

RS-232 Grd

6 Pink

RS-232 RX

7 Blue

Ground

8 Red

Excitation

2

1

4

3

5

1

2

3

4

5

6

7

8
