Options
Part Number: IRU - 642 _____ - _____
A B
APG
Automation Products Group, Inc. www.apgsensors.com
tel. 888.525.7300 [email protected]
3
A. Output B. Cable/Microconeector
□
9 0-2.5 V / 0-5 V
□
CL Cable (Specify L=length in feet)
□ 9S 0-2.5 V / 0-5 V (RS-232 option) Standard 6 feet of cable
□ M Micro Connector
IRU-6429 Accessories
Please order separately, by part number.
Description Part Number
Over Molded Extension Cables with Foil Shield
4 Conductor
Straight, 2 m
135407-0002
Right Angle, 2 m 135407-1002
Straight, 5 m 135407-0005
Right Angle, 5 m 135407-1005
5 Conductor
Straight, 2 m
135415-0002
Right Angle, 2 m 135415-1002
Straight, 5 m 135415-0005
Right Angle, 5 m 135415-1005
Programming Module
RST-3001 (USB - 32 bit only)
125389
RST-3002 (USB - 32 and 64 bit compatible) 125389-1000

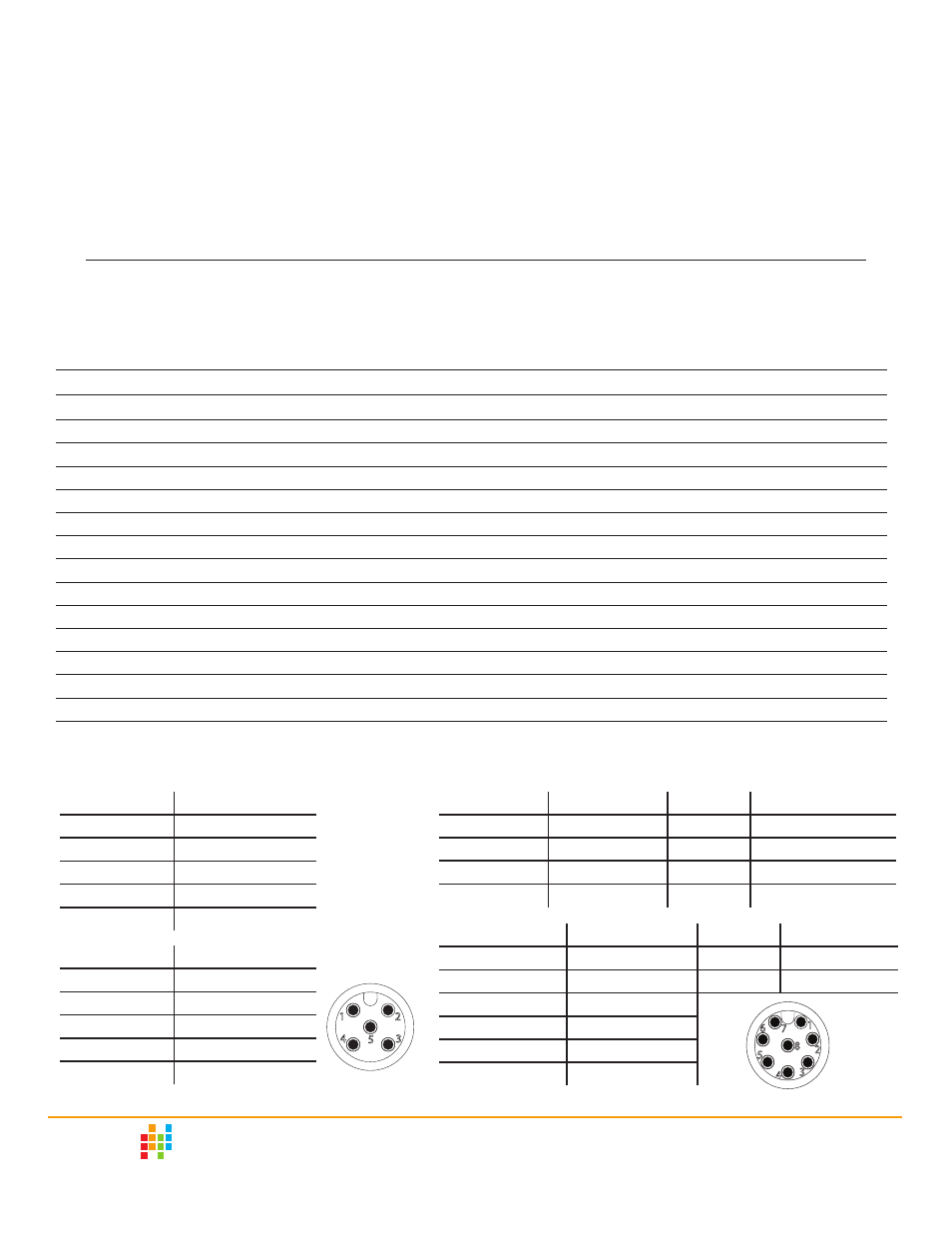

Wiring
IRU-6429
Red
+24 VDC
Black Ground
White Voltage Out
Green Analog Ground
Orange Excitation
IRU-6429-M
1. Brown
+24 VDC
2. White Voltage Out
3. Blue Ground
4. Black Analog Ground
5. Grey Excitation
IRU-6429S
Red
+24 VDC Green Analog Ground
Black Ground Brown RS-232 Ground
Orange Excitation Yellow RS-232 TX
White Voltage Out Blue RS-232 RX
IRU-6429S-M
1 White
V Out 7 Blue Ground
2 Brown +24 VDC 8 Red Excitation
3 Green Analog Ground
4 Yellow RS-232 TX
5 Grey RS-232 Ground
6 Pink RS-232 RX
1
2
3 4
5
6 7
8
2 1
4 3 5
