Allen & Heath 8 XONE:K1 User Guide

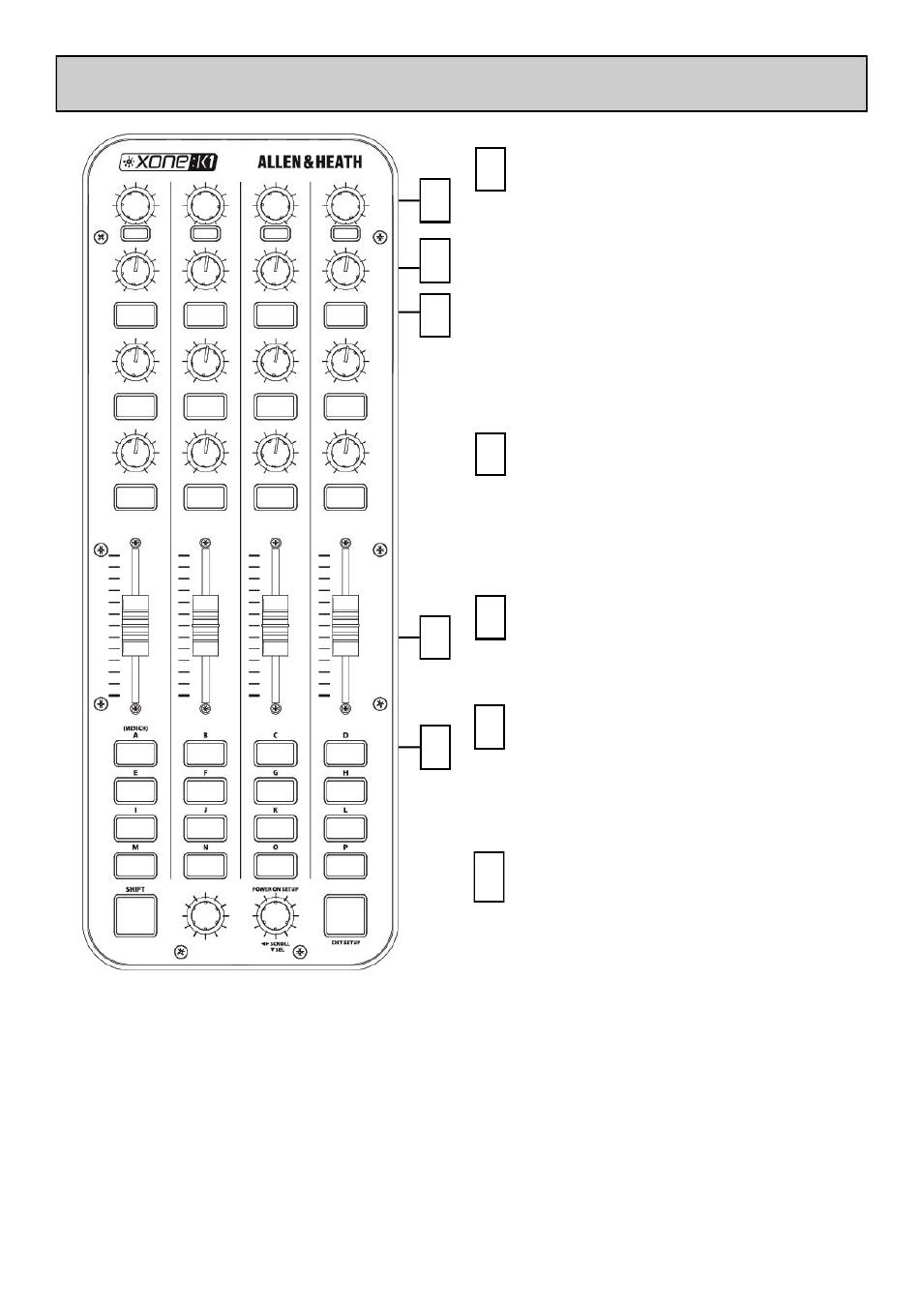

MIDI CONTROLS
1
3
Rotary Encoders
Turning an encoder produces MIDI CC
(continuous controller) messages with a
unique controller number in two’s
compliment binary encoding (this is
relevant to certain DAW applications).
These encoders feature a built in
momentary push switch. Pressing down
on the encoder knob activates the switch
and sends a “Note On” MIDI message,
releasing the switch sends a corresponding
“Note Off” message.
1
Switch Matrix
The switch matrix consists of 16 back-lit
three-colour switches.
5
Pot Switches
Each rotary potentiometer has a switch
with three-colour illumination below it.
3
2
4
5
Linear Faders
Moving a linear fader will send a MIDI
message with a unique CC number and a
control value from 0 (bottom) to 127
(top).
4
Rotary Potentiometers
T h e s e c o n t r o l s a r e s t a n d a r d
potentiometers with end stops. Turning a
pot from left to right will send MIDI
messages with a unique CC number and a
control value from 0 to 127.
2
