12, 16, 24 and 32 channel models.
GL2000-412 10 mono, 2 stereo, 4 groups, 6 aux, 2 stereo returns, L,R, Mono sum
GL2000-416 14 mono, 2 stereo, 4 groups, 6 aux, 2 stereo returns, L,R, Mono sum
GL2000-424 22 mono, 2 stereo, 4 groups, 6 aux, 2 stereo returns, L,R, Mono sum
GL2000-432 30 mono, 2 stereo, 4 groups, 6 aux, 2 stereo returns, L,R, Mono sum
Optional SYS-LINK buss expander system
GL2000-SL1 One kit required per console. User to source interconnecting cables.
SPECIFICATION
INTERNAL OPERATING LEVEL: . -2 dBu
INTERNAL HEADROOM: ............ +21dB channels, +23dB mix to output.
MAX OUTPUTS: ............... balanced +27dBu 600 ohm max load
unbalanced +21dBu 2kohm max load
METERS: ........ L, R ..................... peak reading 12 segment LED
Groups 1-4 .......... peak reading 4 segment LED
Channels ............. peak reading 4 segment LED
PEAK LEDs: ................................ Turn on 5dB before clipping
POWER SUPPLY: ....................... internal
AC Mains input: ............................ range 100V to 240V AC @ 50/60Hz
Set with 4 position selector
Power consumption ...................... 60W max
Mains Fuse rating: ........................ 100-120V AC use T1.6A 20mm
220-240V AC use T0.63A 20mm
0 dBu = 0.775 Volts RMS 0 dBV = 1 Volt RMS
FREQUENCY RESPONSE: 20Hz to 50kHz +0/-1dB
DISTORTION: . THD + Noise at +14dBu 1kHz
Mic in to LR out at +40dB gain ........................... 0.010%
Line in to LR out at 0dB gain .............................. 0.008%
CROSSTALK: . Referred to driven channel at 1kHz
Adjacent channel ............................................... <-94dB
Fader shutoff
................................................ <-90dB
Mute shutoff ................................................ <-90dB
Panpot shutoff ................................................ <-80dB
NOISE: ........... Measured RMS 22Hz to 22kHz bandwidth
Mic input EIN referred to 150 ohm source .......... <-128dB
Line input pre-amp at 0dB gain .......................... <-90dBu
LR output residual noise .................................... <-94dBu 98dB S/N
LR faders '0' no channels routed ........................ <-90dBu 94dB S/N
LR mix noise with 16 channels routed ................ <-84dBu 88dB S/N
Group faders '0' no channels routed ................... <-91dBu 95dB S/N
Group mix noise with 16 channels routed ........... <-84dBu 88dB S/N
THE RANGE
GL2000 CONSOLE
GL2000-412 ........................... width 548mm
GL2000-416 ........................... width 668mm
GL2000-424 ........................... width 920mm
GL2000-432 ........................... width 1160mm

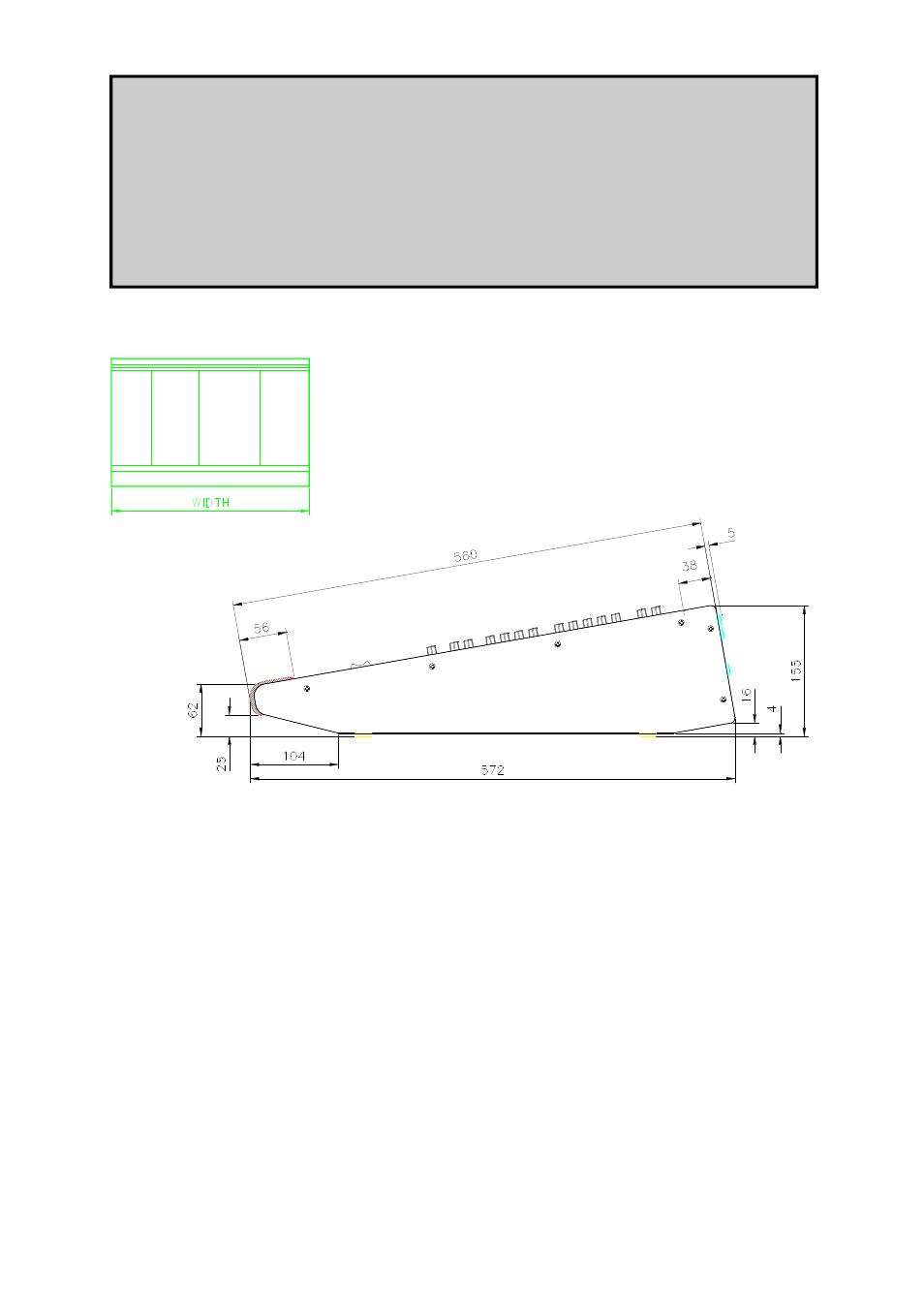

DIMENSIONS
