How to Assign and View VCA and MUTE Groups
The same method is used to assign the VCA and MUTE groups. The groups
are assigned or viewed one at a time. Pressing ASSIGN puts the console
into assign mode. The channel mutes become edit keys to toggle them in or
out of the groups. The ASSIGN and selected group master keys flash to
warn that the console is in this mode. You can also view the group
assignments using the quick ‘press and hold’ VIEW function without the risk
of accidentally overwriting the settings.
C
ASSIGN
VIEW
M
A
S
T
E
R
M
A
S
T
E
R
M
A
S
T
E
R
M
A
S
T
E
R
M
A
S
T
E
R
M
A
S
T
E
R
M
A
S
T
E
R
M
A
S
T
E
R
M
U
T
E
M
U
T
E
M
U
T
E
M
U
T
E
M
U
T
E
M
U
T
E
M
U
T
E
M
U
T
E
MUTE GROUP MASTERS
VCA GROUP MASTERS

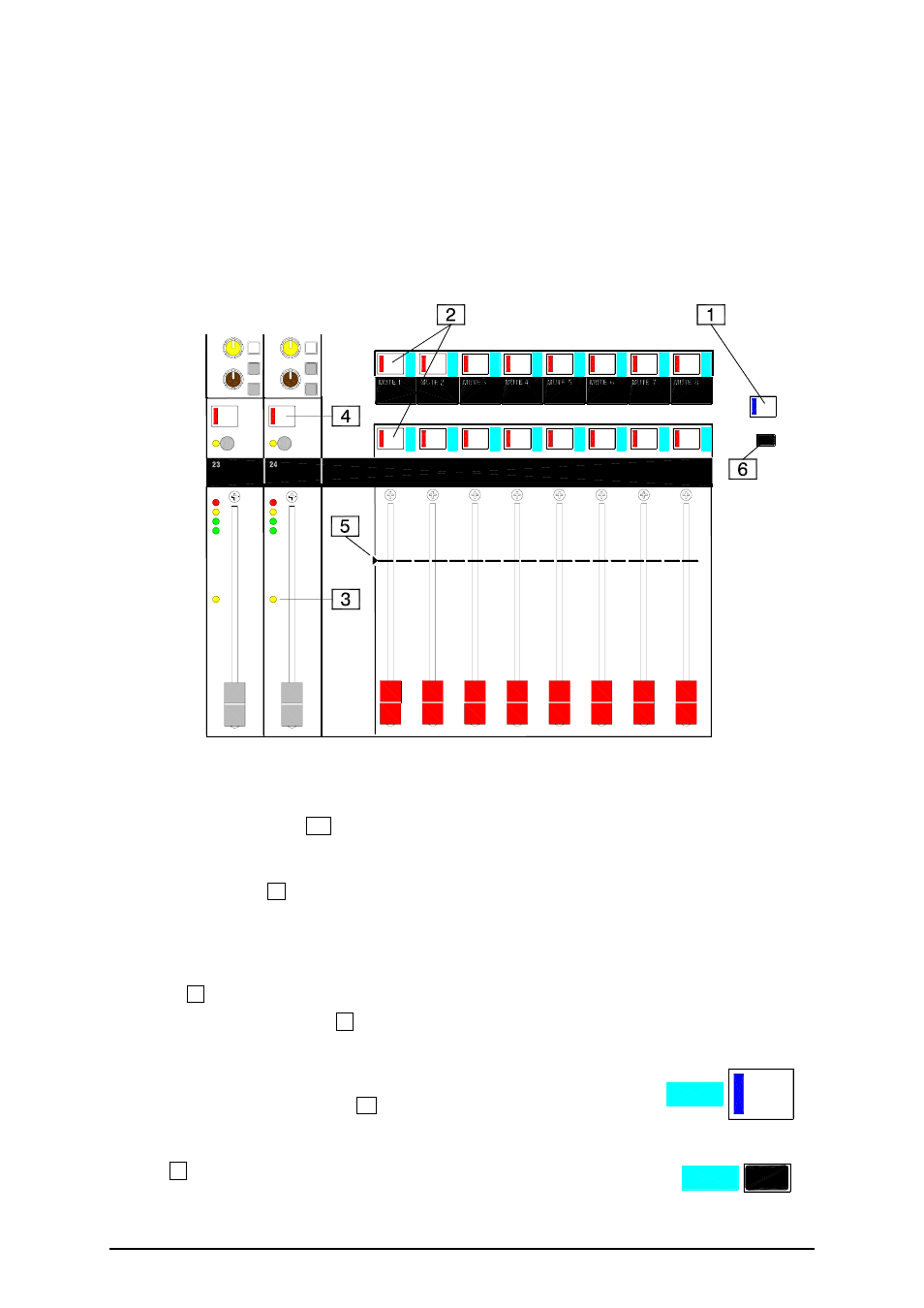

To ASSIGN a Group
1 Press the ASSIGN key 1 . Its blue LED
flashes.
2 Now press one of the VCA or MUTE group
master MUTE keys 2 . This selects the group
to assign. Both the mute and the assign keys
flash.
3 View the current group assignments on the
channel GROUP ASSIGNED LEDs next to the
faders 3 .
Press and Hold with GRP MUTE
View on channels
Assign MUTE and VCA groups:
Select using GRP MUTE
Assign using CH MUTES
ASSIGN
VIEW
4
Press the channel MUTE keys 4 to toggle the
channels in or out of the group. This does not
affect the channel mute status which remains
as it was before assign mode was entered.
5 Press another master MUTE key 2 to select
a different group to edit.
6 When you have finished, press the ASSIGN
key 1 again to exit assign mode.
To VIEW a Group
1 Press and hold down the VIEW key.
2 While holding down VIEW press and release
the master MUTE key of the group you wish to
check.
3 View the current settings on the channel
GROUP ASSIGNED LEDs next to the faders.
The channel mute function is not affected.
4 While holding down VIEW press each group
master MUTE key in turn to view the
assignments.
5
Release VIEW when you are finished.
Note: Brief instructions
are printed on the panel
next to the ASSIGN and
VIEW keys to remind the
operator.
