Page 4

13005 rev 0004

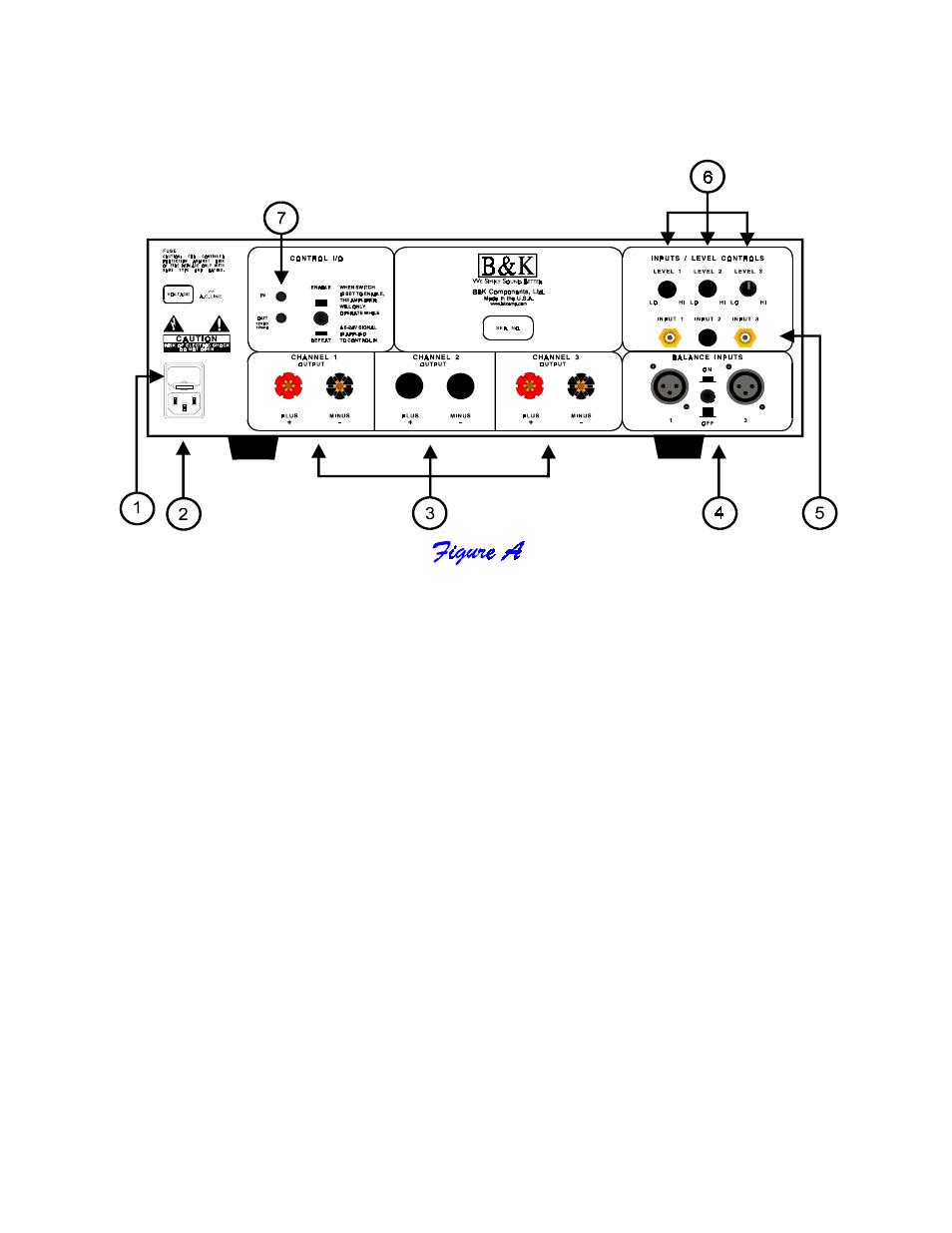

Rear Panel View

1. AC fuse holder

5. RCA input (unbalanced)

2. AC Input receptacle

6. Level controls**

3. Speaker outputs

7. Amplifier control muting input/output

4. Balanced Inputs

** OPTIONS AVAILABLE FOR THE Reference 220M AMPLIFIER

Rear panel description

1. AC fuse holder -

Holds the AC Line fuse. This fuse is an 12 Amp / 250 Volt
Slow Blow fuse. Replace with same type and value fuse
only.

2. AC Input receptacle - For attaching the supplied AC power cord to the

amplifier.

3. Speaker outputs -

For connecting the speakers to the amplifier. Explained
further on page 7.

4. Balanced inputs -

For connecting Balanced signal patch cables (XLR).
Explained further on page 8.
