ALLEN & HEATH GL2800M service manual AP7177 Issue 2 Page - 6 - of 13
Mono fader PCB
assembly 003-613
Mix master fader
PCB assembly
003-614
Attention
Alps faders
shown.
Some units may
have Panasonic
faders.
See page 9-13

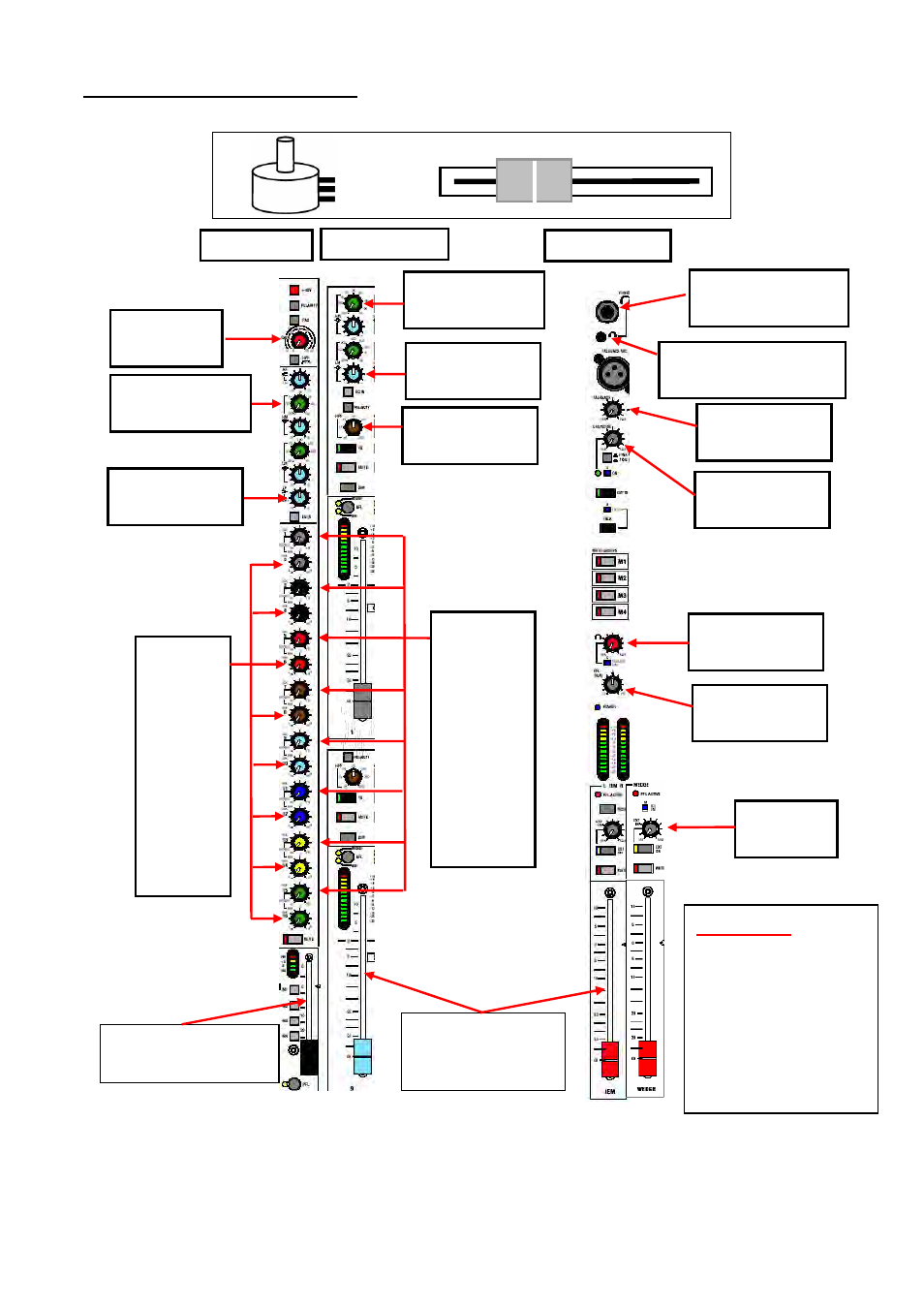

POTENTIOMETERS & FADERS
Channel Mix Master Master 1/2
Gain
AI3838
EQ boost/cut
AI8004
EQ frequency
AI8005
Aux
2
4
6
8
10
12
14
16
AI6718
Aux
1
3
5
7
9
11
13
15
AI8006
EQ frequency
AI8005
EQ boost/cut
AI8004
HPF
AI8009 Talkback
AI8004
Small headphone
3.5mm AL5323
Big headphone
AL5903
Osc/noise
AI8111
EXT IN
AI8007
Headphone
AI8007
PFL trim
AI8004
