STEP 1
Determine mounting location of ALL700RM motor assembly. The ALL700RM may be mounted on an
angle, vertically, horizontally or upside down, if secured properly. See Diagram A.
Never install the ALL700RM where the ceiling height and total cable run through the pulleys exceeds
one meter less than the exact length of winch cable. For example, if the ALL700RM is equipped with a
65ft.(19.8m) cable do not install the ALL700RM with a ceiling height and total cable run that is greater
than 60ft(18.3m). This could cause the cable to become reverse wrapped on the winch. An ALL700RM
installed with a reverse wrapped cable could cause the chandelier to fall, which could cause death,
personal injury, and/or property damage. Winch cable length can be found on the ALL700RM product
sticker, shipping box, and the front page of these installation instructions.
STEP 2
Determine mounting location of chandelier pulley assembly. Chandelier pulley assembly must be mounted
directly above where chandelier will hang. See Diagram B.
Never mount the chandelier pulley assembly off plane or unlevel in a remote installation. This could
cause the chandelier to fall, which could cause death, personal injury, and/or property damage. The
winch cable must hang plumb through the center of the top contact plate on the ceiling box.
Level
Upside Down Lef
t A
ngle
Right A
ngle Ver
tic
al

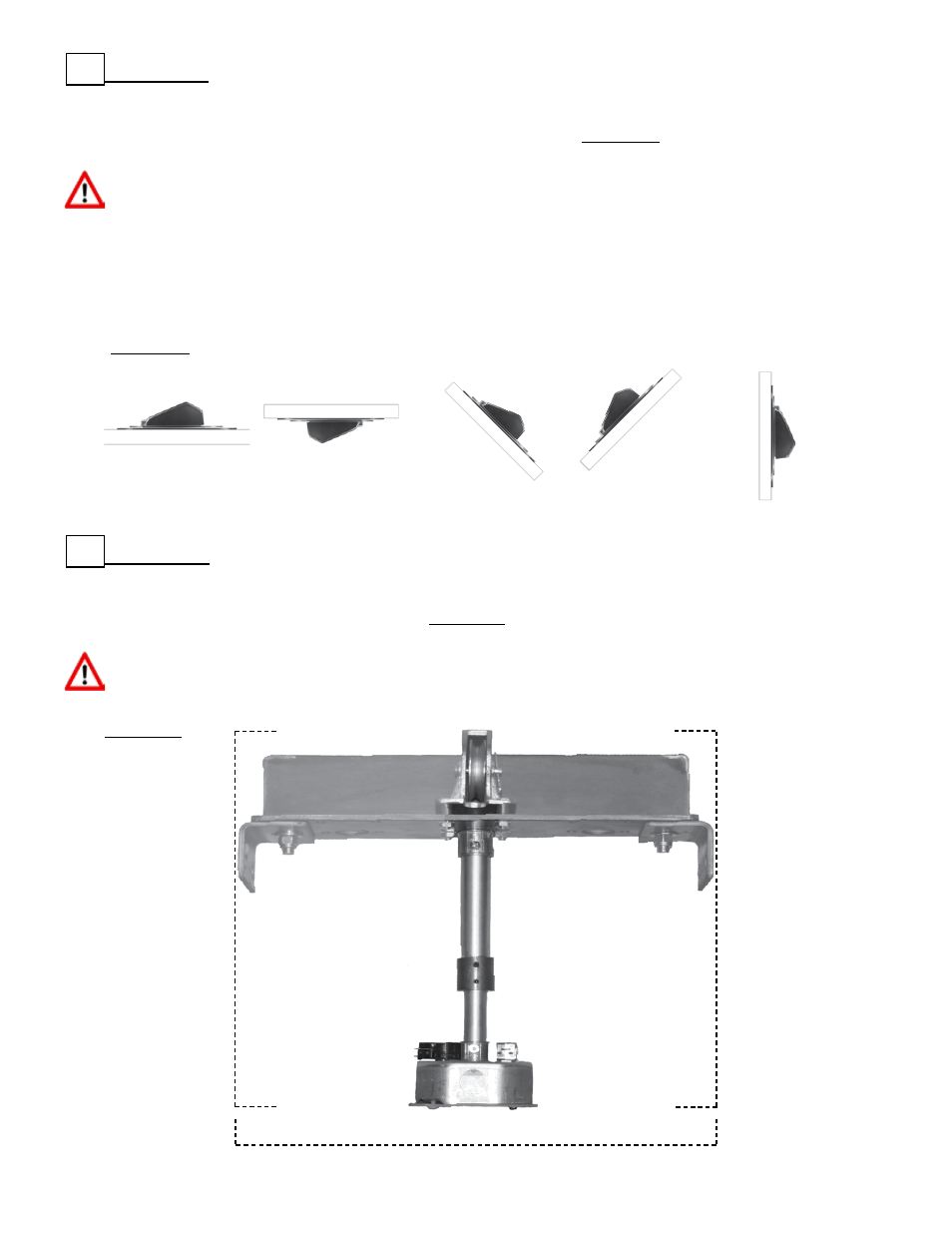

Diagram A
Diagram B
Chandelier Pulley
Assembly Height is
Adjustable
From 30.5cm to 43.2cm
If Ordered With Conduit
Cut to Minimum
Chandelier Pulley
Assembly Height is
Adjustable
From 21.6cm to 25.4cm
34.9cm Minimum
40.6cm Maximum
