Step 11, Step 12 – Aladdin Light Lift ALL300-CM User Manual
Page 7
STEP 11
Turn off supply power before wiring ALL300. Turn off motor switch in square box. Wire motor switch
with 110V wiring. The 110V motor feed must be kept separate from 110V light switch leg. Keep motor
and light neutrals separate. The motor neutral is white and 14 gauge. See Diagram G.
Never wire the ALL300 improperly. Make sure electricity is turned off when installing and/or
performing maintenance on the ALL300. Improper wiring and/or electricity could cause death,
personal injury, and/or property damage.
STEP 12
Turn off supply power before wiring ALL300. Turn off light switch in square box. Wire light switch with
110V wiring. The 110V light switch leg can not be used as motor feed. Keep light and motor neutrals
separate. The light neutral is white and 12 gauge. If wired properly, a dimmer may be used. Wire a two-
circuit light package on seperate phases for lights (2 hots - 1 neutral). See Diagram G.
Never wire the ALL300 improperly. Make sure electricity is turned off when installing and/or
performing maintenance on the ALL300. Improper wiring and/or electricity could cause death,
personal injury, and/or property damage.

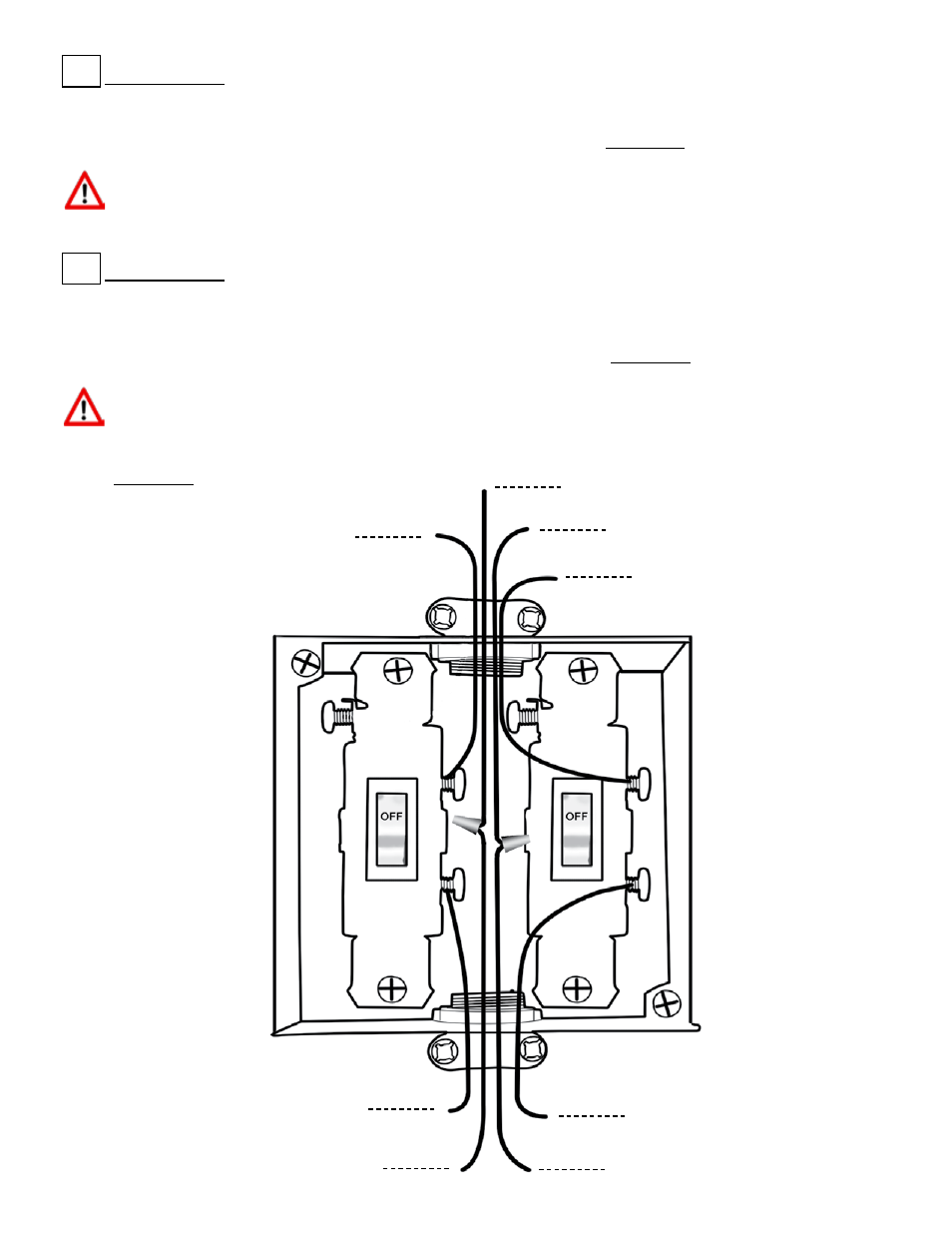

12 Gauge Light Neutral
14 Gauge Motor Neutral
14 Gauge Motor Hot
12 Gauge Light Hot
110V House Hot
For Motor
110V House Neutral
For Motor
Neutral Light
Switch Leg 110V
Hot Light Switch
Leg 110V
Diagram G
Light
Motor
