80

function, you can send the command defined by yourself, linked with the external sensor
input or with the built-in motion detection function to HTTP server. HTTP client setting
menu is composed of two tabs, General and Alarm sending.

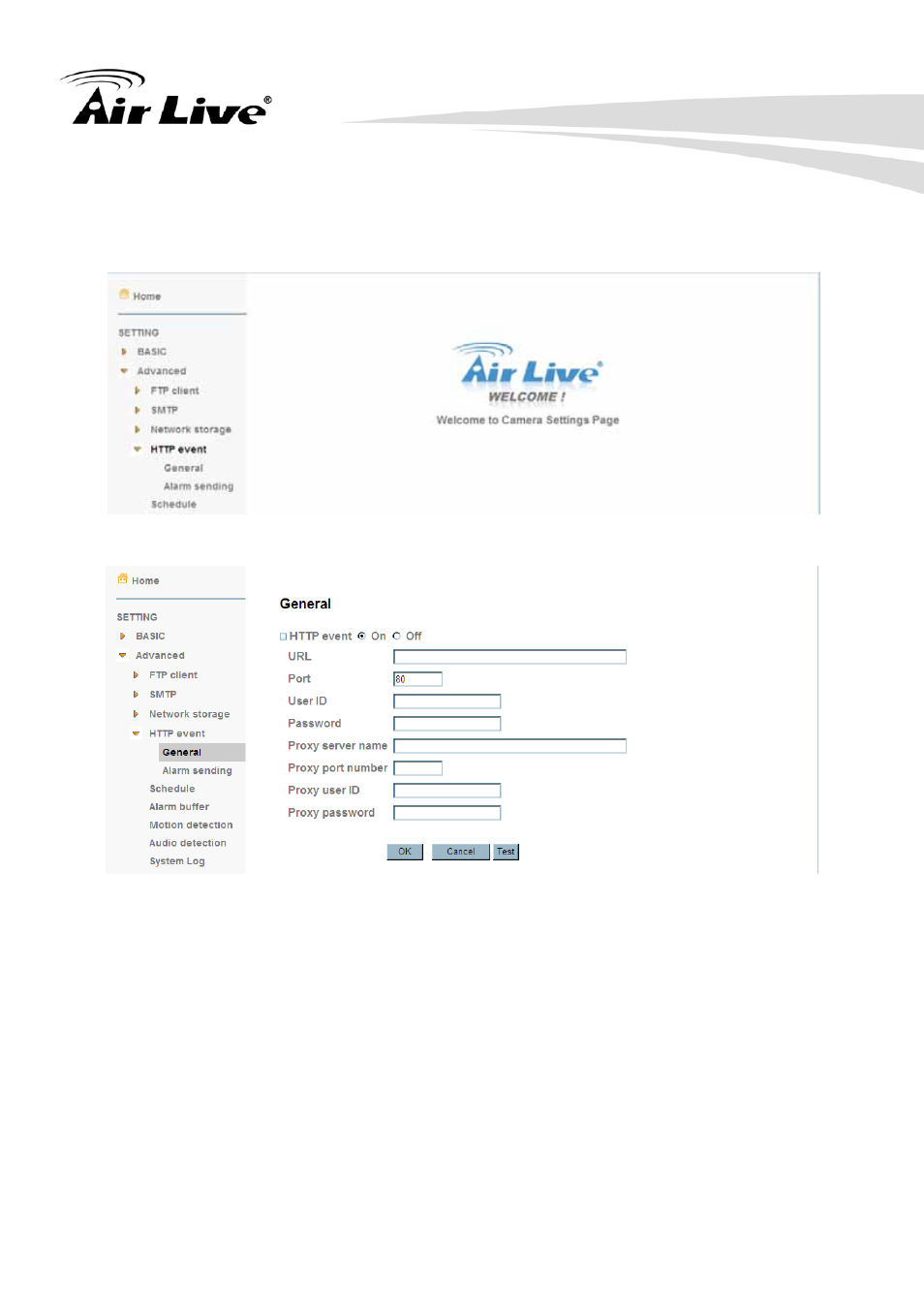

9.4.1 General

HTTP event:

Set up the HTTP server URL, port, User ID, Password, and Proxy server settings.

For example: URL: 192.168.1.7/cgi-bin/operator/ptzset

Note: The setting of URL should be the same as CGI.

9.4.2 Alarm Sending

Set to send the command with connection to the alarm detection by the external sensor
