AirLive POE100CAMv2 User’s Manual

1. Node: is the serial number of this sensor of the current device.

2. Location: give a meaningful name to this sensor.

3. Pattern: There are two kinds of sensor: General and Critical. General sensor can be turned on or off by

system administrator while critical sensor can not.

4. Default Status: can be normal open or normal close depend on the sensor type.

5. Enable: check this to activate the sensor.

6. Click [OK] to save the settings and leave this dialog.

7. Click [Apply] to save the settings of this sensor, and stay in this dialog to set the other sensor nodes.

Remove Sensor

Click [Remove Sensor] to remove the selected sensor. You will be asked to confirm the deletion.

Breach

The alarm actions are the same as those for LAN camera, with two additional alarm actions: [Enable DI] and

[Disable DI]. Please refer to section 7.6.8.1.2 – Image Alarm for detail setup procedures.

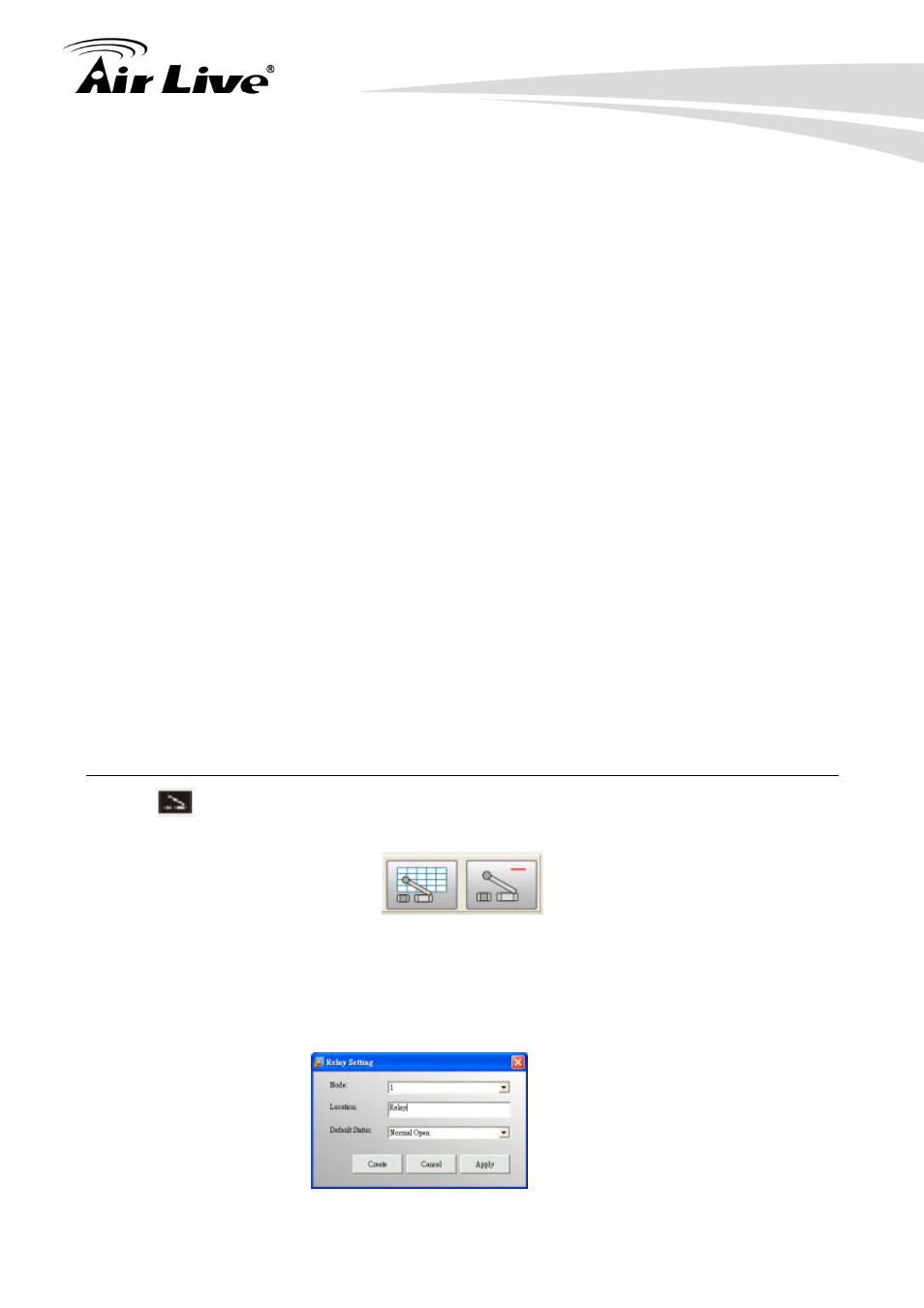

Relay (Digital Output)

Click the

button in the System Setup tree, the toolbar becomes:

The button on the right will only appear if you select a configured relay.

Relay Settings

Click [Relay Setting] button and the Relay Setting dialog will appear, as shown below:
