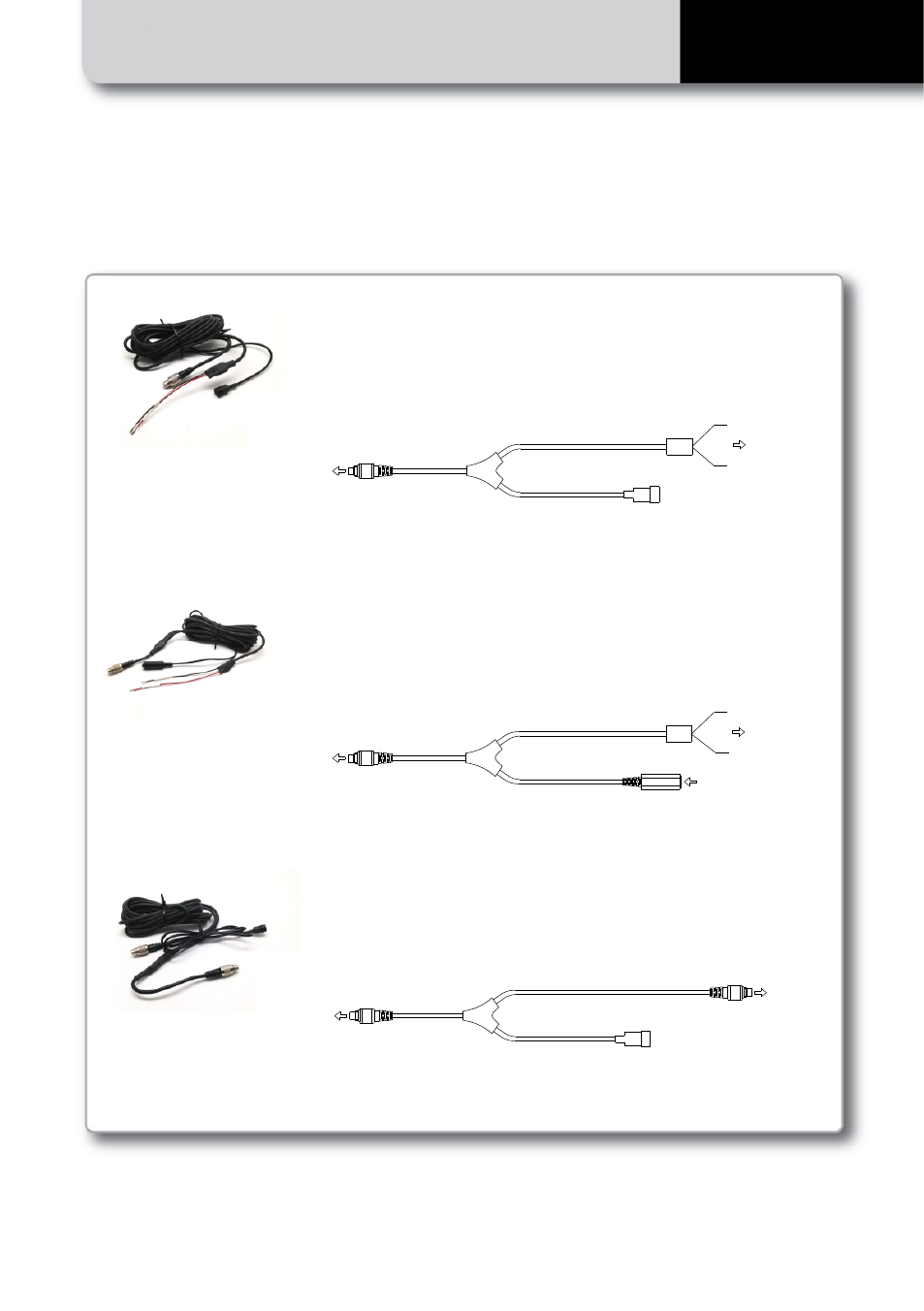

SMARTYCAM GP HD SPARE PARTS
V02566310 – External power + Integrated 3.5 female Jack
for external microphone harness - L=2mt
for external microphone harness - L=4mt
V02566320 – External power + Integrated 3.5 female Jack
V02566100 – CAN Bus + Integrated external microphone harness - L=2mt
V02566240 – CAN Bus + Integrated external microphone harness - L=4mt
V02566080 – External power + Integrated external microphone harness
L=2mt
L=4mt
V02566230 – External power + Integrated external microphone harness
7c male
712 binder connector
Black wire
Red wire
SmartyCam GP HD
SmartyCam GP HD
SmartyCam GP HD
EXT POWER
integrated
microphone
7c male
712 binder connector
Black wire
Red wire
3.5mm female
jack connector
EXT MICROPHONE
EXT POWER
7c male
712 binder connector
integrated
microphone
5c male
712 binder connector
CAN BUS
