OPC6012/6015 21
© ads‐tec GmbH • Raiffeisenstr.14 • 70771 Leinfelden‐Echterdingen
6 Interfaces
6.1 Interface configuration
Interface IRQ Adress
COM1 4 3F8h
Pos: 26 /Datentechnik/Schnittstellen/Spannungsversorgung/Spannungsversorgung für VMT60xx-Serie @ 2\mod_1260450284020_6.doc @ 6853 @
6.2 24V DC Power Supply
The supply voltage is provided via a lead‐through terminal including a screw connection (Phoenix Contact

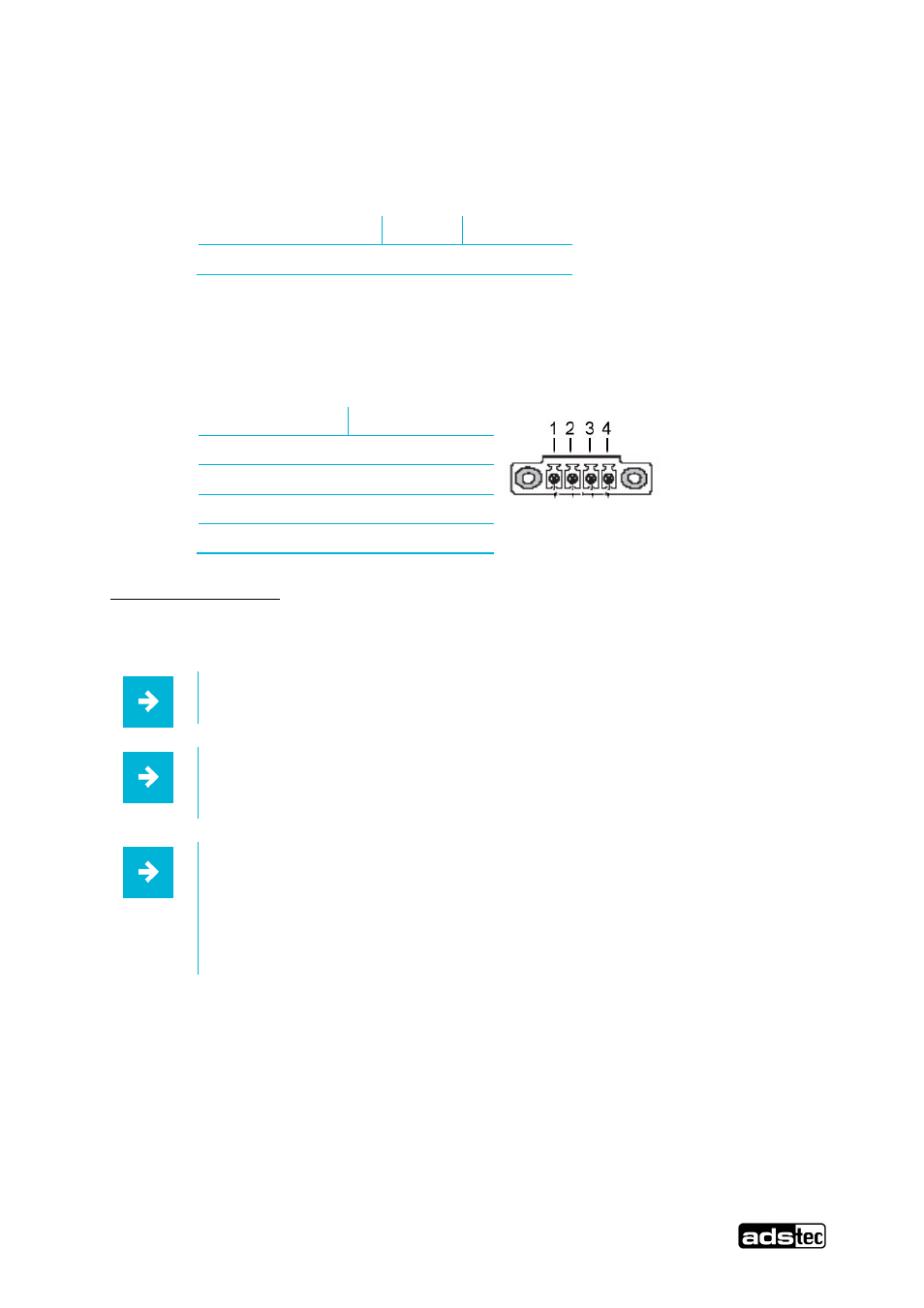

COMBICON MC 1,5/4‐STF3.81). (The figure shows the socket inside the device).
Pin‐Number Signal‐Name
1 PE
2 0 V DC
3 NC
4 24V DC
Technical Data of the input
• Input voltage: 19…29V DC
• Max. Input voltage: 7A(10ms)
Note:
The power supply can be protected with a slow‐blow fuse of up to 4A.
Note:
The typical power consumption of this device is indicated in the "Technical details"
chapter.
Note:
If the case is connected with earth potential at the provided PE contact (e.g. by connecting
the PE contact with the device plug), the electrical insulation is no longer given. This also
applies if the device is installed by using a metal retainer clip.
If you want to have the device electrically insulated from the power supply, you
have to use a method of installation that ensures appropriate insulation.
