19

Briggs & Stratton Power Products Home Generator System

Owners Manual

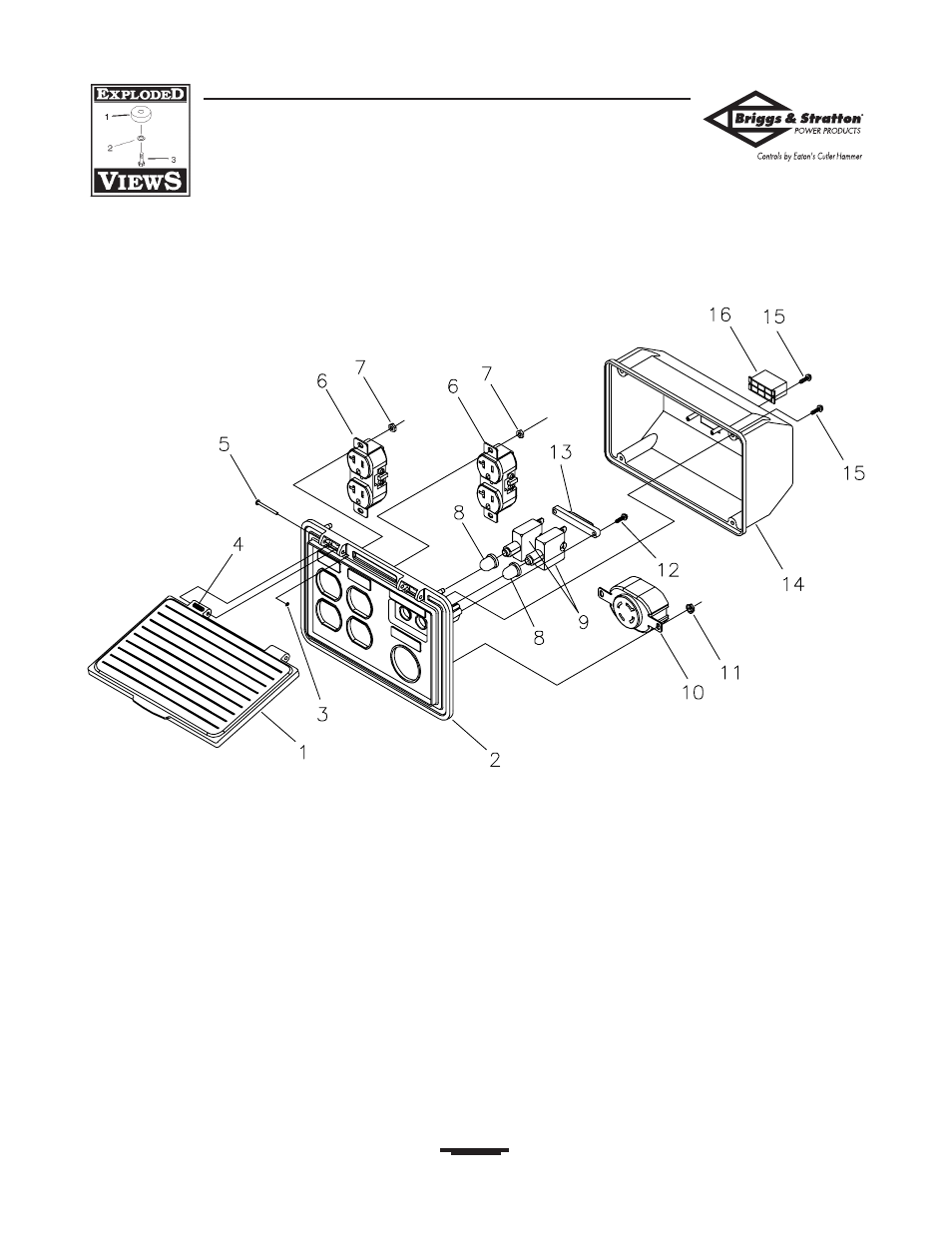

EXPLODED VIEW AND PARTS LIST – CONTROL PANEL

Item Part #

Qty Description

1

188914GS

1 COVER, Lid, Control Panel

2

188889GS

1 CONTROL PANEL, Compact

3

189167GS

2 CLIP, Hinge Pin Retainer

4

189182GS

2 SPRING, Hinge, Pin

5

189166GS

2 PIN, Hinge, Cover, Compact

6

68759GS

2 OUTLET, 120V, 20Amp, Duplex

7

189165GS

4 NUT, Palnut, Pushnut, 5/32

8

84198GS

2 CAP, Circuit Breaker

9

75207GS

2 CIRCUIT BREAKER

10

43437GS

1 OUTLET, 120/240 Locking, 30A

11

189164GS

2 NUT, Palnut, Pushnut, 3/16

12

84543CGS

2 SCREW, Phillips, Head 3.5 x 18

13

93857GS

1 BAR, Retaining

14

188890GS

1 COVER, Back, Control Panel

15

82308GS

6 SCREW, Self Tapping, STC 3x

16

22694GS

1 HOUSING, Receptacle
