wheeled trimmer

4

Section

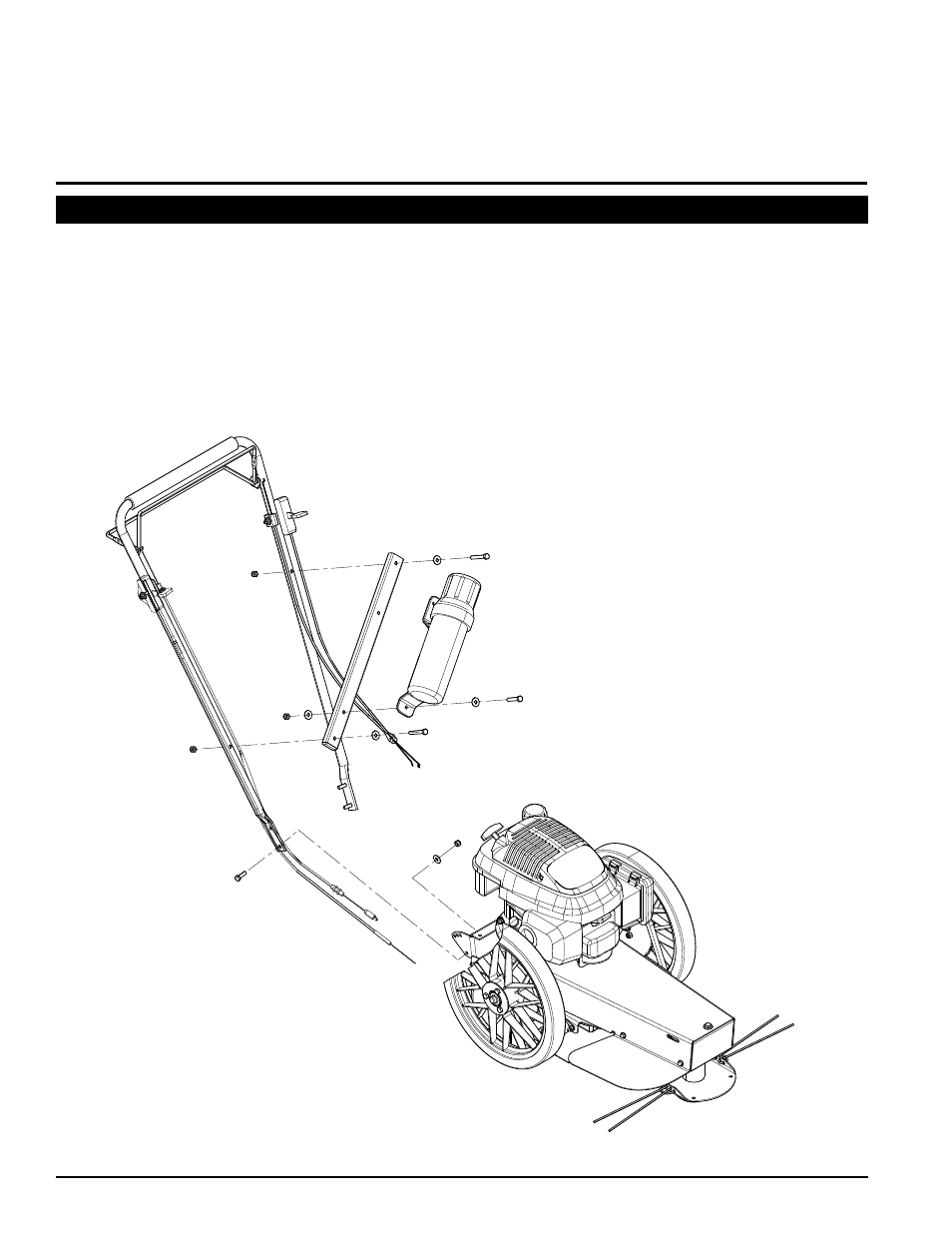

Remove the trimmer and handlebar from the shipping box and pallet.

1.

The manual container is partially assembled on one side of the handlebar. If necessary, loosen the bolt securing

2.

the manual container to the handlebar. Rotate the container and attach the remaining end to the opposite side of

the handlebar using one 5/16" x 2-1/4 bolt, washer and nut. DO NOT TIghTEN BOLTS AT ThIS TIME.
Stand handlebar upright. Align the bottom hole on the handlebar with the bottom hole on the handlebar support

3.

channel located on the trimmer and attach with two 5/16" x 1" bolts, washers and nuts. DO NOT TIghTEN BOLTS

AT ThIS TIME.

2

aSSEmbLY

2.1 INSTaLL THE HaNdLEbaR
