Instruction Sheet
Instructions
SUBJECT: trImmer lIne holder
KIt # 77445-00
FITS MODELS: wt24 SerIeS
trImmer
Pn 77446-00
rev. 901912
INSTALLATION
1. drill a 1/4" hole 2" below and 1/8" to the front of the trim-
mer from the bolt for the handlebar adjustment retainer.
Then drill a second 1/4" hole 5 1/4" below the first. See
figures 1 and 2. The template on the right can be used
to help drill the holes in the correct positions.
2. Press line tube clips onto trimmer handle support so that
the peg goes into the drilled hole.
3. Press line holder tube into tube clips and adjust so that
the tube is about 1/4" from the top of the trimmer body.
Cut line 20" long, approximatly tube length plus 1". Line holder tube
will hold up to 12 pieces of line.
Before inspecting or servicing any part of this machine,
shut off power source, disconnect spark plug wire from
spark plug and make sure all moving parts have come
to a complete stop.
WARNING
2"
5-1/4"

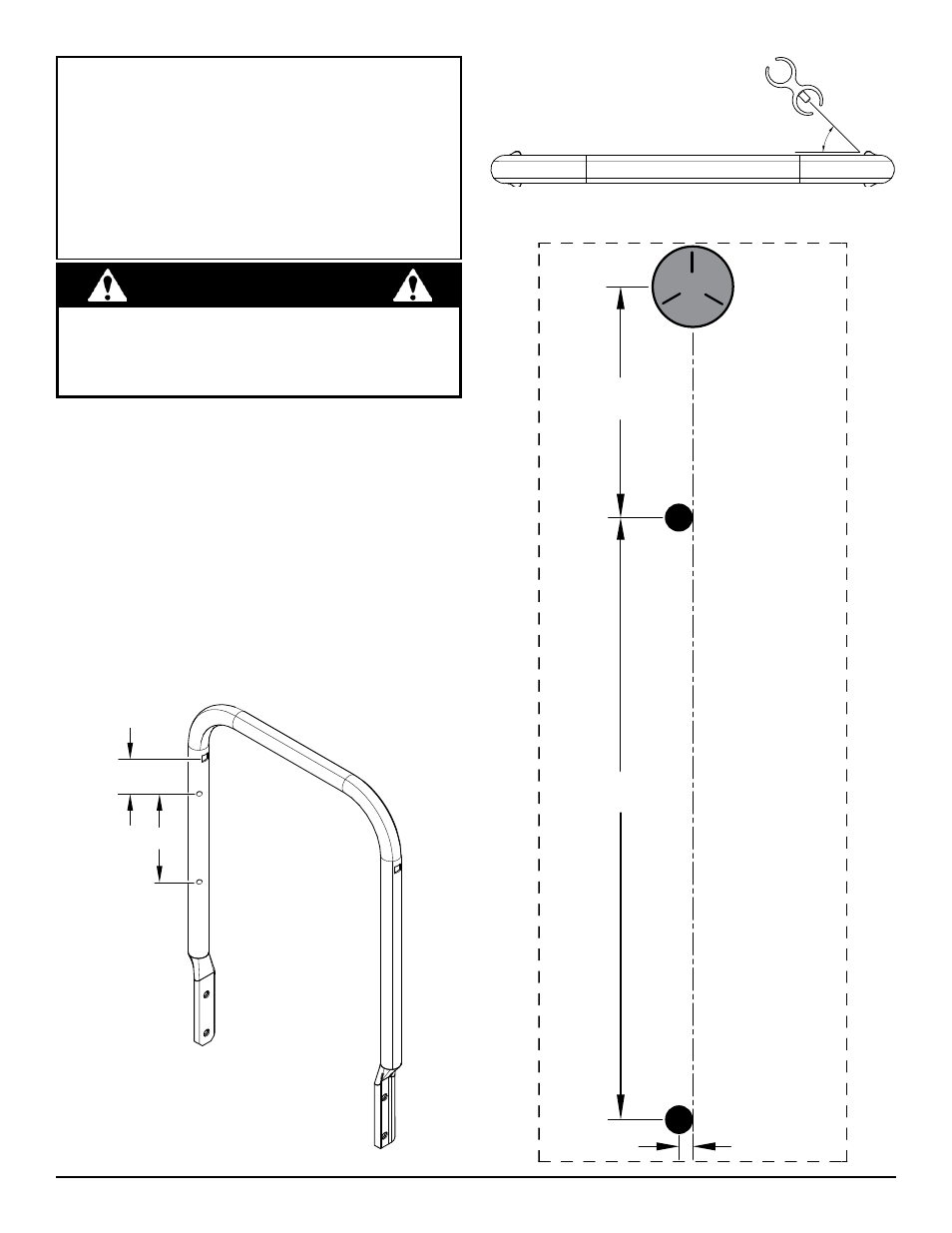

Figure 1, Trimmer Handle Support
Figure 2, Trimmer Handle Support and Line Tube Clip
2"
5 1/4"
1/8"
