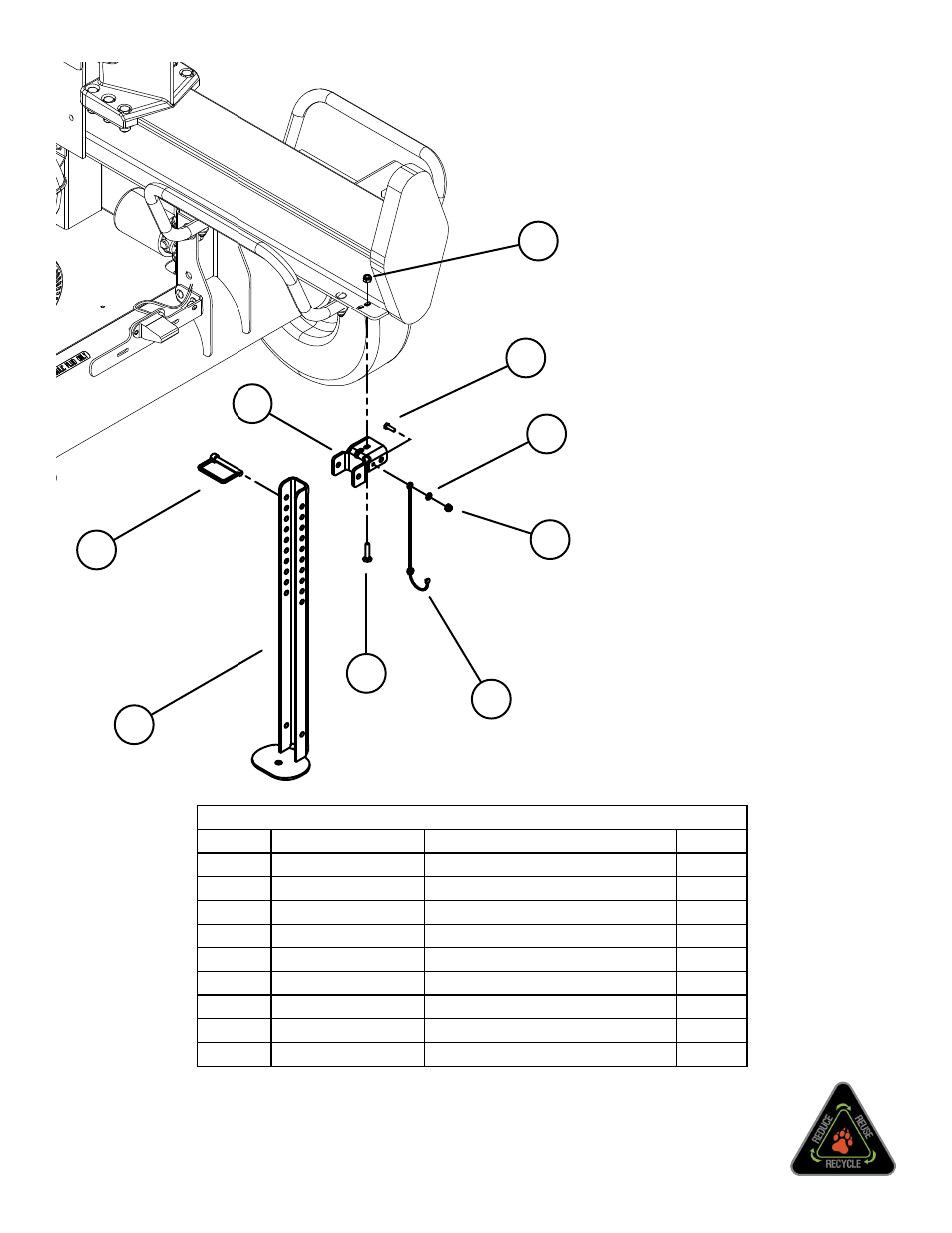

76273-00, LOG SpLITTER SUppORT KIT

ITEM

pART NUMBER

DESCRIpTION

QTY

1

0936-0025-00

WASHER, 1/4” SAE FLAT

1

2

12530

LANYARD, NYLON

1

3

15001

BOLT, 1/4 x 3/4” HEX HD

1

4

15355

NUT, 1/4” NYLOCK

1

5

16808

PIN, 3/8 x 2-3/4” SNAPPER

1

6

15301

BOLT, 5/16 x 1” CRG

2

7

15356

NUT, 5/16” NYLOCK

2

8

76271-12

BASE, LEG SUPPORT

1

9

76272-12

LEG, SUPPORT

1

1

2

3

4

5

6

7

8

9

INSTALLATION

1. Bolt the leg support base underneath

the log splitter with two (2) 5/6 x 1" bolts

and nuts as shown.

2. Bolt the nylon lanyard to the support

base with the 1/4 x 3/4" hex head bolt,

1/4" washer, and 1/4" nut.

3. Attach the support leg to the support

base with the snapper pin and adjust

as necessary.

4. Secure the snapper pin with the nylon

lanyard.

OpERATION

• Use the support base to keep the log

splitter from tipping over while splitting

logs.

• Always put the support leg up as high as

possible before towing the log splitter.

• Remove the support leg before rotating

the splitter into the vertical position to

split logs or store.

EChO BEAR CAT

www.bearcatproducts.com

237 NW 12th Street, West Fargo, ND 58078-0849

Phone: 701.282.5520 • Toll Free: 800.247.7335 • Fax: 701.282.9522

E-mail: [email protected][email protected]
