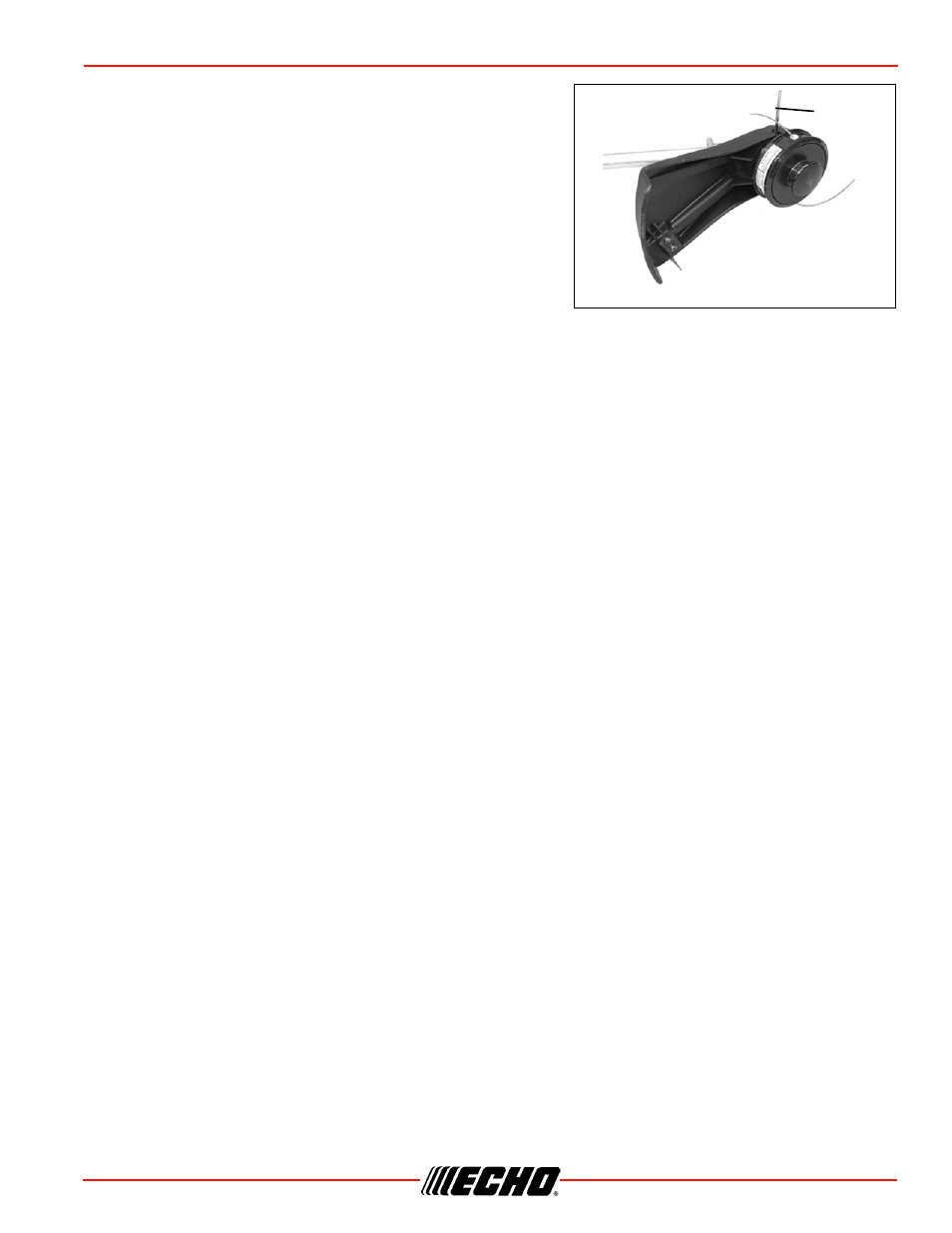

Remove Nylon Line Head

Note: Do not disassemble nylon line head.

1. Align locking hole in upper plate with notch in edge of gear

housing and insert head locking tool (C).

2. Remove line head by turning it clockwise until head is

completely off of shaft.

3. Remove head locking tool (C).

C
