99944200553 MAINTENANCE
X7702093405 17
© 08/2013 ECHO Inc.

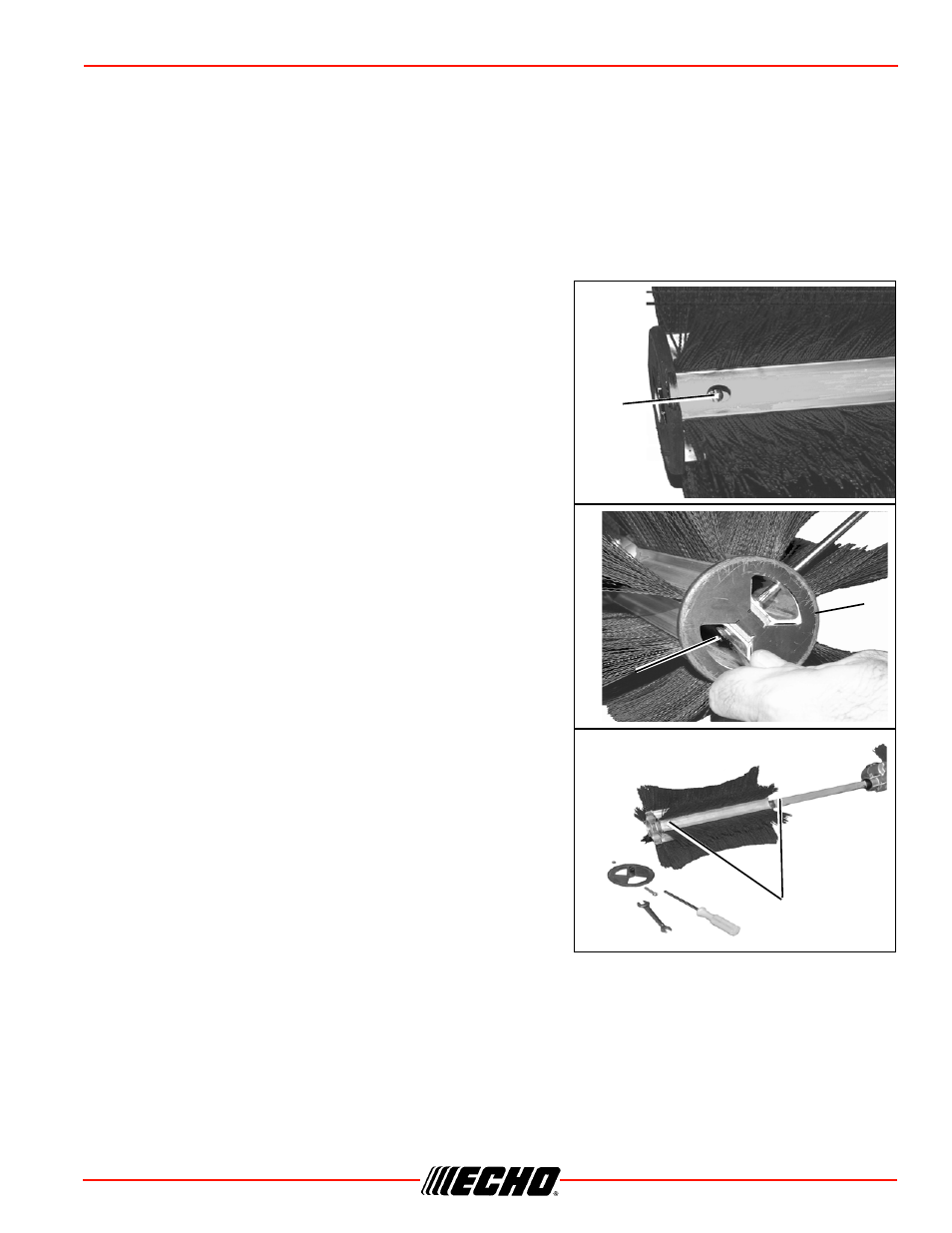

Brush Replacement
Level 1.
Brushes that are broken off, deformed, or worn to within 25.4 mm (1 in.) of the brush holder drum should be
replaced for best sweeping efficiency.
1. Locate brush holder access hole (A) near outer drum end.
2. Hold 8 mm nut (B) from turning with open end wrench
inserted through drum holder cap. Loosen and remove bolt
and lock nut with cross head screwdriver through holder
access hole (A).
3. Remove drum cap (C). Slide brush holder drum off square
axle shaft.
4. Install new brush holder drum, aligning hole (A) in drum axle
with axle shaft hole.
5. Install drum cap, aligning cap holes with axle shaft and
brush holder drum holes.
6. Install bolt and locknut. Tighten securely.
Parts
Required: Standard Brush Assy .018 in. P/N
99944200551 QTY (2) Optional Brush Assy
.028 in.
P/N 25020225661 QTY (2).
A
B
B
C
A
