Echo PE-225 Serial S78712001001 - S78712051200 - Manual (Page 9)

P
ower
e
dger
o
Perator
'
s
M
anual
9
c
ontents

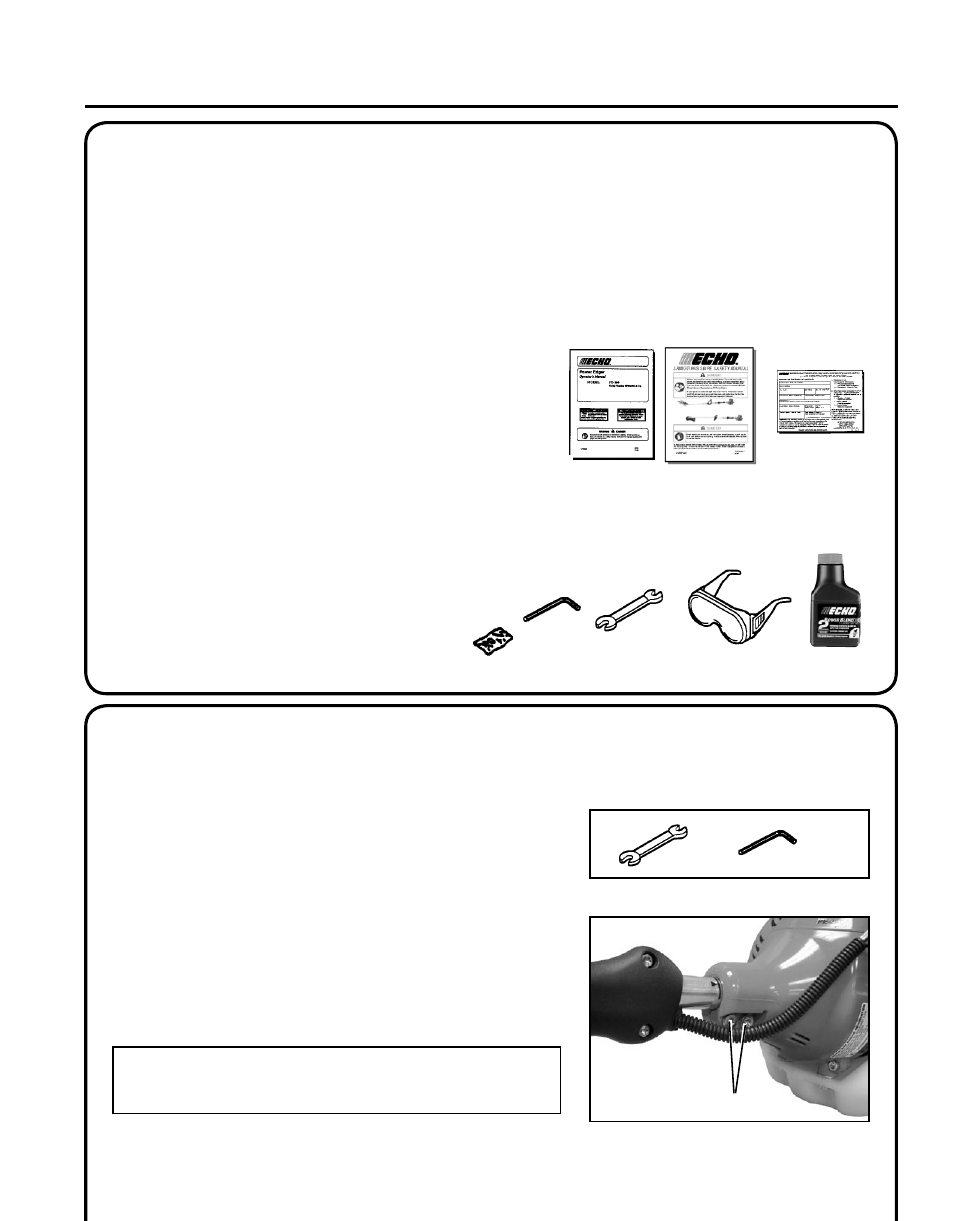

The ECHO product you purchased has been factory pre-assembled for your convenience. Due to packaging restrictions,
some assembly may be necessary.
After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing
parts. Use the contents list to check for missing parts.
* Some Echo units may be factory pre-assembled. The nylon line head, plastic debris shield, and mounting hardware
shown in the contents list are pre-assembled to the unit. Assembly tools are not supplied with these units. The front
handle may need to be re-positioned for comfortable operation.
___ 1, Power Head
___ 1, Drive Shaft Assembly
___ 1, Plastic Bag (Co-Pack)
___ 1, Operator's Manual
___ 1, Safety Manual
___ 1, Warranty Registration Card
___ 1, Echo Power Blend X TM 2-stroke oil sample
___ 2, Split pin
*__ 1, Torx T27 L-Wrench
*__ 1, 8 x 10 mm Spanner Wrench
___ 1, Safety Glasses
a
ssembly
drIve shaft
/
power head
Tools Required: Torx T27 L-Wrench, 8 x 10 mm Spanner Wrench
Parts Required: Power Head, Drive Shaft Assembly
1. Stand engine on a level surface.
2. Remove vinyl cap from drive shaft.
3. Loosen the two bolts (A) at drive shaft end of engine.
4. Carefully fit drive shaft assembly to engine, making sure that
inner drive shaft engages into clutch mount.
nOTE
Rotate the drive shaft housing until edger housing is in line with the
engine.
5. Tighten bolts (A).
a
