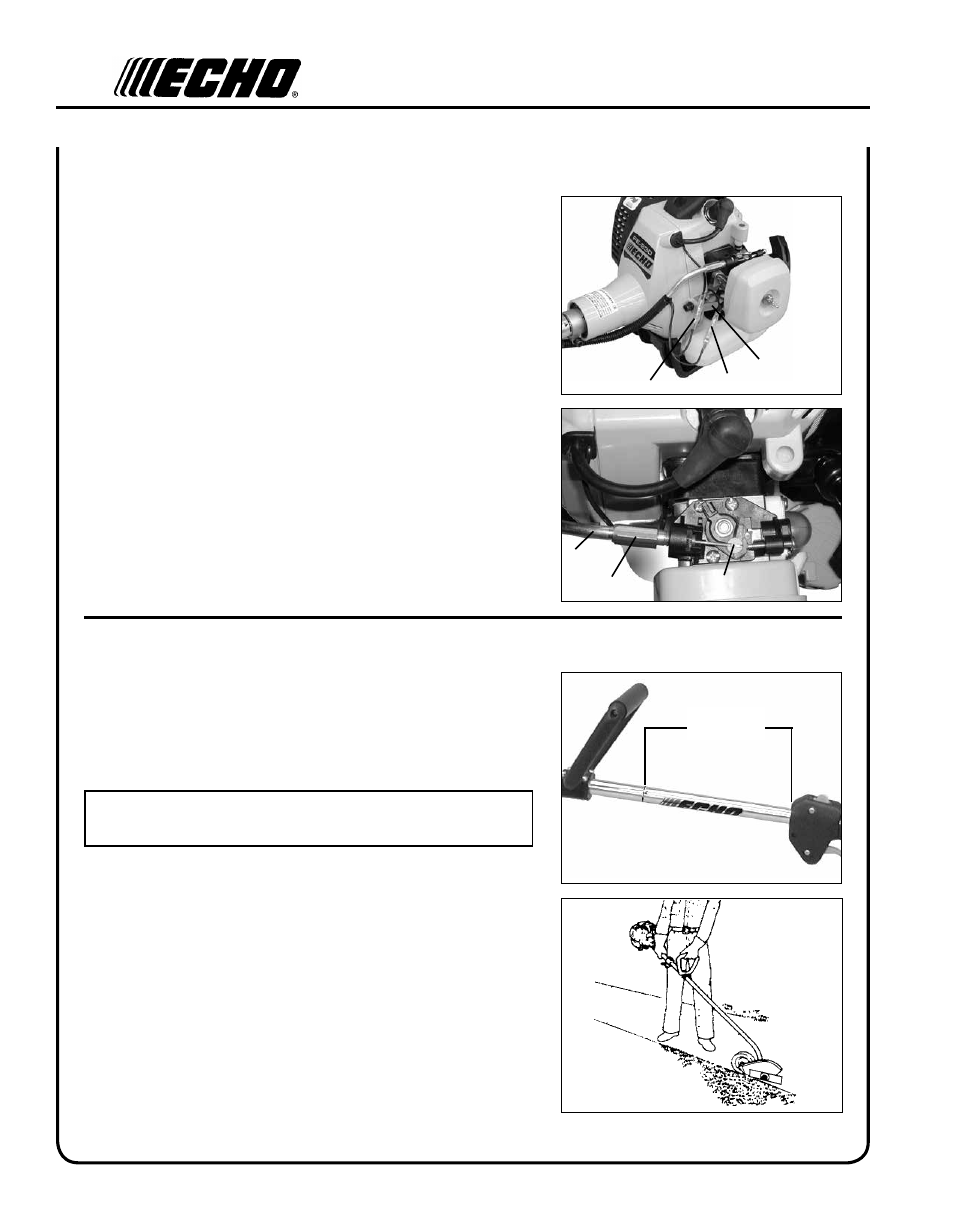

throttle lInkage and IgnItIon leads
1. Connect ignition stop leads (A) and (B).
2. Place throttle linkage (C) through adjustment fixture (D) and install
wire end into large carburetor throttle swivel hole (E). Check
throttle for freedom of movement and that wide open throttle / low
idle extremes are adjusted properly. The throttle linkage must be
adjusted by moving the adjustment fixture (D). Consult with your
Echo Dealer for correct adjustment procedure.
3. Bundle and secure ignition leads against engine housing with clip
(F).
F
front handle
Parts Required: Front Handle, Lower Bracket, 4 - 5x35 mm screws
nOTE
Label shows minimum spacing for front handle location.
1. Assemble front handle and bracket loosely to drive shaft.
2. Position front handle in comfortable operating position and tighten
screws.
mIn
spacIng
