Page 9 6" & 8" Bear Cat Chipper Operator’s Manual
4.4 HYDRAULIC FEED OPERATION MODELS 72620 & 74824
1. Start the chipper engine. Bring the chipper up to operat-
ing speed. See "Operation" section for starting, opera-
tion, and stopping instructions.
2. Engage the hydraulic feed by moving the control arm as
shown below. The feed rate increases as the arm is
moved.
Operation

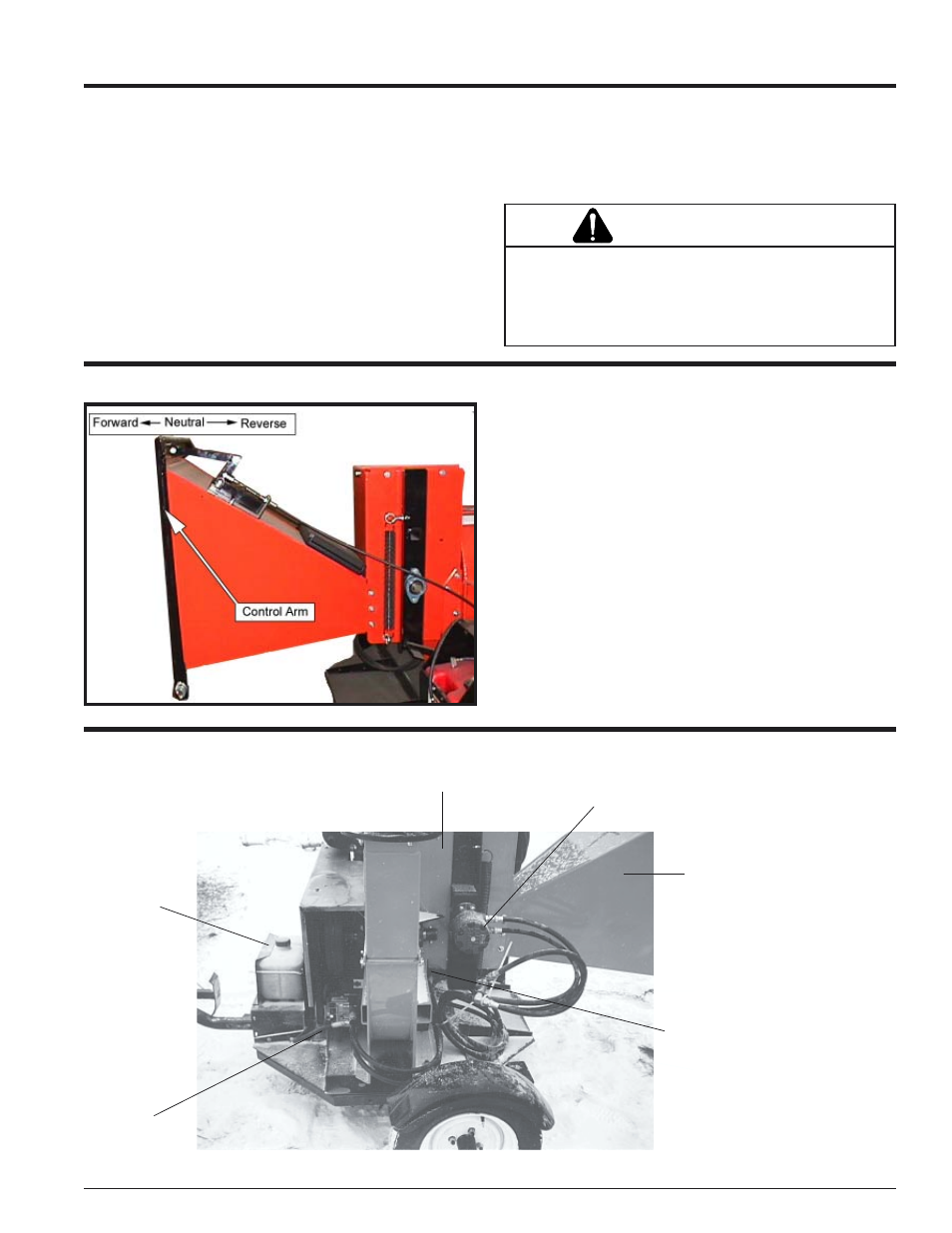

4.5 CONTROL ARM OPERATION MODELS 72620 & 74824
4.6 HYDRAULIC FEED COMPONENT LOCATIONS MODELS 72620 & 74824
WARNING
Please read and follow all safety instructions in this
manual. Failure to operate the chipper in accordance with
the safety instructions MAY RESULT IN PERSONAL IN-
JURY!
3. If the chipper jams, reverse the feed by moving the con-
trol arm in the reverse direction. Remove the branch
and rotate it before reinserting it into the chute again.
Hydrostatic
Pump
Reservoir
Hydraulic
Motor
Chipper
Chute
Roller Assembly
Crossover
Relief
Valve
Fig. #4
Fig. #3
