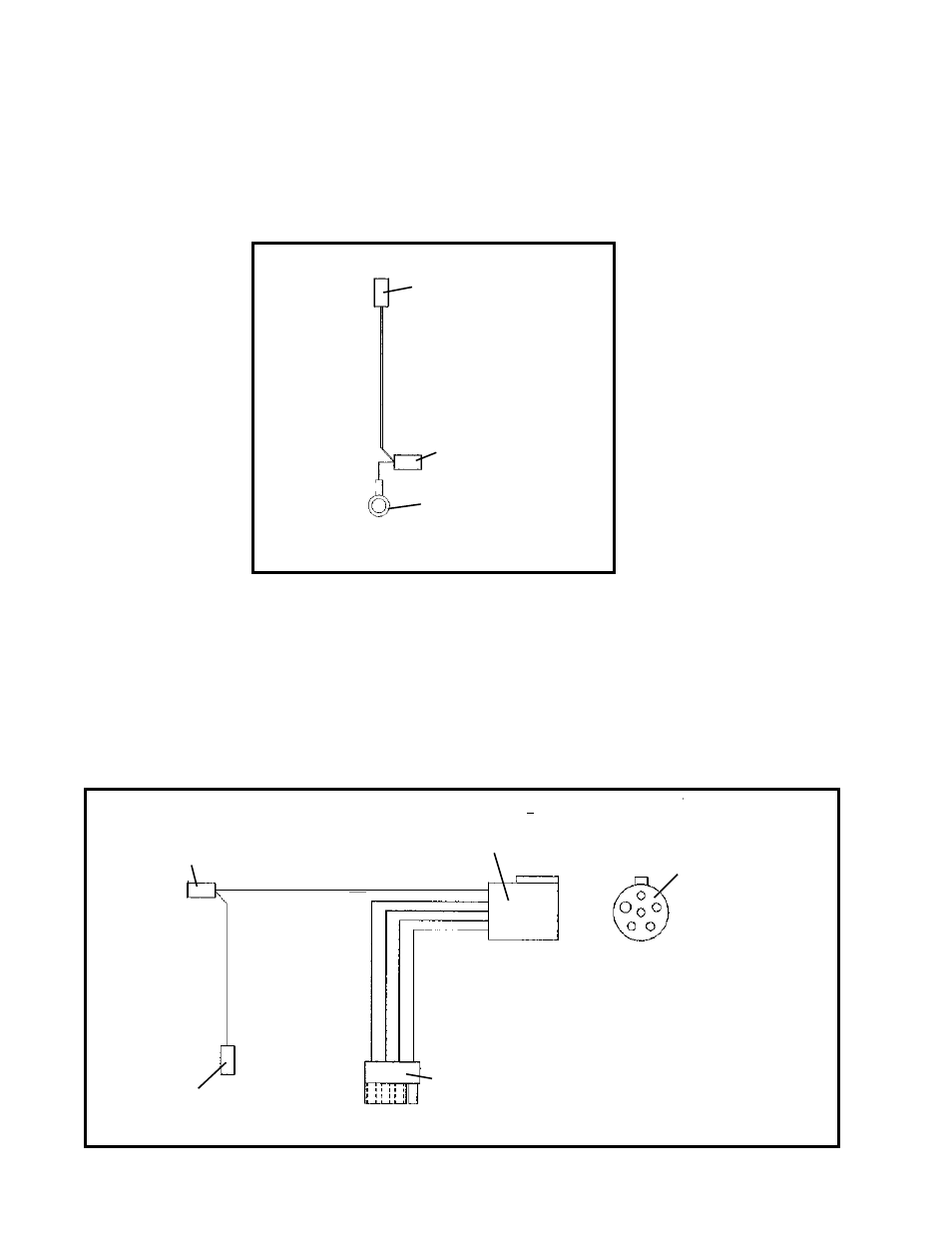

Brake Wiring Instructions

1. Connect the Butt Splice on the Ground Wire Harness to one lead of the Magnet Lead Assembly

on each Electric Brake. Refer to Figure 4.

2. Attach the Ground Wire Harness Ring Terminal to a 3/8” stud on the Chipper Frame.

Refer to Figure 4. Tie the Harness Wire to an axle beam or the frame.

Butt Splice to Magnet

Lead Assembly on Brake

Butt Splice to Magnet

Lead Assembly on Brake

Ring Terminal to 3/8”

Stud on Chipper Frame

Figure 4

3. Connect the Butt Splice on the Wire Harness to one lead of the Magnet Lead Assembly on each

Electric Brake. Refer to Figure 5.

4. Plug the Wire Harness Four Pole Flat Connector into the existing Four Pole Flat Connector on

the Chipper Lights. Refer to Figure 5.

5. Plug the Six Pole Plug on the Wire Harness into the Wire Connection of a Brake Controller

equipped vehicle pulling the Chipper. Refer to Figure 5.

Butt Splice to Magnet Lead

Assembly on Electric Brake

Butt Splice to Magnet Lead

Assembly on Electric Brake

Four Pole Flat Connector to

existing Four Pole Flat Con-

nector on Chipper lights.

Six Pole Plug to Wire Harness

on vehicle pulling Chipper

End View of Six

Pole Plug

Figure 5
