Instruction Sheet 3

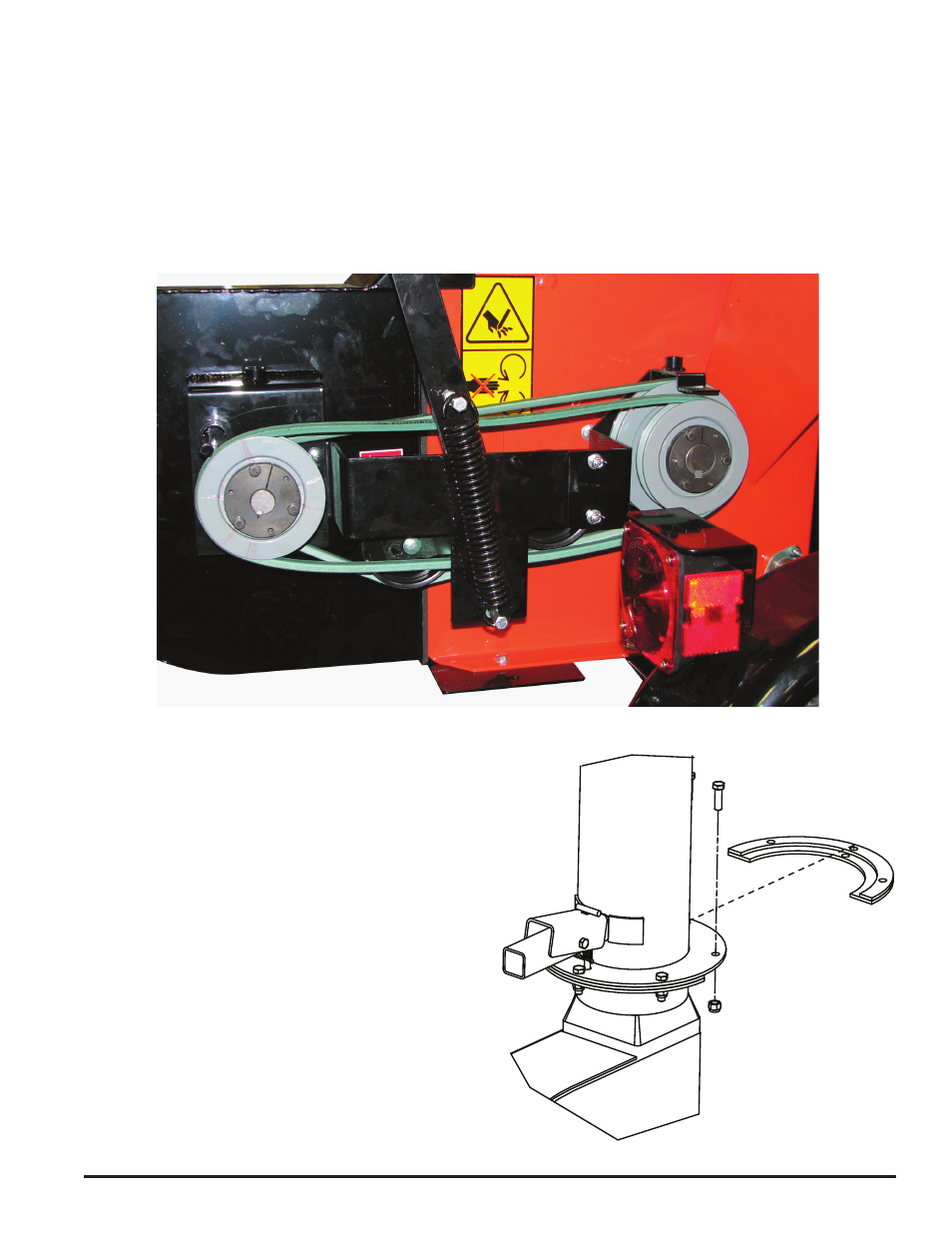

INSTALL DISChARGE TUBE
Half of the mounting clamp is already attached to the
discharge tube.
Slide the discharge tube over the mounting flange on 1.
the blower housing and tighten the bolts to secure it.
Attach the second half of the clamp to the tube and
2.
flange with 3/8 x 1-1/4" bolts and nuts.
Rotate the tube 360 degrees and lock it in place with
3.
the handle to make sure it is mounted correctly.
COMpLETED pULLEy INSTALLATION
Slide the pulley onto the rotor shaft so approximately 1.8" of the pulley extends past the end of the shaft. Mount the 8.
outside belt on the 5.2" pulley and connect it to the 5" blower pulley. Align the small pulley to the 5" blower pulley
with a straightedge. Tighten the 5.2" pulley securely.
Attach the front belt guide to the top rotor shaft bolt. Replace nut and tighten securely.
9.
Insert the rear belt guide into the hole next to the blower pulleys. Adjust the guide for a 3/16" clearance from the top 10.
surface of the belt and tighten.
