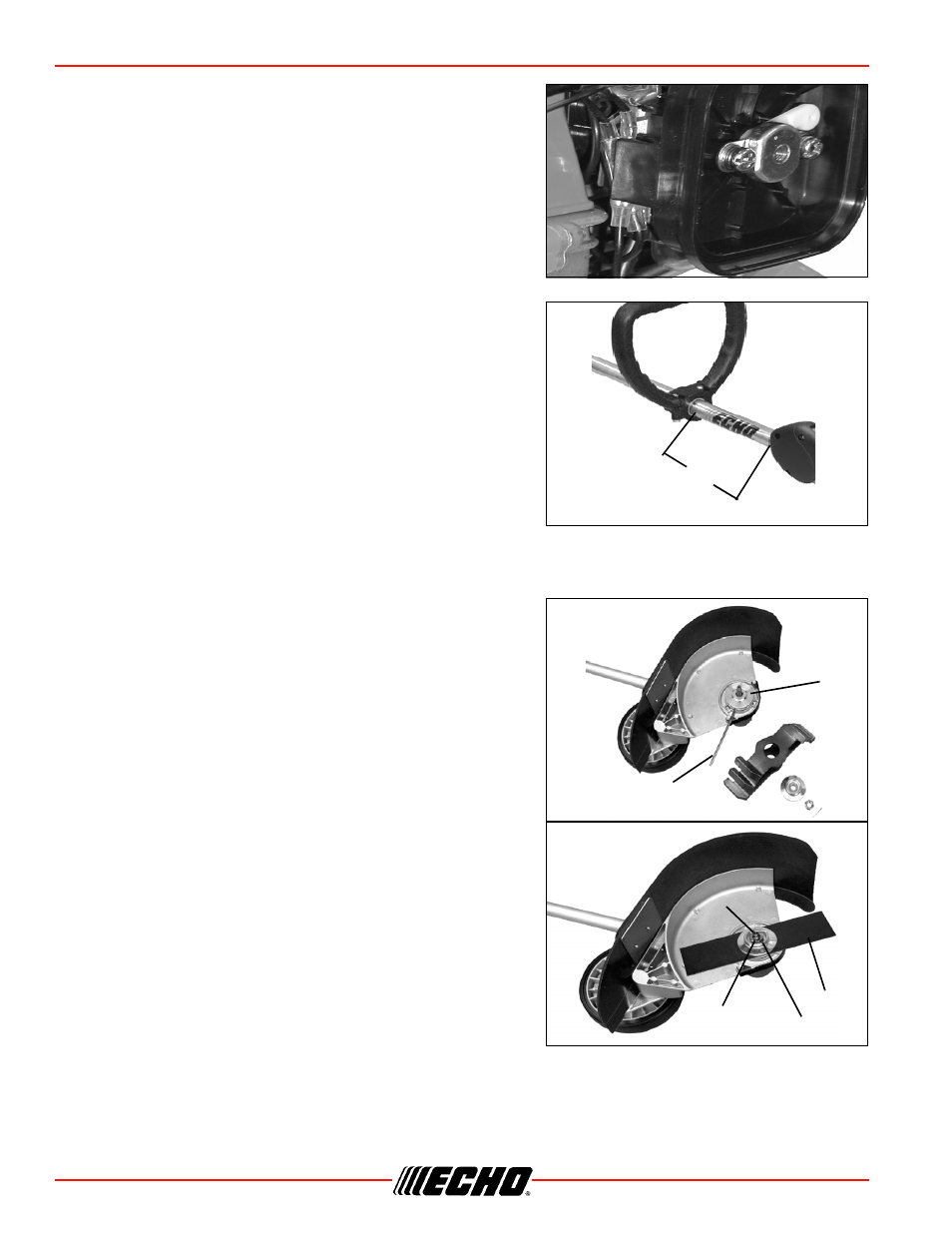

Page 14: Assembly brd-280

14
X7502311208
© 1/2014 ECHO Inc.
ASSEMBLY
BRD-280
6. Gather ignition wires and position behind air filter case.
7. Install air filter and cover.
Support Handle
1. Position support handle in comfortable operating position
and tighten screws.
Note: Label shows minimum spacing for support handle
location.
Edger Blade Installation
1. Remove bed redefining blade as shown in “Blade
Replacement” Section. Discard used split pin.
2. Do not remove inner blade adapter (A) or locking tool (B).
3. Install and center edger blade (C) on inner adapter .
4. Install outer adapter (D) and nut (E).
5. Tighten nut (E) firmly, counterclockwise.
6. Remove locking tool (B).
7. Install new split pin (F) to secure nut (E).
M
IN
SPA
CIN
G
A
B
C
D
E
F
