Installation – IOGear GCS612A User Manual
Page 11
3
4
8
Installation
Step 1.
Before you begin, please turn off the computers you are going to connect to the MiniView™
Micro Audio.
NOTE:
To prevent damage to your equipment due to static electric discharge, please make sure that all devices
on the installation are properly grounded.

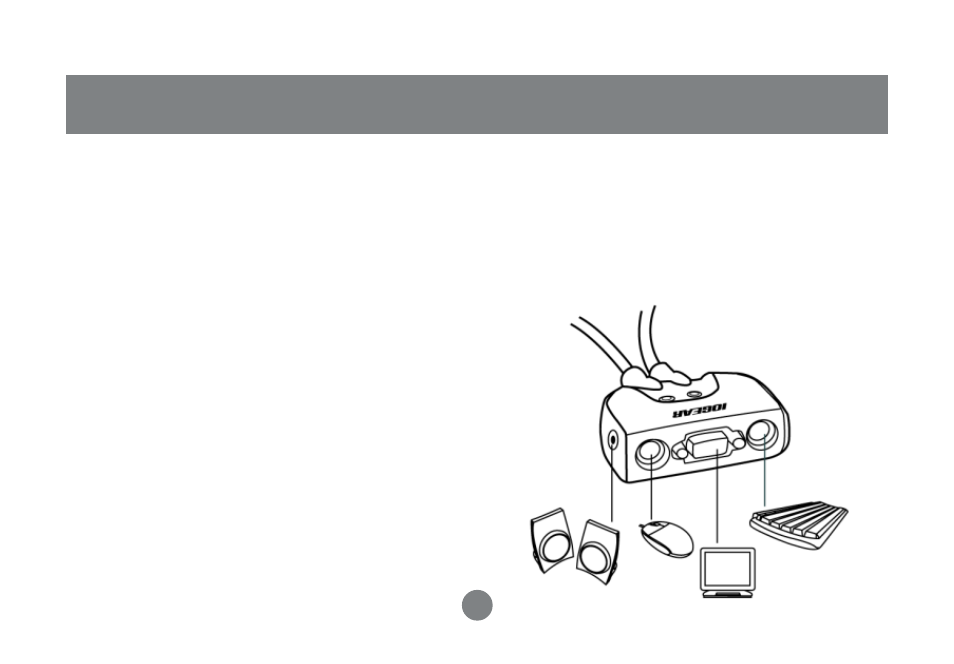

Connect your monitor to the female VGA port on
your MiniView™ Micro Audio.
Connect your PS/2 keyboard into the PS/2
keyboard port on your MiniView™ Micro Audio.
Connect your PS/2 mouse into the PS/2
keyboard port on your MiniView™ Micro Audio.
Connect your speakers directly into the audio
port on your MiniView™ Micro Audio.
1.
2.
3.
4.
