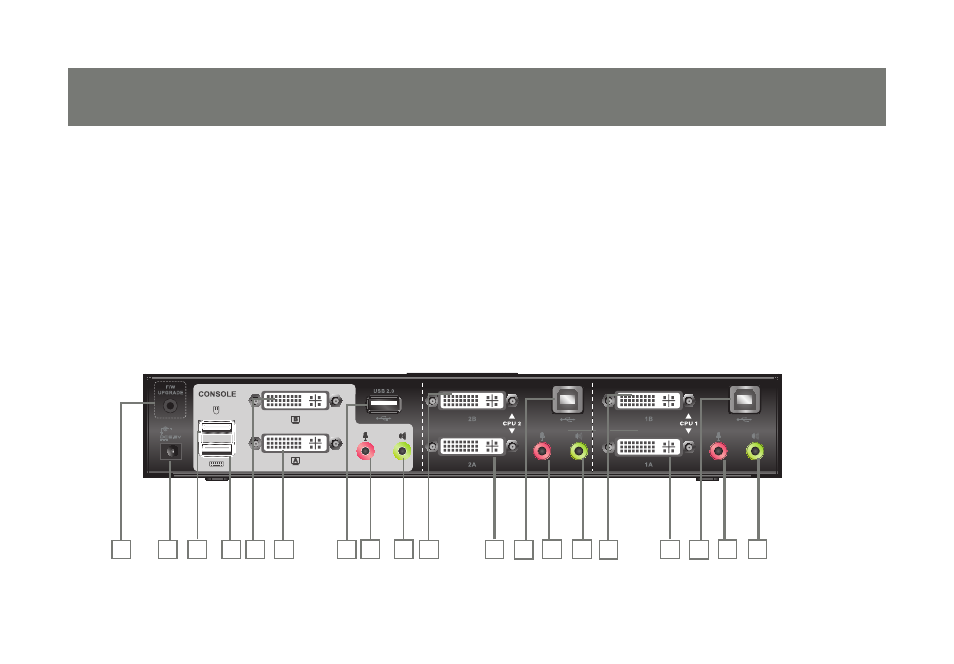

Rear View
1 9 13 18 10 14 19 12 17 3 6 8 4 5 7 11 16 2
Firmware Upgrade Port 1.
DC Power Jack 2.
Console USB Mouse Port 3.
Console USB Keyboard Port 4.
Console DVI Video Port B 5.
Console DVI Video Port A 6.
USB 2.0 Peripheral Sharing Port 7.
Console Mic. Connection 8.
Console Audio Connection 9.
CPU2 DVI Video Port 2B 10.
CPU2 DVI Video Port 2A 11.
CPU2 USB Connection 12.
CPU2 Mic. Connection 13.
CPU2 Audio Connection 14.
CPU1 DVI Video Port 1B 15.
CPU1 DVI Video Port 1A 16.
CPU1 USB Connection 17.
CPU1 Mic. Connection 18.
CPU1 Audio Connection 19.
