Page 43

Section 5 - Platform
5-3
31200345
5.4

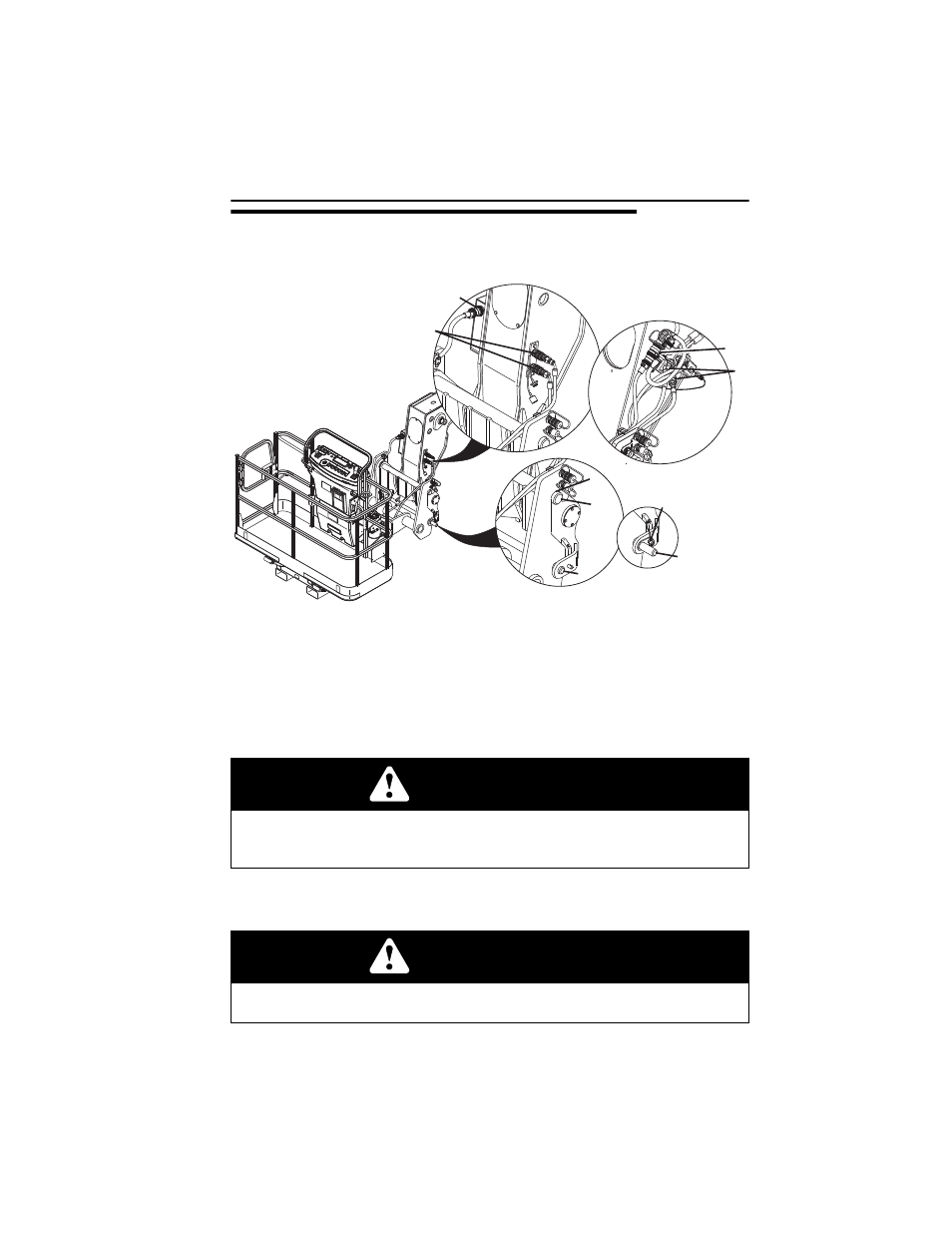

PLATFORM INSTALLATION
Verify the platform is properly installed. Refer to the Operation & Safety Manual
supplied with telehandler for complete installation instructions.
• Hydraulic Quick Attach - Attachment pin (2) engaged in platform pin recess (1)
and lock pin (3) fully engaged.
Mechanical Quick Attach - Attachment pin (2) engaged in platform pin recess
(1) and lock pin (3) fully inserted and secured with retainer pin (4).
• Platform hydraulic hoses (5) securely connected at boom.
• Platform electric cable (6) securely connected at boom.
WARNING
FALL/CRUSH HAZARD. Always be certain that platform is properly positioned
on boom and secured. Failure to ensure proper installation could permit platform
to disengage.
WARNING
Never use platform without the hydraulic hoses and electrical cable properly
installed.
OZ2802
3
2
1
3
4
5
6
5
6
MECHANICAL
QUICK ATTACH
HYDRAULIC
QUICK ATTACH
3513PS & 4013PS
4017PS BEFORE S/N 1160006867
4014PS
4017PS S/N 1160006867
&AFTER
