Appendix

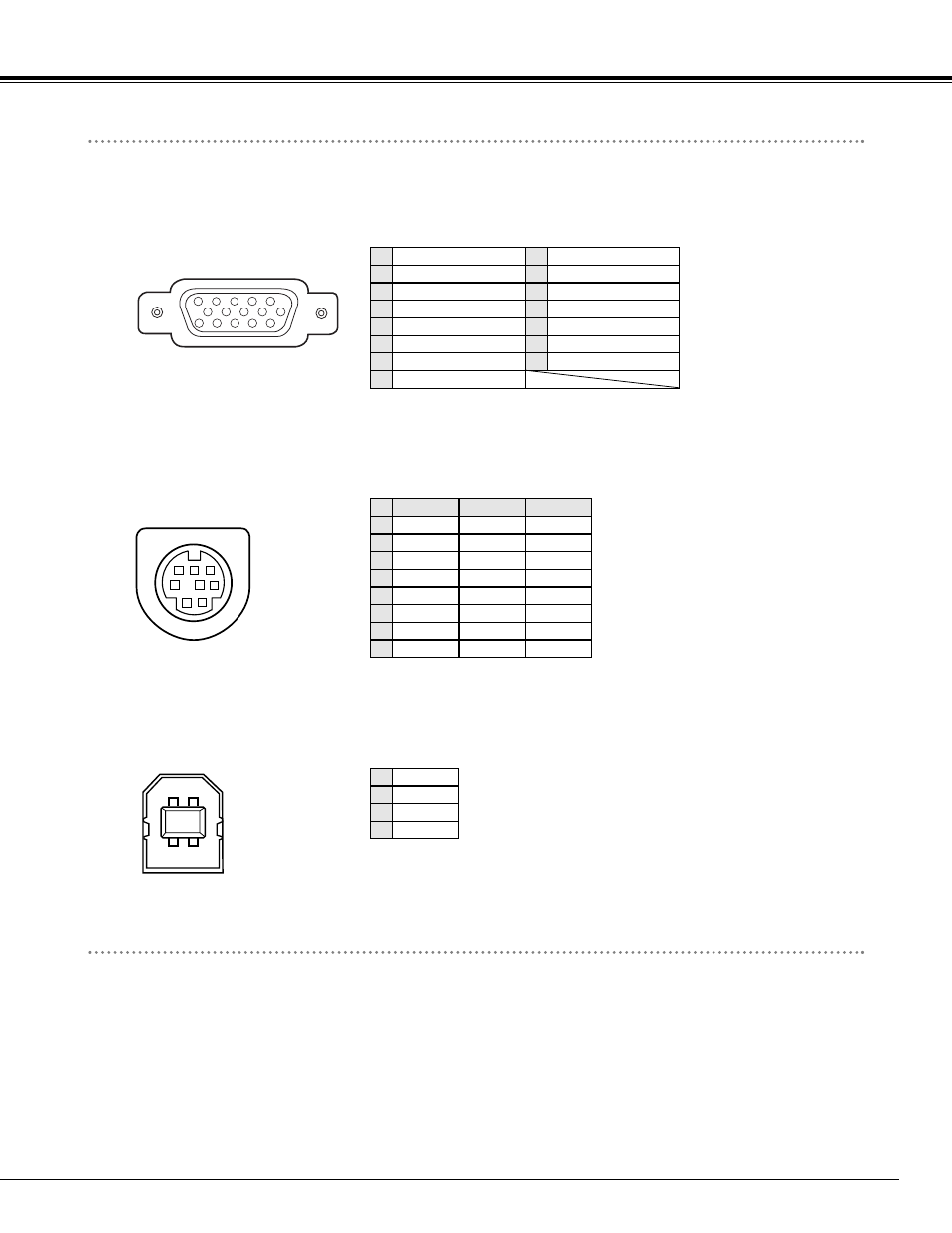

COMPUTER INPUT TERMINAL (ANALOG)
Terminal : HDB15-PIN
5 1 2 3 4
10 9 6 7 8
15 14 13 11 12
R / Cr, Pr Input
Ground (Horiz.sync.)
G / Y Input
No Connect
B / Cb, Pb Input
Ground (Red)
Ground (Green)
Ground (Blue)
1
5
2
4
3
6
7
8
No Connect
Horiz. sync.
Ground (Vert.sync.)
No Connect
Ground
Vert. sync.
No Connect
9
13
10
12
11
14
15
Pin Configuration
Terminal : Mini DIN 8-PIN
1 2
3 4 5
8 7 6
Pin Configuration
CONTROL PORT CONNECTOR
-----
-----
-----
GND
-----
-----
-----
-----
R X D
-----
-----
GND
-----
T X D
-----
-----
-----
-----
-----
GND
-----
-----
-----
-----
PS/2 Serial ADB
1
2
3
4
5
6
7
8
Vcc
- Data
+ Data
Ground
1
2
3
4
USB CONNECTOR (Series B)
Pin Configuration
2
3 4
1
Optional Parts
The parts listed below are optionally supplied. When ordering those parts, give name and Type No. of it to the sales dealer.
Configuration of Terminals
• COMPONENT-VGA Cable Type No. : POA-CA-COMPVGA
• SCART-VGA Cable Type No. : POA-CA-SCART
• MAC Adapter Type No. : POA-MACAP
