Brinkmann GRAND ELITE SERIES 4905 User Manual
Page 9

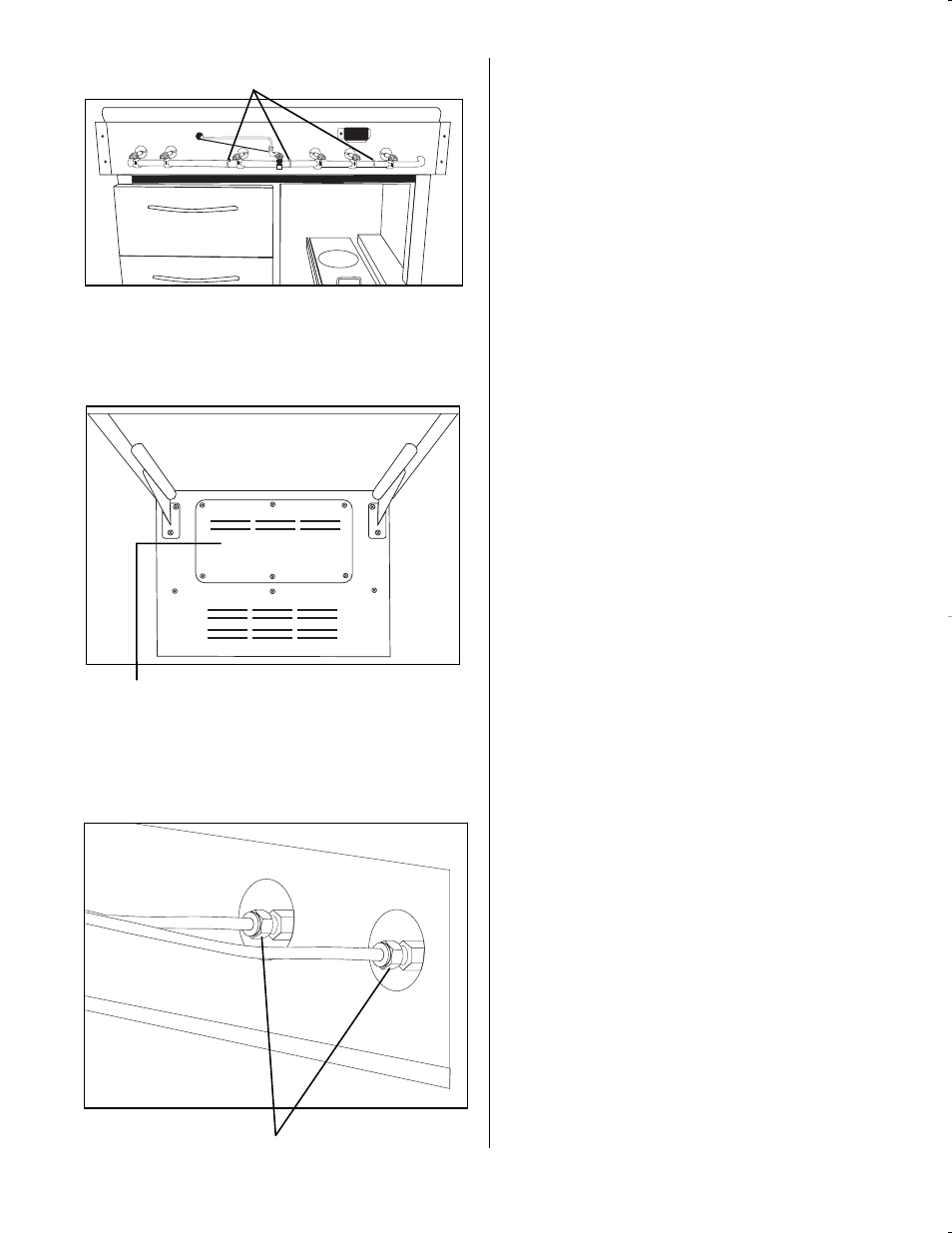

Step 5
Cut nylon ties holding the ignitor wires to the
main burner manifold.
NOTE: Be careful not to damage ignitor wires.
Step 6
Remove six screws on the access panel
located on the left side of grill. Remove panel,
this will allow access to the side burner gas
lines.
NOTE: Leave panel off until the end of
conversion and all gas leak testing has
been done.
Step 7
Loosen the gas line nuts attached to the side
burner valves.
NOTE: Bending the hose could damage the
supply line.
Step 8
Remove the brass orifices on each side burner
8
Gas Line Nuts
SMOKER BOX
Nylon Ties
Access Panel
