SECTION 3 - MACHINE CONTROLS AND INDICATORS
3-14 – JLG Lift – 3121292

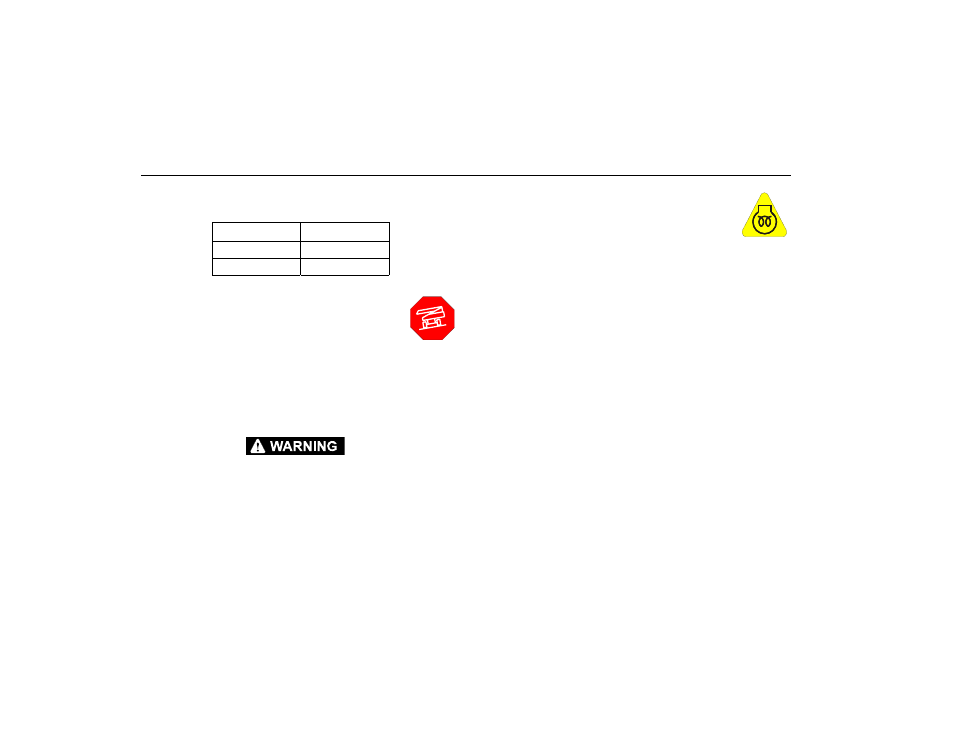

3. Tilt Alarm Warning Light and Alarm
This illuminator indicates that the chassis is
on a slope. An alarm will also sound when
the chassis is on a severe slope and the
boom is above horizontal. If lit when boom
is raised or extended, retract and lower to
below horizontal then reposition machine so that it is
level before continuing operation. If the boom is above
horizontal and the machine is on a severe slope, the tilt
alarm warning light will illuminate and an alarm will
sound and CREEP is automatically activated.
IF TILT WARNING LIGHT IS ILLUMINATED WHEN BOOM IS RAISED OR
EXTENDED, RETRACT AND LOWER TO BELOW HORIZONTAL THEN
REPOSITION MACHINE SO THAT IT IS LEVEL BEFORE EXTENDING
BOOM OR RAISING BOOM ABOVE HORIZONTAL.
4. Glow Plug/Wait to Start Indicator
Indicates the glow plugs are operating.
After turning on ignition, wait until light goes
out before starting engine.
Tilt Angle Market
3° CE & Australia
5° ANSI, CSA & Japan
