ELECTRICAL
31200360 G5-18A/2505 10-21

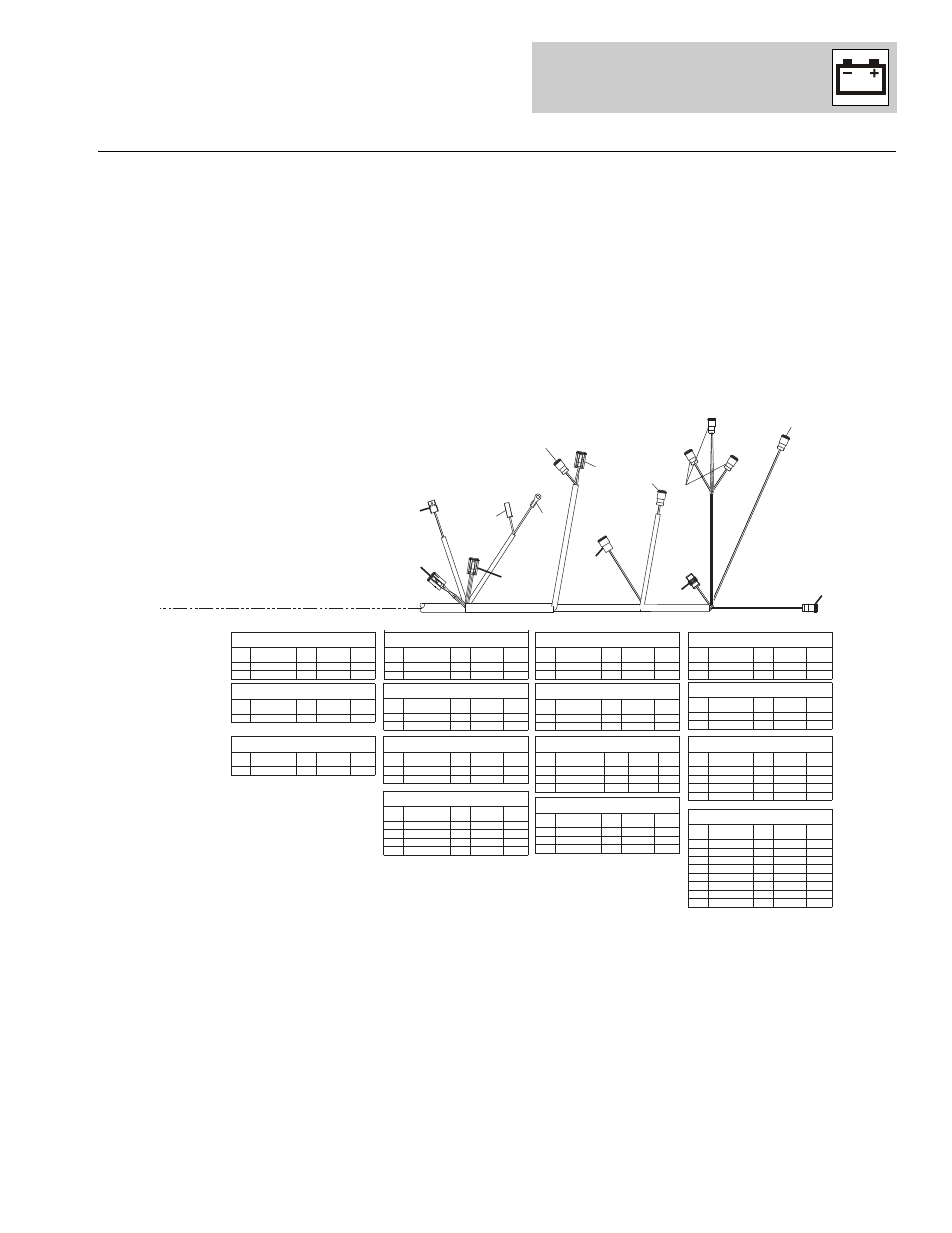

Figure 10-6 Frame Base Harness (Continued)
X27
SN127
JS52
AH64
AH64-G
X88
X89
X96
HV71
AH135
HV49-TC
HV49-AUX
HV49-CT X163
HV144
21
10
20
19
16 23
19
10
24
10
10
10
22
AH135
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE
1 008-2-1 BLU 16 AWG GXL
2 000-4-2 BLK 16 AWG GXL
HV144
CONN
POS
WIRE
DESIGNATION COLOR GAUGE
TYPE
1 055-2 GRN 16 AWG GXL
2 000-3-21 BLK 16 AWG GXL
X88
CONN
POS
WIRE
DESIGNATION COLOR GAUGE
TYPE
1 051-5 BLU 16 AWG GXL
2 000-4-3 BLK 16 AWG GXL
HV49-CT
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE
1 014-1 GRN 16 AWG GXL
2 000-3-18 BLK 16 AWG GXL
HV49-AUX
CONN
POS
WIRE
DESIGNATION COLOR GAUGE
TYPE
1 055-1 GRN 16 AWG GXL
2 000-3-19 BLK 16 AWG GXL
HV49-TC
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE
1 025-2 GRN 16 AWG GXL
2 000-3-17 BLK 16 AWG GXL
HV71
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE
1 076-3 GRN 16 AWG GXL
2 000-4-4 BLK 16 AWG GXL
X96
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE
1 008-1-3 ORG 16 AWG GXL
2 007-3 ORG 16 AWG GXL
3
X163
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE
1 062-19 YEL 16 AWG GXL
2 080-1 YEL 16 AWG GXL
X89
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE
1 076-4 GRN 16 AWG GXL
2 076-5 GRN 16 AWG GXL
3
4
AH64-G
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE
1 000-4-5 BLK 16 AWG GXL
AH64
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE
1 052-1 BLU 16 AWG GXL
JS52
CONN
POS
WIRE
DESIGNATION COLOR GAUGE
TYPE
1 026-1 GRN 16 AWG GXL
2 079-2 GRN 16 AWG GXL
3 025-1 GRN 16 AWG GXL
4 079-3 GRN 16 AWG GXL
SN127
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE
1 048-9 GRY 16 AWG GXL
2
3
003-1-12 BLK 16 AWG GXL
X27
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE
1 025-2 GRN 16 AWG GXL
2 026-4 GRN 16 AWG GXL
3 070-1-22 BLU 16 AWG GXL
4 014-1 GRN 16 AWG GXL
5 026-5 GRN 16 AWG GXL
6 062-3-3 YEL 16 AWG GXL
7 000-4-13 BLK 16 AWG GXL
8 055-2 GRN 16 AWG GXL
