SECTION 2 - PREPARATION AND INSPECTION
3120767 – JLG Sizzor – 2-7

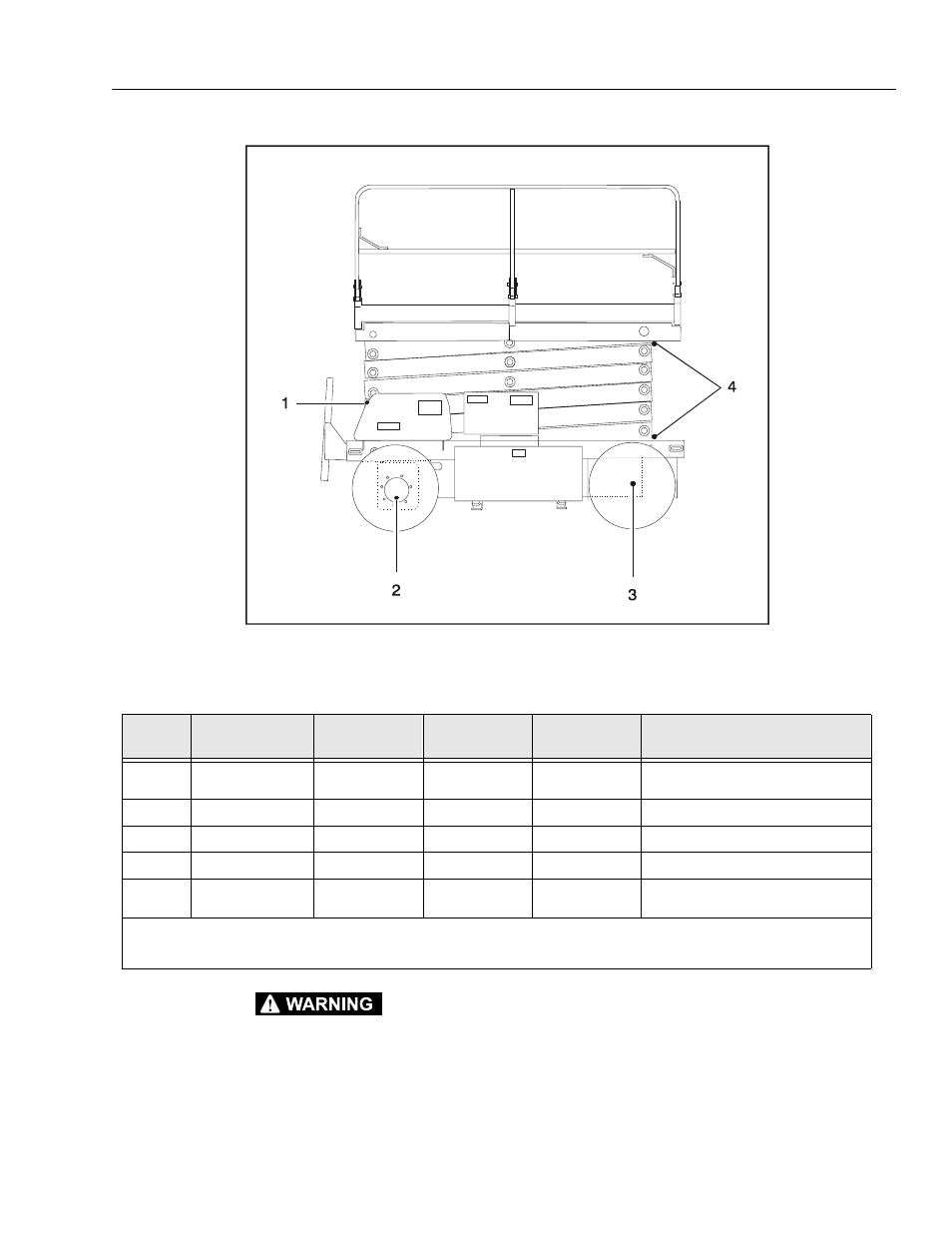

Figure 2-2. Lubrication Diagram
TO AVOID PERSONAL INJURY, USE SAFETY PROP FOR ALL
MAINTENANCE REQUIRING PLATFORM TO BE ELEVATED
NOTE: Be sure to lubricate like items on each side of the
machine
Recommended lubricating intervals are based on
machine operations under normal conditions. For
machines used in multi-shift operations and/or
exposed to hostile environments or conditions,
lubricating frequencies must be increased accord-
ingly.
Table 2-1. Lubrication Chart
INDEX
NUMBER
COMPONENT
NO/TYPE LUBE
POINTS
LUBE/METHOD
INTERVAL HOURS COMMENTS
1 Hydraulic Oil Fill Cap/Drain Plug HO - Kendall Hyken
052
8/800 Check oil every 8 hours of operation
Change oil every 800 hours of operation
2 Torque Hub Fill Plug/Half full EPGL - SAE 90 2000 Check oil level at side plug on hub
3 Wheel Bearings Front Wheels Repack 800 2 years
4 Sliding Wear Pads 8 Wear Pads Brush 50 N/A
5 Hydraulic Filter Element
(not shown)
N/A Replaceable Element 40/250 Replace filter element after first 40 hours of operation
then every 250 hour thereafter
KEY TO LUBRICANTS:
HO - Hydraulic Oil - Kendall Hyken 052
EPGL - Extreme Pressure Gear Lube
