SECTION 1 - SPECIFICATIONS
1-4 – JLG Sizzor– 3120855
1.6 SERIAL NUMBER LOCATIONS
For machine identification, a serial number plate is affixed
to the machine. On 2032E2/2632E2/2646E2 and 3246E2
the plate is located on the front, center of the machine
frame, on 1932E2 it is located above the right rear tire. The
serial number will also be stamped on the front center of
the machine frame.
1.7 LIMIT SWITCHES
The machines are equipped with the following limit
switches:
Tilt Alarm - Illuminates a light on the platform and sounds
an alarm when the machine is elevated and out of level in
any direction 2° or more.
High Drive Cut-Out - High drive speed is cut out when the
platform is raised above the preset height per model as
follows.
1932E2 - 2.6 m
2032E2 - 2.1 m
2632E2 (Australian Only) - 2.9 m
2632E2/2646E2 - 2.6 m
3246E2 - 2.8 m
1.8 CYLINDER SPECIFICATIONS
NOTE: All dimensions are given in inches (in), with the met-
ric equivalent, centimeters (cm), given in parenthe
ses.
Table 1-4. Cylinder Specifications
Description Bore Stroke Rod Diameter
Lift Cylinder
(1932E2)
3.00
(7.6)
32.00
(81.2)
2.00
(5.1)
Lift Cylinder
(2032E2)
3.50
(8.9)
38.87
(98.7)
2.00
(5.1)
Lift Cylinder
(2632E2)
3.50
(8.9)
38.94
(99.0)
2.00
(5.1)
Lift Cylinder
(2646E2)
3.00
(7.6)
37.75
(95.8)
2.00
(5.1)
Lift Cylinder
(3246E2)
3.5
(8.9)
38.94
(99.0)
2.00
(5.1)
Steer Cylinder
(All Models)
1.50
(3.8)
6.25
(15.9)
0.75
(1.9)
Brake Cylinder
(All Models)
2.00
(5.1)
1.75
(4.4)
1.00
(2.5)

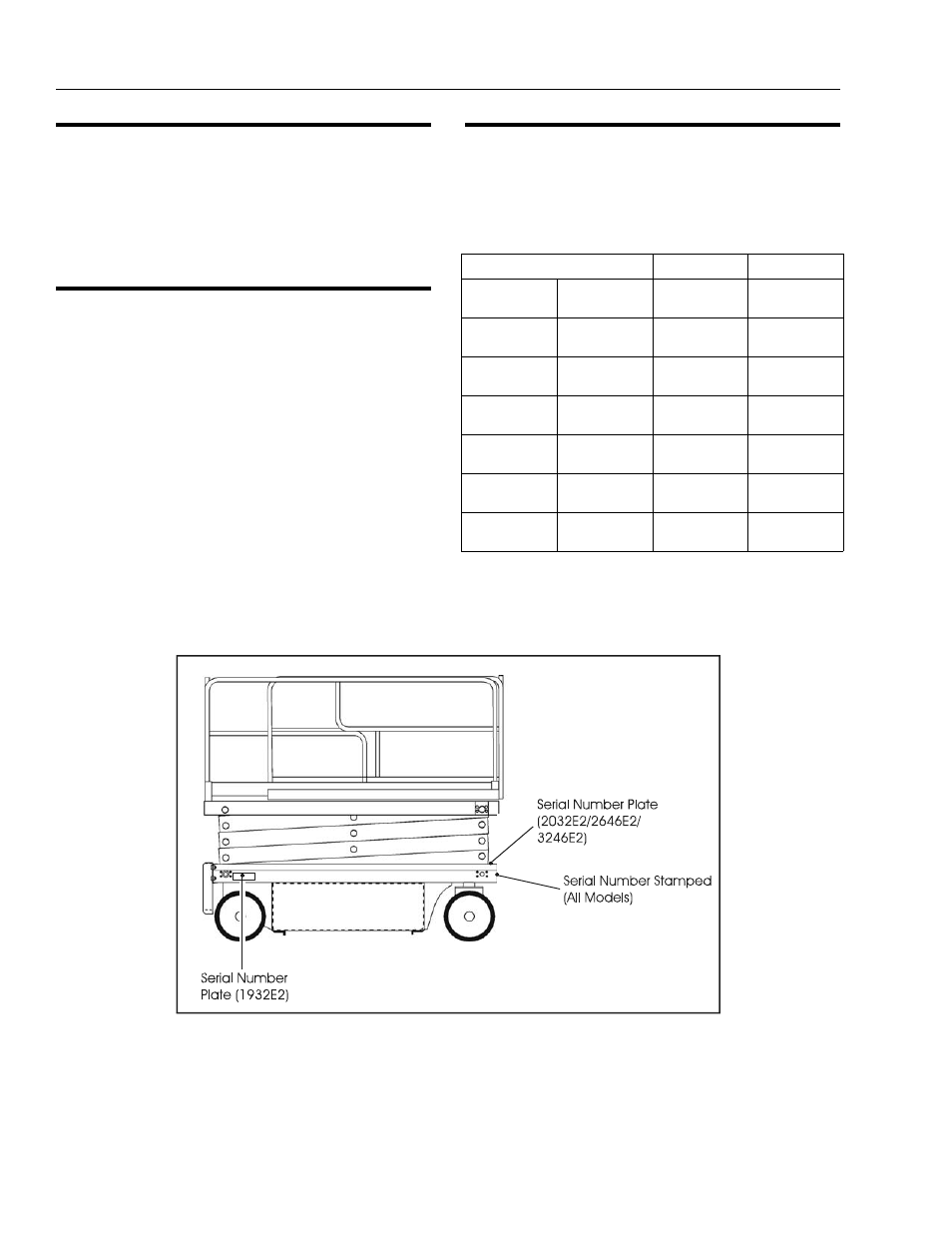

Figure 1-1. Serial Number Location
