JLG 20DVSP (3121839) Parts Manual - Manual (Page 102)

7-4 15DVL 15DVSP 20DVL 20DVSP 3121839
SECTION 7 ELECTRICAL

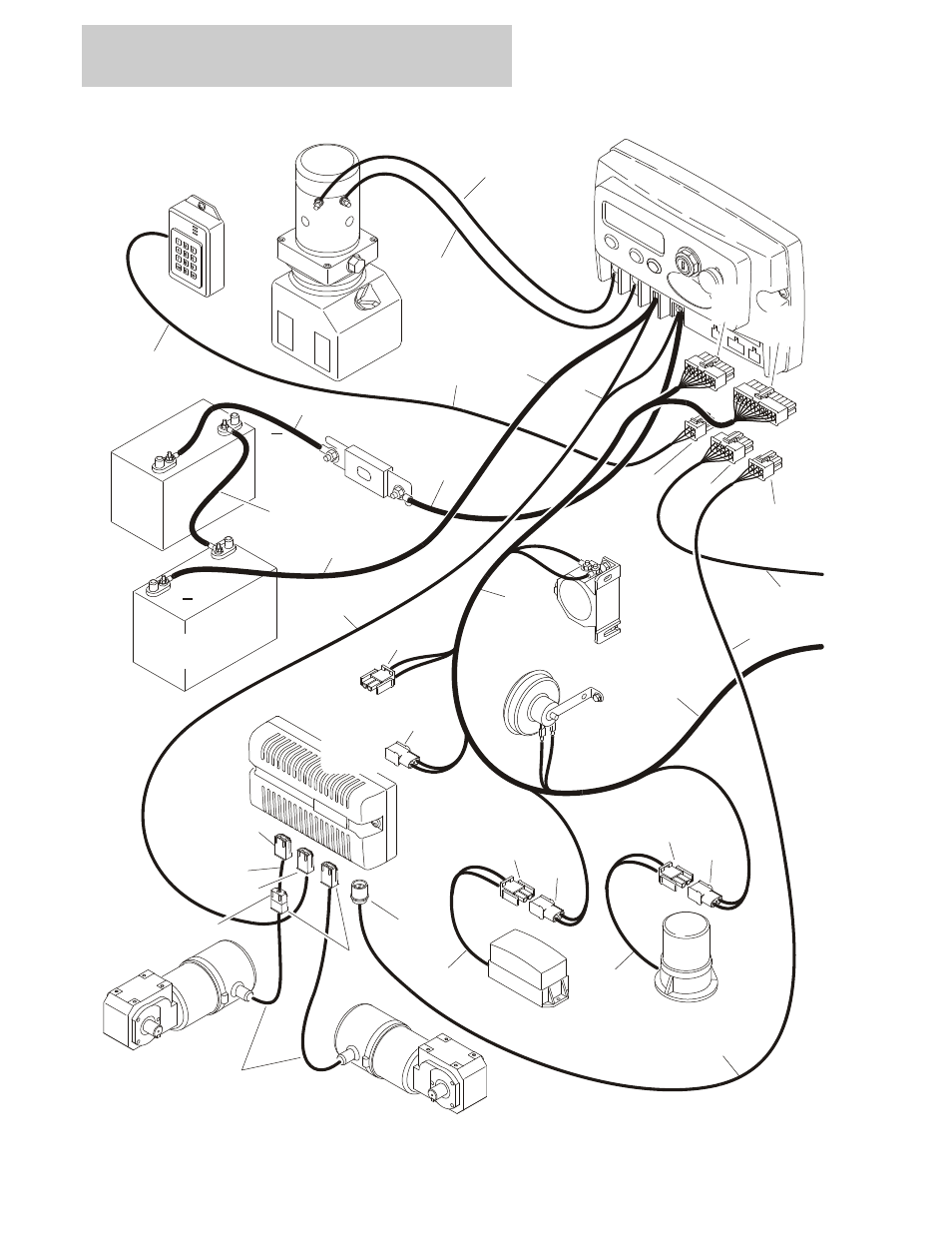

FIGURE 7-2. ELECTRICAL COMPONENTS INSTALLATION
PUMP/
MOTOR
SECURITY
LOCK
GROUND
CONTROL
STATION
BATTERIES
FUSE
ALARM
HORN
RIGHT
DRIVE
MOTOR
BEACON
LIGHT (BASE)
BEACON
LIGHT
(MAST)
TRACTION
MODULE
AUX 1
OUTPUT
POWER
12
13
305
305
8
B +
B +
B
B
9
11
11
30
30
201
201A
28B
301 302
301A
302A
110
114
110
115
29
29
111
113
114
110
113
114
AUX 2
OUTPUT
POWER
10
28
28
28A
209F
209
209C
305A
117
118
116
118
LEFT
DRIVE
MOTOR
LEFT
DRIVE
MOTOR
HARNESS
REVERSER
211B
211A
211
30A
