Bernard Cable Connectors - Manual (Page 2)

Bernard® Tweco® Lenco® Jackson®
1BC* MPC/1 MBP LC 10 UB-1-BP
2BC* 2 MPC/2 MBP LC 40 UD-3-BP
4BC* 4 MPC/4 MBP LC 40 HD UB-4-BP
2-1BC 2-1-MBP LC 1040 UWB-BP
B-1AF 1-AF CT-10FA N/A
B-2AF 2-AF CT-40FA N/A
©2007 Bernard Printed in U.S.A.

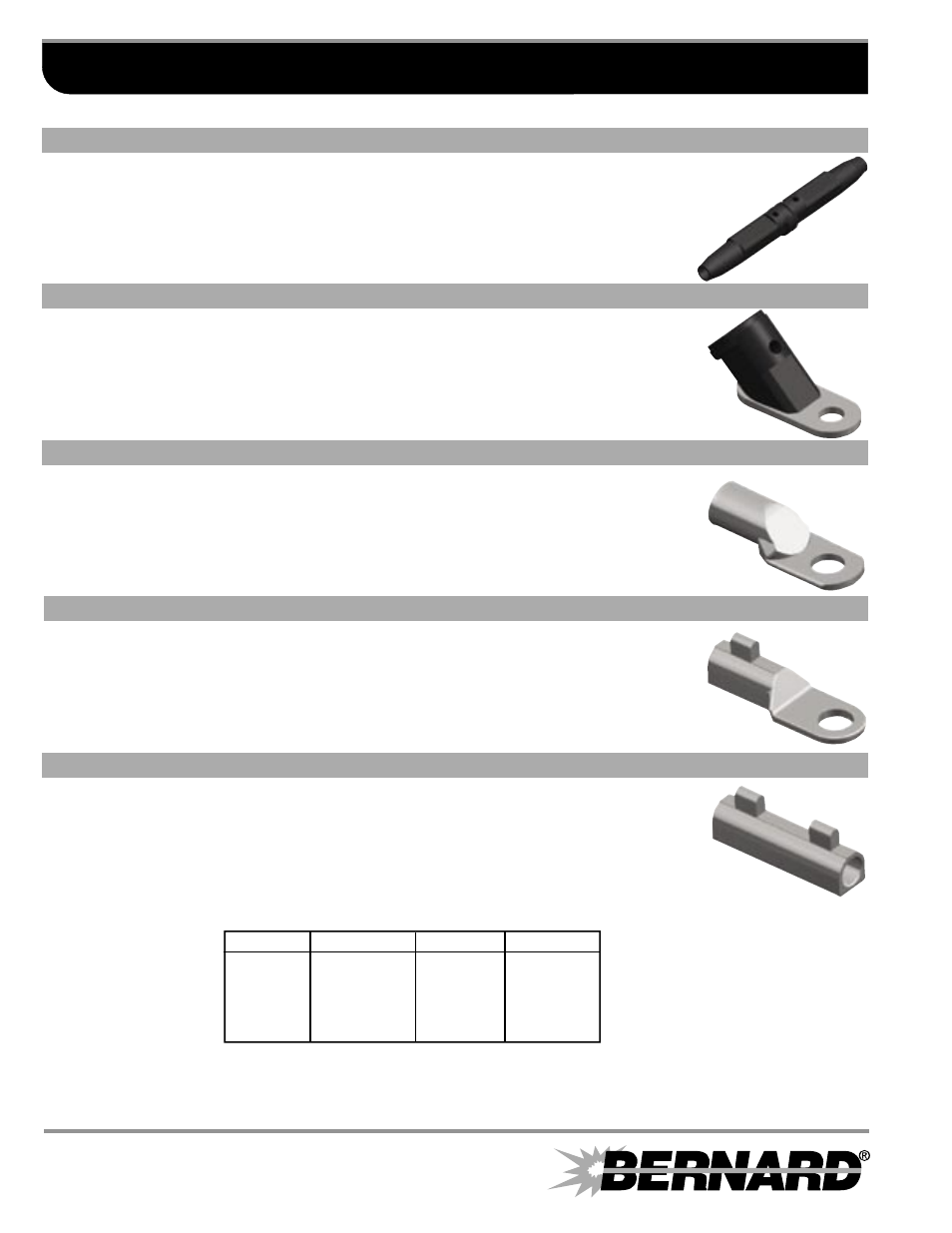

Available Manual Products
CABLE CONNECTORS
Model: 1BC 2-1BC 2BC 4BC
Cable Sizes: 4,2,1 4,2,1 1/0, 2/0, 3/0 3/0, 4/0
(35-50 mm 2 ) (35-50 mm 2 ) (50-70 mm 2 ) (70-95 mm 2 )
Details: 1BC-F: Female Mates w/ 2BC-F: Female 4BC-F: Female
1BC-M: Male 2BC-F or 4BC-F 2BC-M: Male 4BC-M: Male
TERMINAL LUGS
Model: B-1AF B-2AF
Accepts Cable Connector(s): 1BC-M 2BC-M, 4BC-M, 2-1BC
SOLDER TYPE LUGS
Model: B-62 B-120 B-3040
Cable Size: 6-2 1-2/0 3/0 and 4/0
Amperage Rating: 150 225 250
Size of Stud Hole: 17/32” 17/32” 17/32”
I.D. Cable Socket: .461” .559” .660”
Model: L11 L22 L33 L44
Cable Sizes: 3/0 and 4/0 1/0 and 2/0 2 and 1 6 thru 2
Size of Stud Hole: 21/32” 17/32” 33/64” 13/32”
I.D. Cable Socket: 5/8” 33/64” 13/32” 19/64”
Model: S11 S22 S33
Cable Sizes: 3/0 and 4/0 1/0 and 2/0 2 and 1
I.D. Cable Socket: 5/8” 33/64” 13/32”
TERMINAL LUGS
SOLDER TYPE LUGS
HAMMER-ON TYPE LUGS
SPLICERS
Bernard connectors are interchangeable with these products:
U.S. Patent. 5,366,392
*Male and Female sold separately in standard packs of two
