Operation
Operation Manual Page 11
F
O L D
D
O W N G U A R D R A I L S

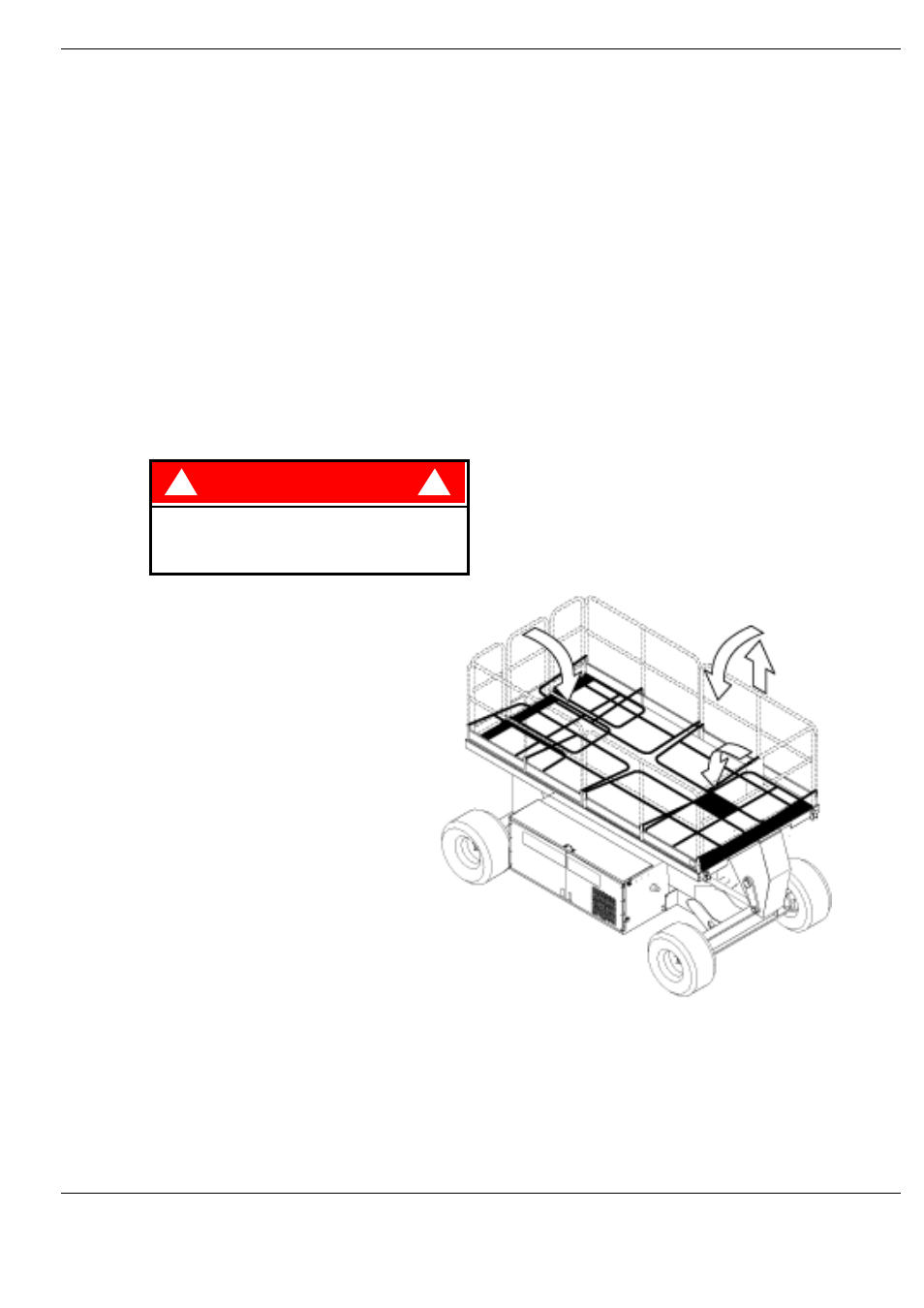

This procedure applies only to the SL26-30 Speed Level model for the purpose of passing through a stan-
dard double doorway. Guardrails must be returned to proper position before using the machine.
F OLD D OWN P ROCEDURE
1. Unhook the controller from the side guardrail and place it on the floor of the platform.
2. Starting at the front of the platform, remove nuts, bolts and washers from the top of the front guardrail.
Fold the front guardrail down onto the platform.
3. Close and latch gate.
4. Remove nuts, bolts and washers from the top of the rear guardrail. Fold the rear guardrail down onto the
platform being careful to keep latched at all times.
5. Remove nuts, bolts and washers from the top of the side guardrails. Lift up and fold one side guardrail in
so it rests on the deck. Repeat with other side guardrails.
E RECTION P ROCEDURE
1. Raise side guardrails, making sure each is pushed down to secure the guardrail in the vertical
position.
2. Install bolts, washers and nuts between the side guardrails, tighten securely.
3. Raise rear guardrail assembly, aligning holes and install bolts, washers and nuts. Tighten securely.
D A N G E R ! !
Before entering platform, guardrails
must be securely fastened in their
proper position.
