Spare parts – JUN-AIR OF1202 series [no cabinet] User Manual

Page 56

background image

56

00110

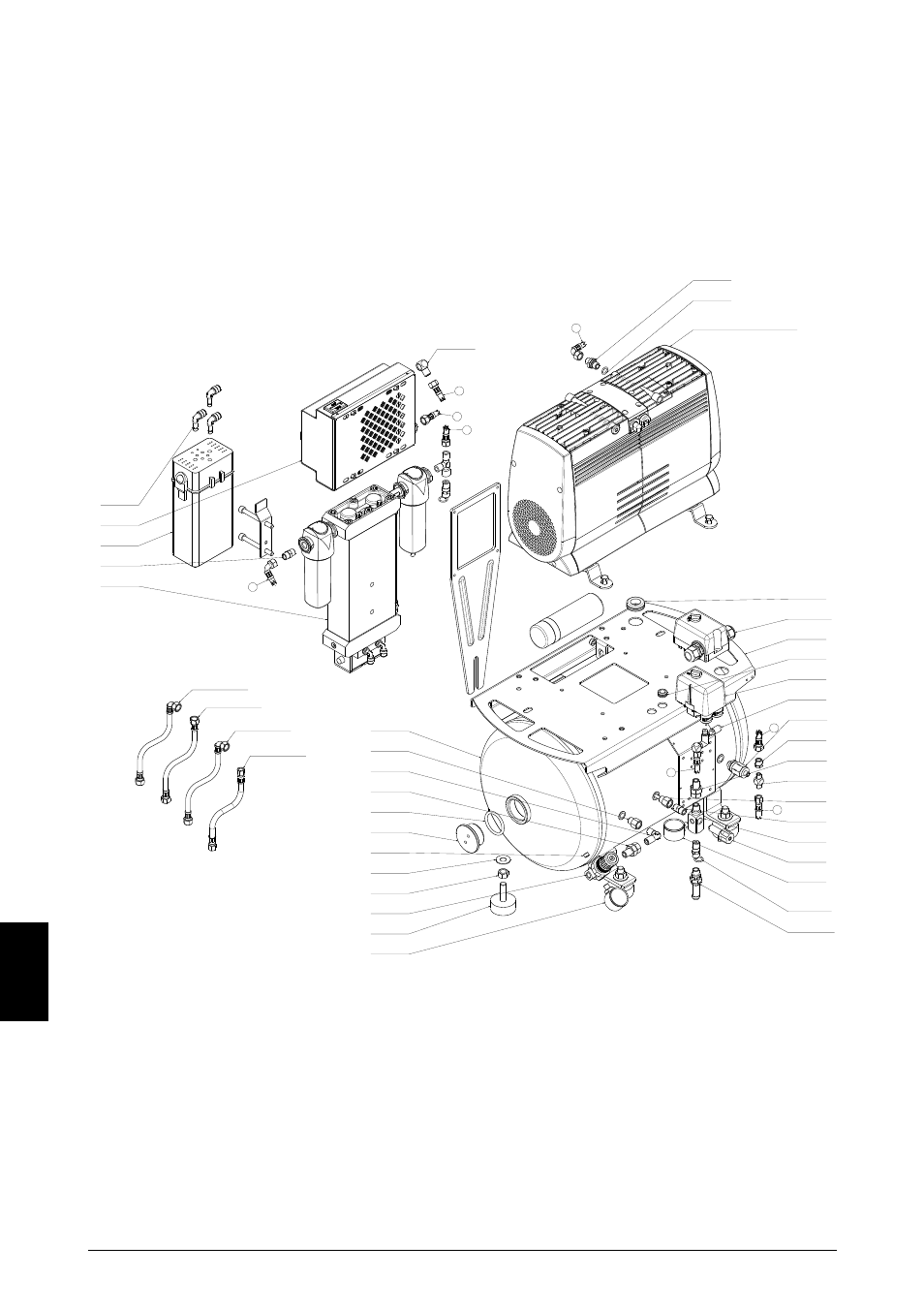

Spare parts model OF1202-40BD3

A0

Reference drawing:

Paper size:

Tolerance:

Certificate:

Surface treament:

Date

Scale:

Material:

JUN−AIR International A/S

Construct. by:

9400 Nørresundby

Sundsholmen 3−5

Denmark

Approved by:

Subject:

Rev.:

Drawing no.:

Name

and its use and distribution are restricted

MC

0220110

18−10−2005
18−10−2005

MC

F

OF1202−40BD3

1:2

Ikke toleranceangivne mål

ifølge DS/ISO 2768−mk

D−D #6433000

B−B #6451016

#7180000

A

A

B

B

C

C

D

#4083272

#5615005

#4146458

#5445225

#7024000

#7024002

#6243710

#2892100 230V/50−60Hz
#2892400 3x400V/50−60Hz

#6253200

#6317000

#6357800

#4071020

#5130000

#6340500

#7166033

#6245800

#5427003

#7181002

#7566000

#6020014

#7565000

#7071000

#5035000

#5033000

UL

#6295830

#6295602

#8111904

#6470333

#7157001

#5417700

#5425700

TÜV

#5130000

#7024000

#7566000

#5417000

UL

#5416100

D

#7052000

#5427000

C−C #6452072

A−A #6452090
