2.0 Designing with the FreeSpace ® 4400 System

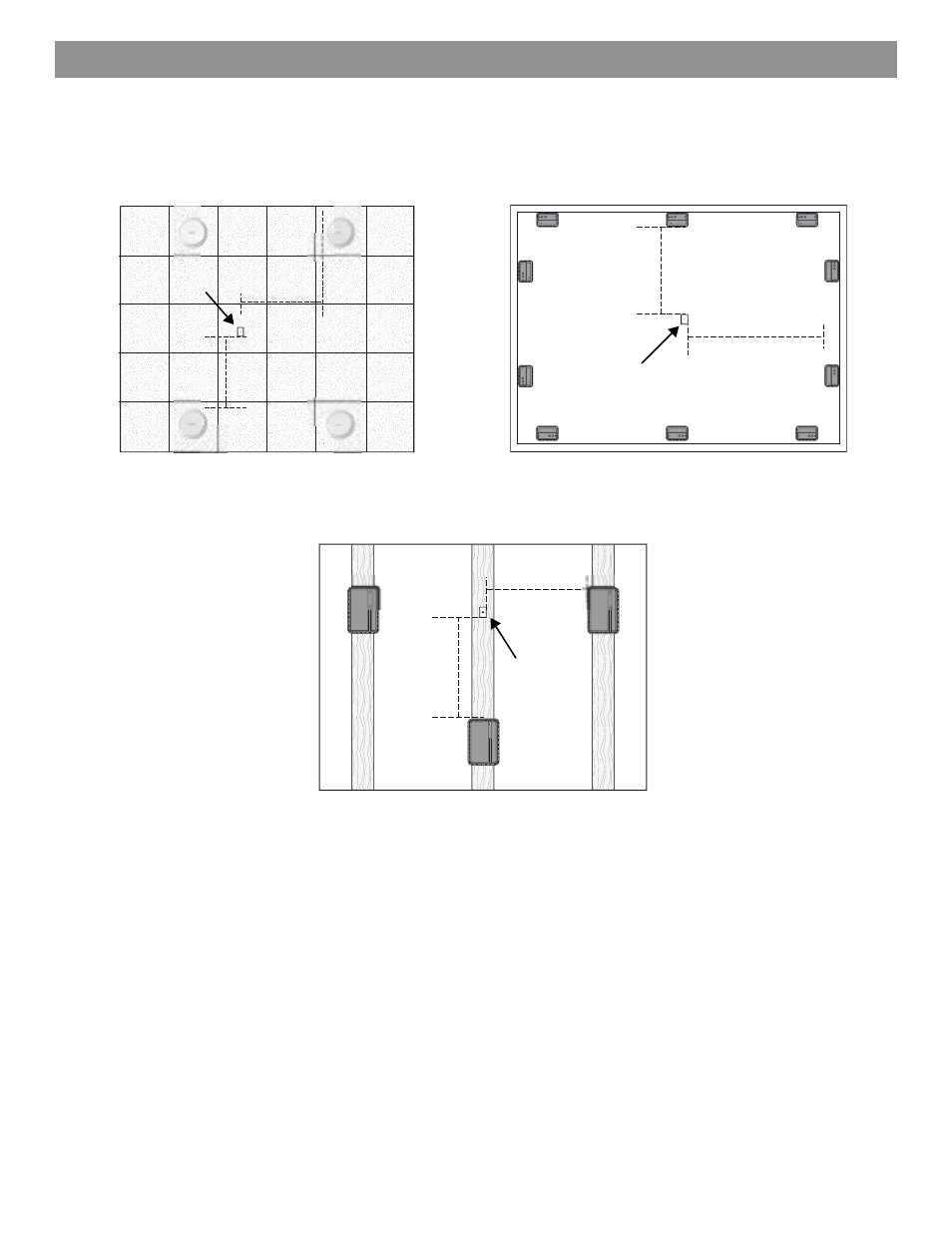

When mounting sensing microphones, always maintain a dis-
tance of 6 ft (1.8 m) minimum between the microphone and the
loudspeaker.
Mic
6'
6'
Mic Mic
6'
6'
Ceiling Flush Wall Surface
Ceiling Surface
Sensing
microphone
≥6 ft
(1.8 m)
Sensing
microphone
Sensing
microphone
≥6 ft
(1.8 m)
≥6 ft
(1.8 m)
≥6 ft
(1.8 m)
≥6 ft
(1.8 m)
≥6 ft
(1.8 m)
