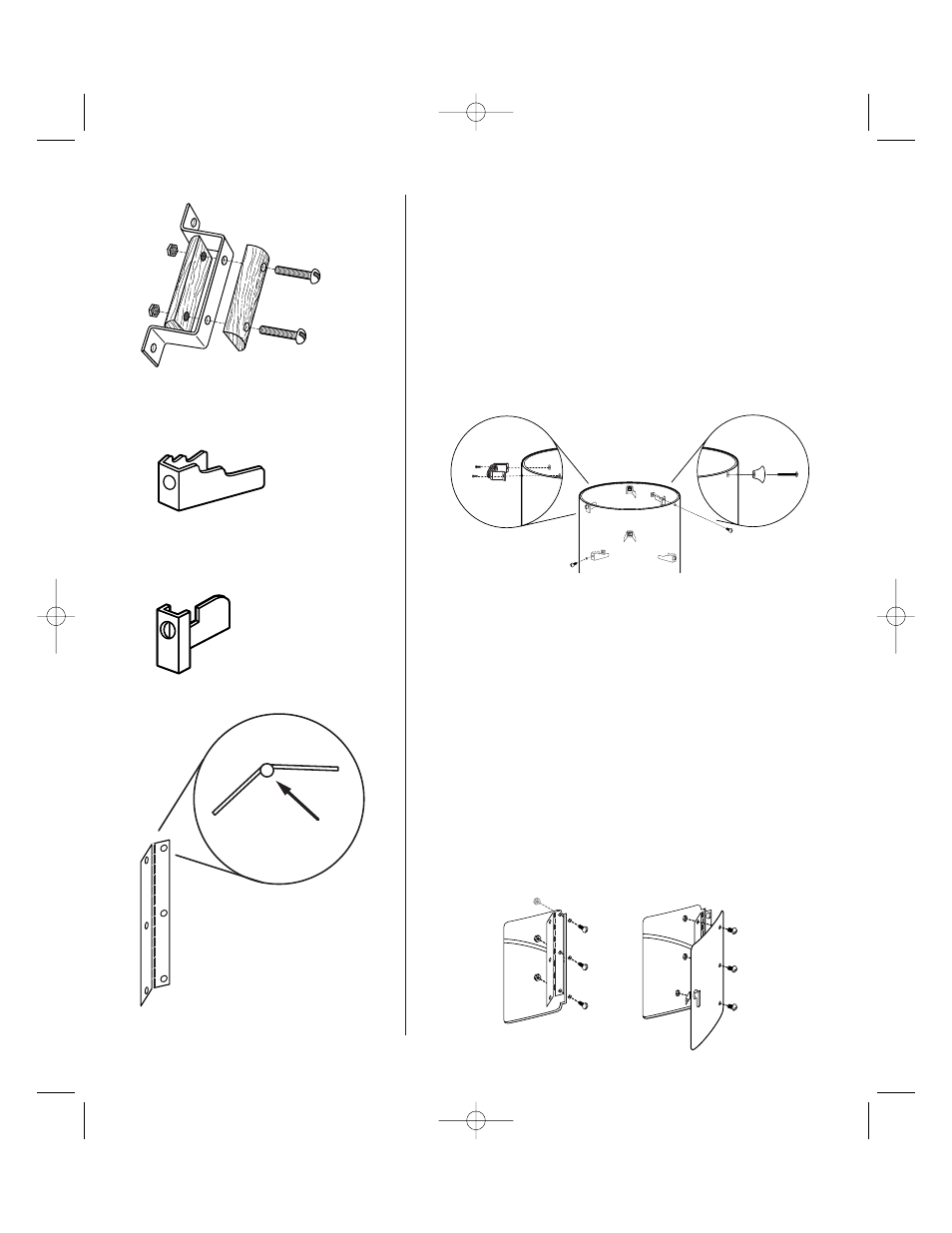

STEP 1:
Gourmet Handle Assembly & Installation
a. Attach wooden handle halves to metal brackets using 8-32 x w"
screws and nuts as illustrated. Attach two handle assemblies to side of
smoker body using 10-24 x s" screws and square nuts as illustrated.
OR
Cook’N Ca’jun Side Knob Handle Installation
a. Attach two knob handles to side of smoker body using 4-20 x w"
screws and nuts as illustrated
b. Attach the three lower support brackets (V-clips) to inside of smoker
body through the three 4" holes that are located about halfway down
the smoker body (lower level). Mount each bracket with notched side
facing up using 10-24 x s" screws and square nuts. Tighten screws
securely.
c. Attach the three upper support brackets (single clips) to inside of
smoker body through the three 4" holes located near the top edge.
Mount each bracket with notched side facing up using 10-24 x s"
screws and square nuts. Tighten screws securely.
NOTE:
If assembling the Cook’N Cajun S-80 Charcoal Smoker,
proceed to Step 3.
STEP 2:
a. Attach hinge to inside of smoker body as illustrated. Use 6-32 x 4"
screws and nuts to attach hinge to smoker body.
NOTE:
Attach the hinge so pin is facing out of smoker as illustrated.
Pin Facing Out
Upper support bracket
(Single clip) with notched
side facing up.
Smoke’N Grill Side
Handle Installation
Cook’N Ca’jun Side
Knob Handle Installation
Lower support bracket
(V-clip) with notched
side facing up.
