Automatic Lift Fryer
Replacement Parts
32

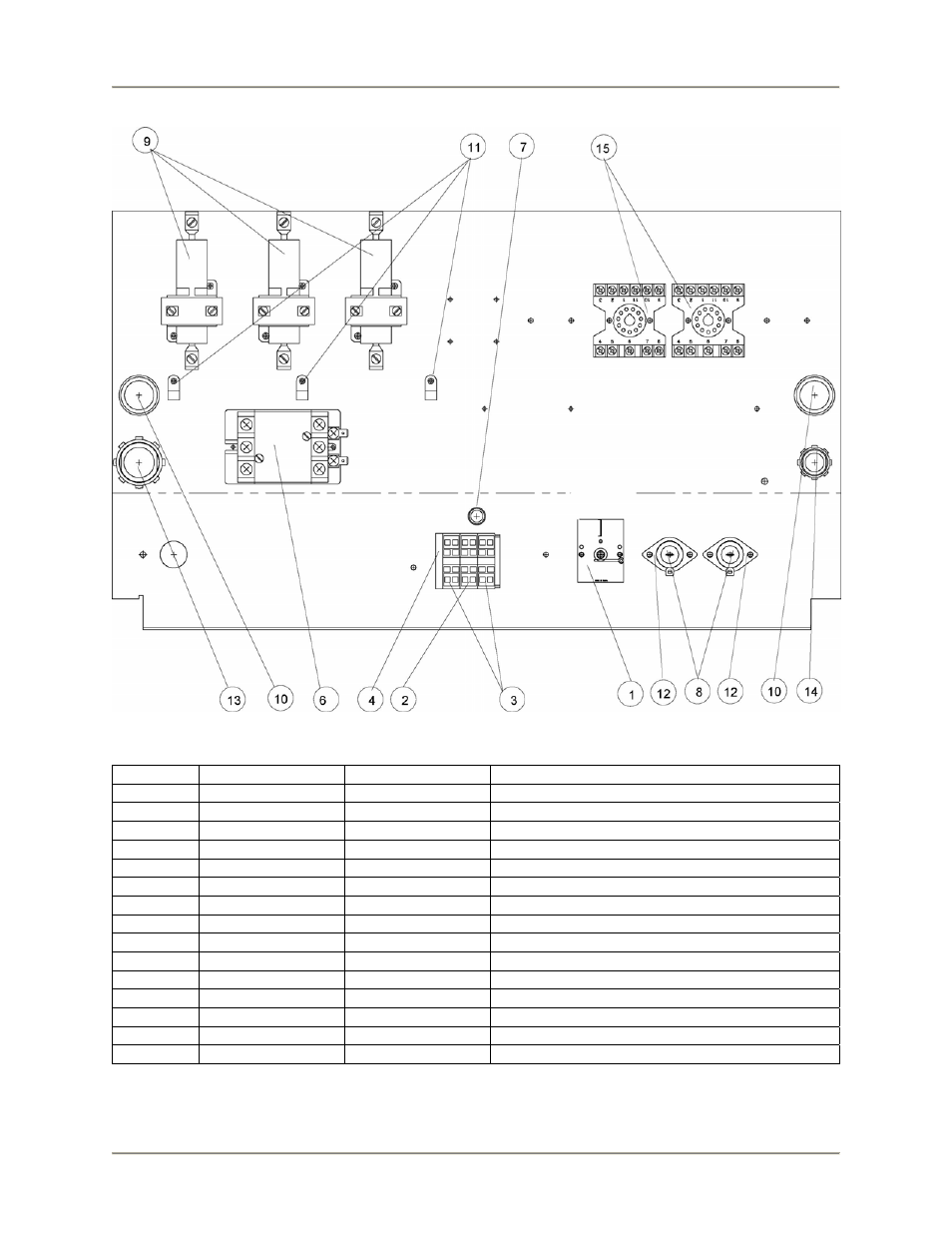

Figure 8. Rear Panel BLF-F
Table 8. Rear Panel BLF-F Parts
ITEM #
PART #
QTY
DESCRIPTION
1 T0036
1
THERMOSTAT, HI LIMIT 540 DEG
2 TB0064
1
TERM BLOCK 4 CONDUCTOR CTR
3 TB0065
2
TERM BLOCK 4 CONDUCTOR W/MTG FOOT
4 TB0068
1
TERM BLOCK END PLATE
5 TB0069
1
TERM BLOCK JUMPER BAR (not shown)
6 R0148
1
RELAY, 3 POLE 42CF35AG
7 F0158
1
BUSHING, BLK 1/2 HEYCO SNAP
8 F0097
2
FUSE, 15A 300V SC15 TIME DELAY
9 R0134
3
RELAY, MERCURY MDI 60NO220A
10 F0154
2
BUSHING, BLK 1-3/16 HEYCO SNAP
11 F0342
3
CLAMP, CABLE 3/16"
12 FH0001
2
FUSE HOLDER, 15A 300V HPF-EE
13 FT0080
1
CONNECTOR, BOX #7483 1"
14 FT0277
1
PLUG, HOLE 7/8" (1/2" CONDUIT)
15
R0131
2
RELAY. PLUG IN 3PDT 240V COIL
