Page 17
P4M800 Pro-M7
15

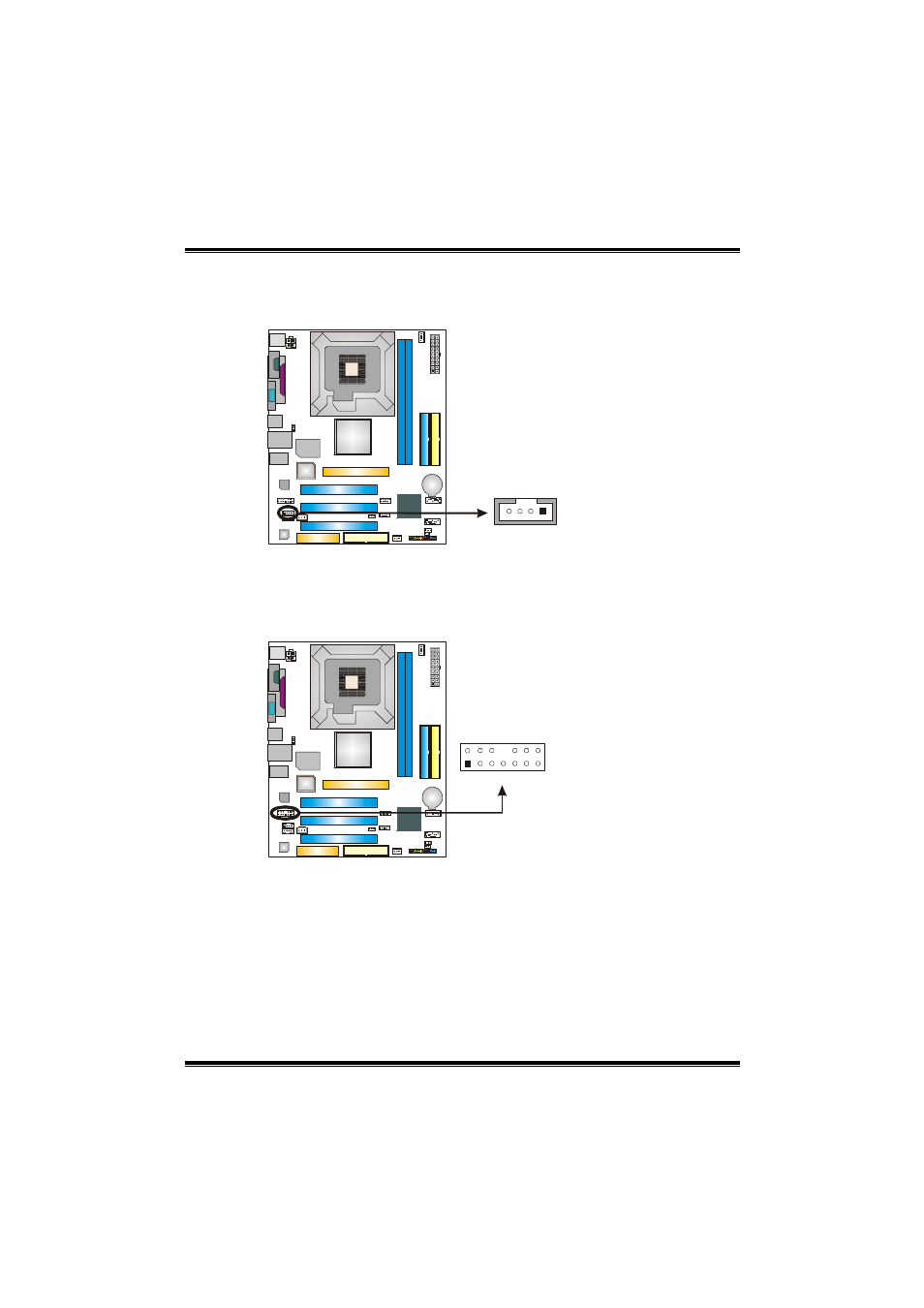

JCDIN1: CD-ROM Audio-in Connector
This connector allows user to connect the audio source from the variaty devices,
like CD-ROM, DVD-ROM, PCI sound card, PCI TV turner card etc..
Pin
Assignment
1 Left
Channel
Input
2 Ground
3 Ground
1
4
4
Right Channel Input
JFAUDIO1: Front Panel Audio Header
This header allows user to connect the front audio output cable with the PC front
panel. It will disable the output on back panel audio connectors.
Pin
Assignment
1 Mic-in/Stereo
MIC-in
R
2 Ground
3
Stereo MIC-in L
4 Audio
power
5 Right
line-out/
Speaker-out Right
6 Right
line-out/
Speaker-out Right
7 Reserved
8 Key
9 Left
line-out/
Speaker-out Left
10 Left
line-out/
Speaker-out Left
11 Right
line-in
(optional)
12 Right
line-in
(optional)
13
Left line-in (optional)
1
13
2
14
14
Left line-in (optional)
