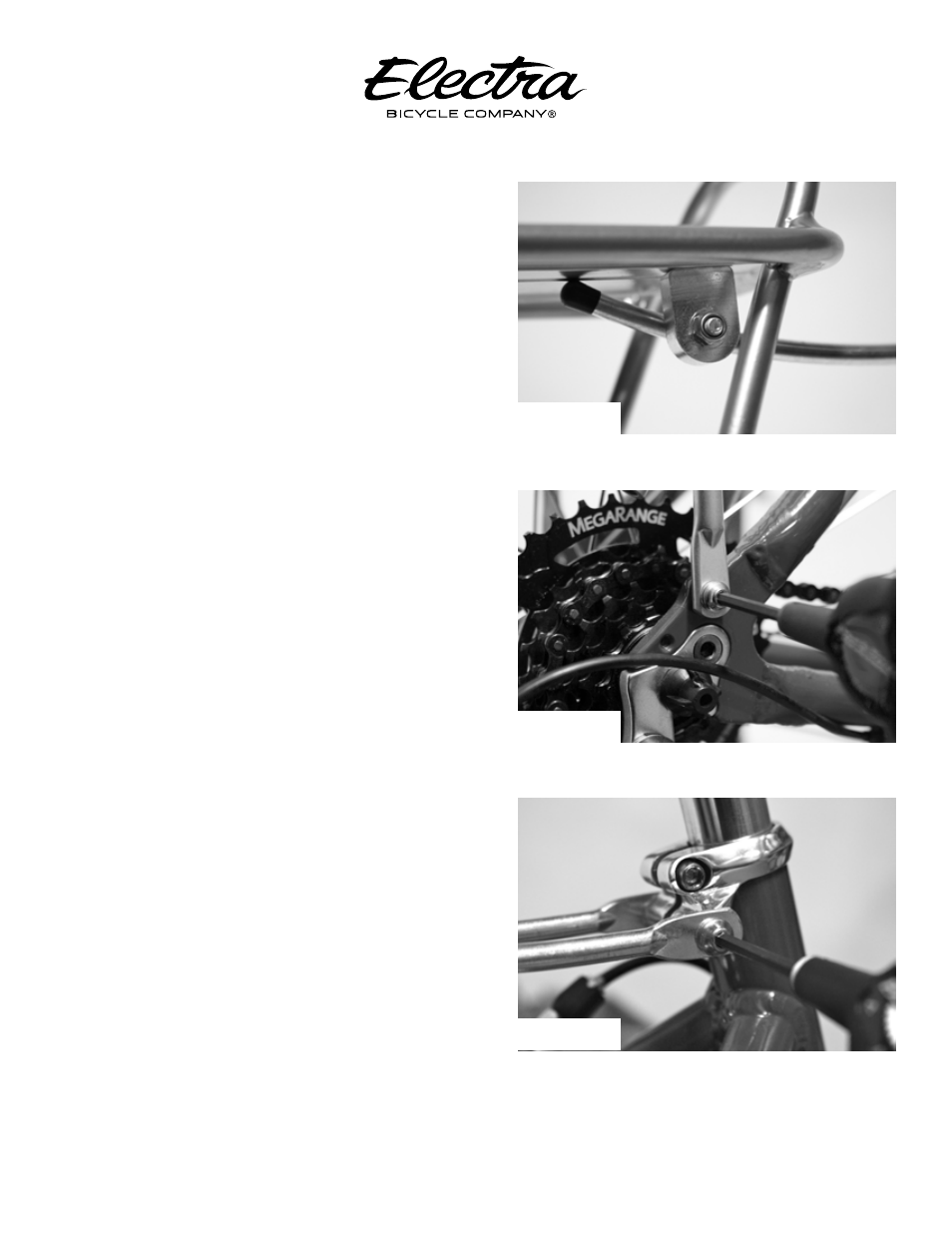

STEP 1: Installation of arms to rack top
1) Using chart from the previous page, select the
proper arms for your Verse.
a. If needed, replace arms by removing
plastic end caps and sliding new arms
into place.
2) Install arms to rack top using included bolts.
10mm nuts on mounting block are to be
facing out.
Note: Arms will arc upward when using
220mm arms and arc downward when
using 230mm arms.
3) Do not fully tighten hardware yet.
STEP 2: Installation of rack to bicycle
1) Using two machine screws, install rack to
frame dropouts.
Note: Use upper dropout mount on
bicycle, lower dropout mount is designed
for fender mounting.
2) Attach rack arms to seat collar rack mount.
3) Make sure that top of rack deck is level.
STEP 1:2
STEP 2:1
STEP 2:2
