Electra Townie Balloon Fender Set (350106, 350107) - Manual (Page 4)

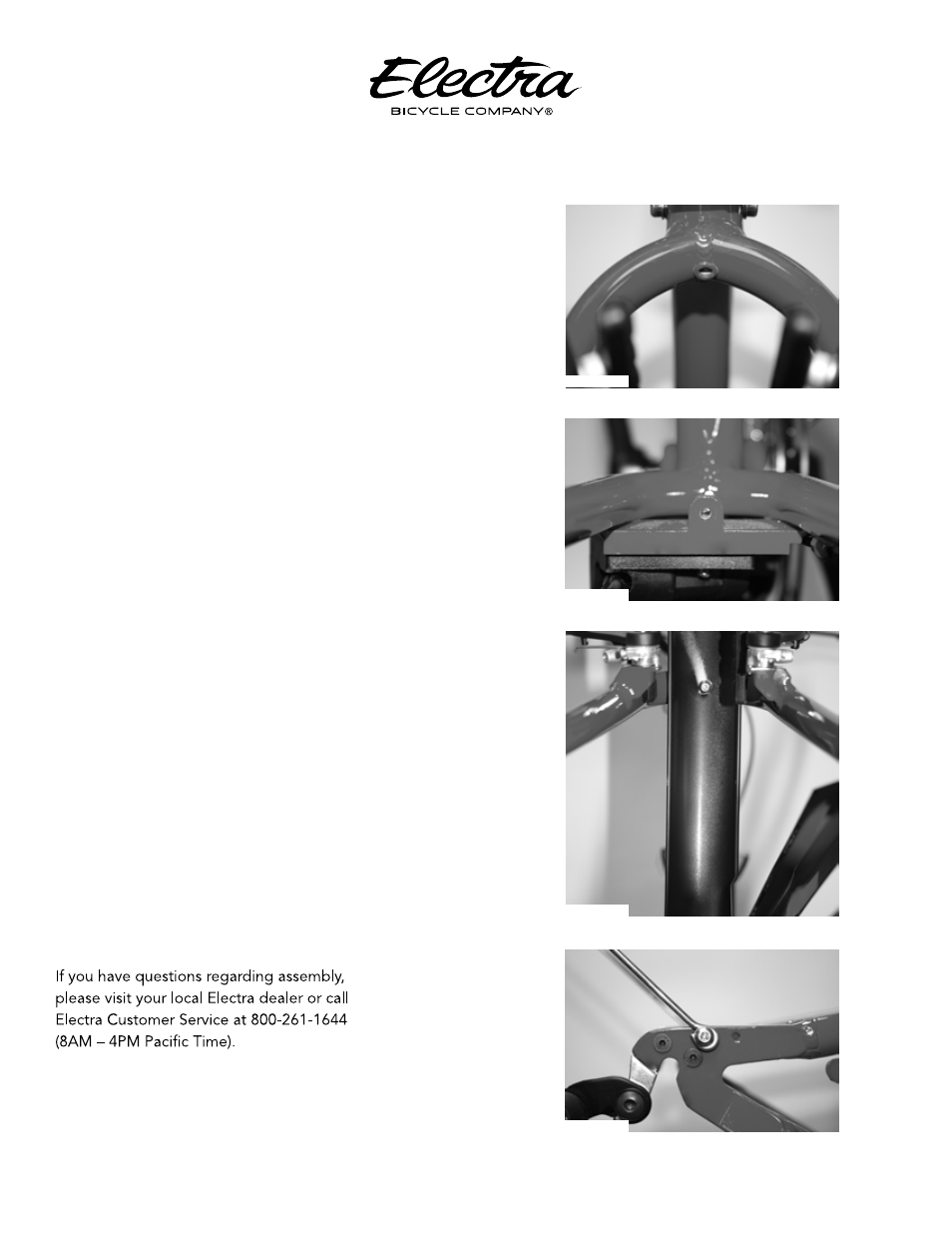

STEP 2: Installation of rear fender
Place bicycle in stand (if available) and
remove rear wheel.
1) Select proper fender stay for application. Use longer
stay for the rear fender.
2) Install rear fender stay to fender, using M5x9mm machine
screw, washer w/5mm opening and M5 lock nut. Tighten
using 3mm hex wrench and 8mm or adjustable wrench.
3) Install fender in the bicycle’s rear triangle, using M5x12mm
machine screw for the top (seat stay) and M5x10mm
machine screw for the bottom (back of kickstand plate.)
Tighten using 4mm hex wrench.
4) Attach fender stay ends to rear wheel dropout eyelets,
using M5x10mm machine screws. This fender set is
designed to be attached to the lower, rearmost mounting
point. The upper/forward mounting point is designed for
rack installation.
Reattach rear wheel.
Reconnect rear brake, spin wheel and make sure that wheel
is centered in dropouts and that brake pads are not rubbing
on rim and that fenders are not rubbing on tire. Check brake
operation.
IMPORTANT: Check front and rear brake operation and
make sure quick release skewers are properly tightened
prior to riding.
ELECTRA BICYCLE COMPANY ® ,LLC. • 3275 CORPORATE VIEW, VISTA, CA 92081
TEL 760-607-2453 • ORDERLINE 800-261-1644 • FAX 760-598-7350 • WWW.ELECTRABIKE.COM
STEP 2:1
STEP 2:2
STEP 2:3
STEP 2:4
