Mueller 24x24 (D.I.Y.) with Optional Center Girts and Floor Kit User Manual
Page 20
Mueller, Inc. 24x24 DIY Back Yard Kit Instructions; For additional information, see the D.I.Y. Installation Video
TEK
Screws
20

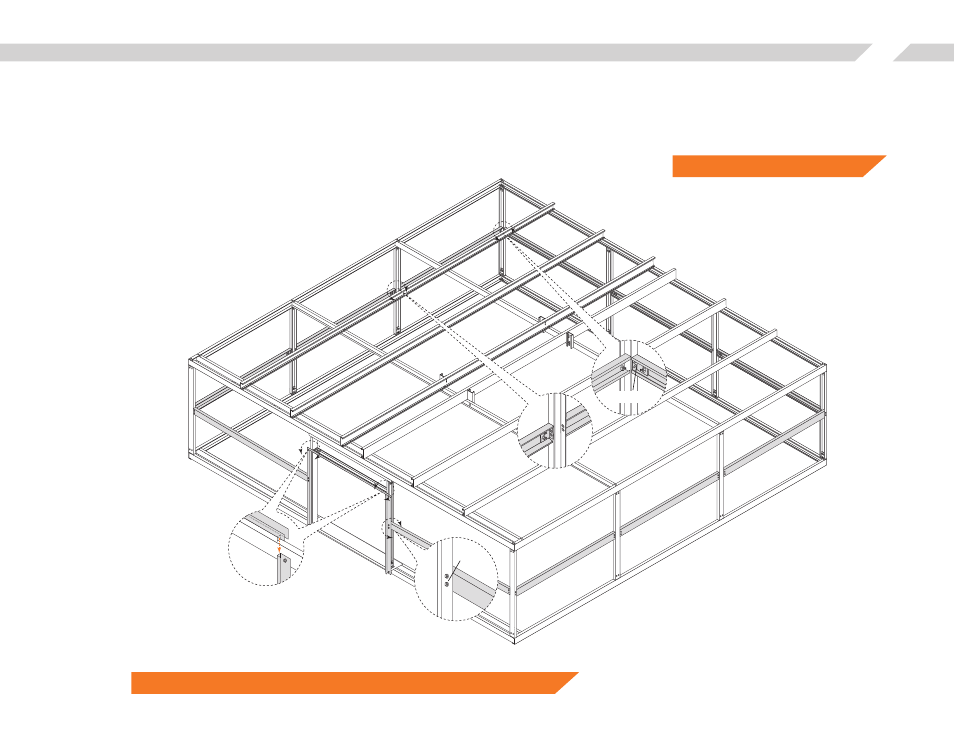

DOOr TrIM aND MID-GIrTs
(wIDe Or NarrOw rUD:
OPTIONaL - Mg-1, Mg-2 aND Mg-3)
Mid-girts for Narrow RUD
rUD 5'-9.5" x 6'-5"
Mid-girts for Wide RUD
rUD 7'-9.5" x 6'-5"
To attach MG1 or MG-3, use TEK screws to
go through door trim, door frame and girt.
NOTE: Bolt to inside of column leg
NOTE: If using optional walk door, set jamb trim inside measurement at 5'10⅛".
MG-3
Mg
-1
MG-3
Mg
-1
MG-3
Mg
-1
MG-3
Mg
-1
MG-3
Mg
-1
MG-3
Mg
-1
MKB-1 Clip
MG-2
MG-4
Mg-1
MG-3
Mg-1
MG-3
MG-2
MG-4
MG-4
MG-2
