Rubicon Express GEN2 SWAY BAR - Manual (Page 2)

GEN2 DISC D Page 2 of 2

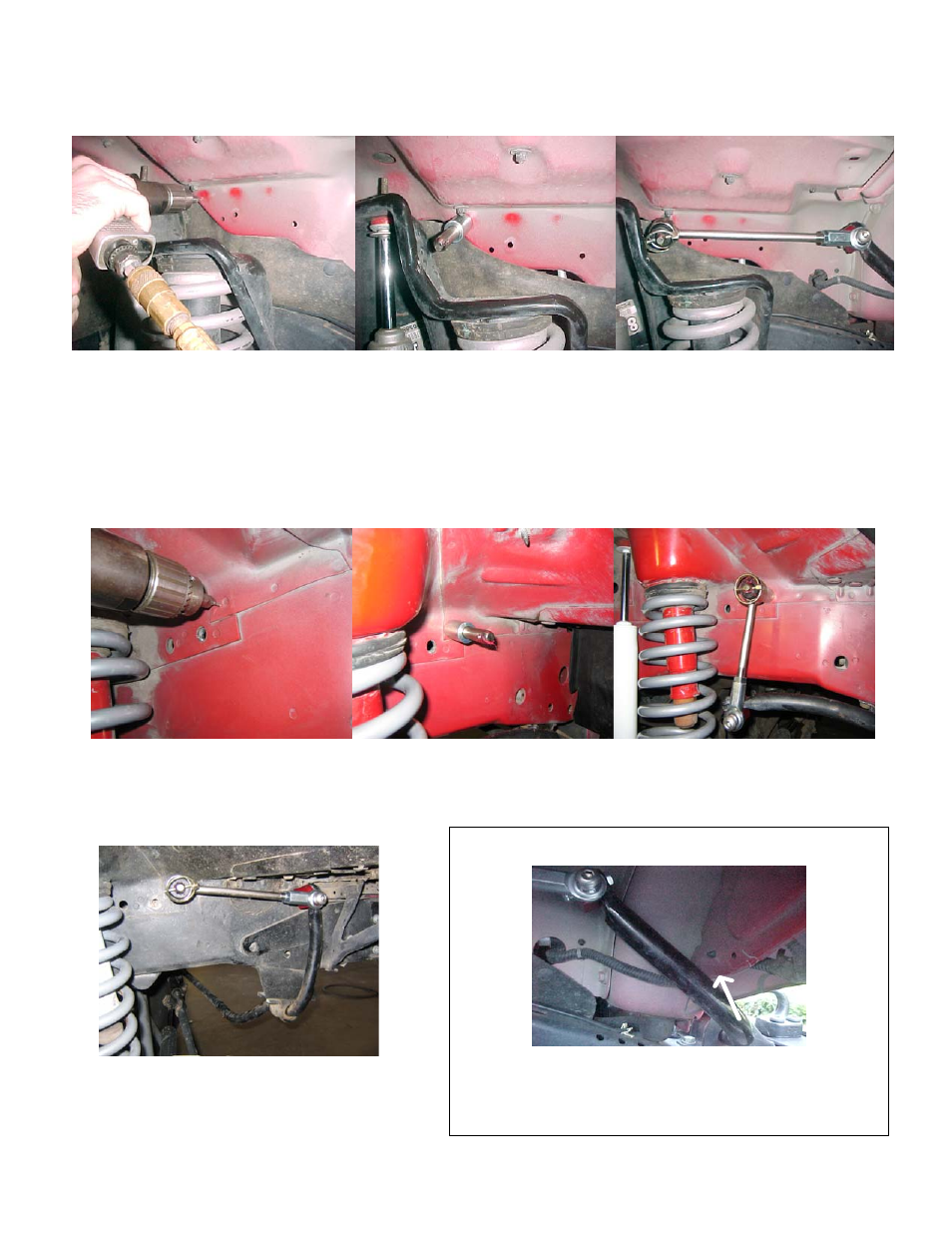

PICTURE -A-
MOUNTING PIN HOLE LOCATION & MOUNTING ORENTATION FOR ALL TJ’S
NOTE- ABOVE IMAGE SHOWS 11” DISCONNECTS (P/N RE1142, FOR 4.5-5.5” LIFTS)
FOR 2-3.5” LIFTS, 9” DISCONNECTS ARE USED (P/N RE1141), MOUNT PIN APPROX 2” FOREWARD FROM ABOVE POSITION
FOR 0-2” LIFTS, 7” DISCONNECTS ARE USED (P/N RE1140), MOUNT PIN APPROX 4” FOREWARD FROM ABOVE POSITION
PICTURE -B-
MOUNTING PIN HOLE LOCATION & MOUNTING ORENTATION FOR ALL XJ & ZJ’S, W/O RE SWAY BAR
RELOCATION BRACKETS (P/N RE9921)
GENERAL INSTALLATION TIPS
1. FOR 11” TJ DISCONNECTS (P/N RE1142), IT IS NECESSARY TO
SLIGHTLY BEND FORWARD, THE LOWER PART OF THE
FENDER SUPPORT STRUCTURE, TO MAKE CLEARANCE FOR
THE SWAY BAR LEVER.
MOUNTING ORIENTATION FOR ALL
XJ & ZJ’S WITH RE SWAY BAR RELOCATION
BRACKETS (P/N RE921)
