Connections
Connecting other devices
There are three stereo connections: two via RCA input jacks on the rear-
panel and a third via a minijack on the front of the MicroSystem CD.
In addition, a stereo line output via RCA jacks on the rear panel can feed

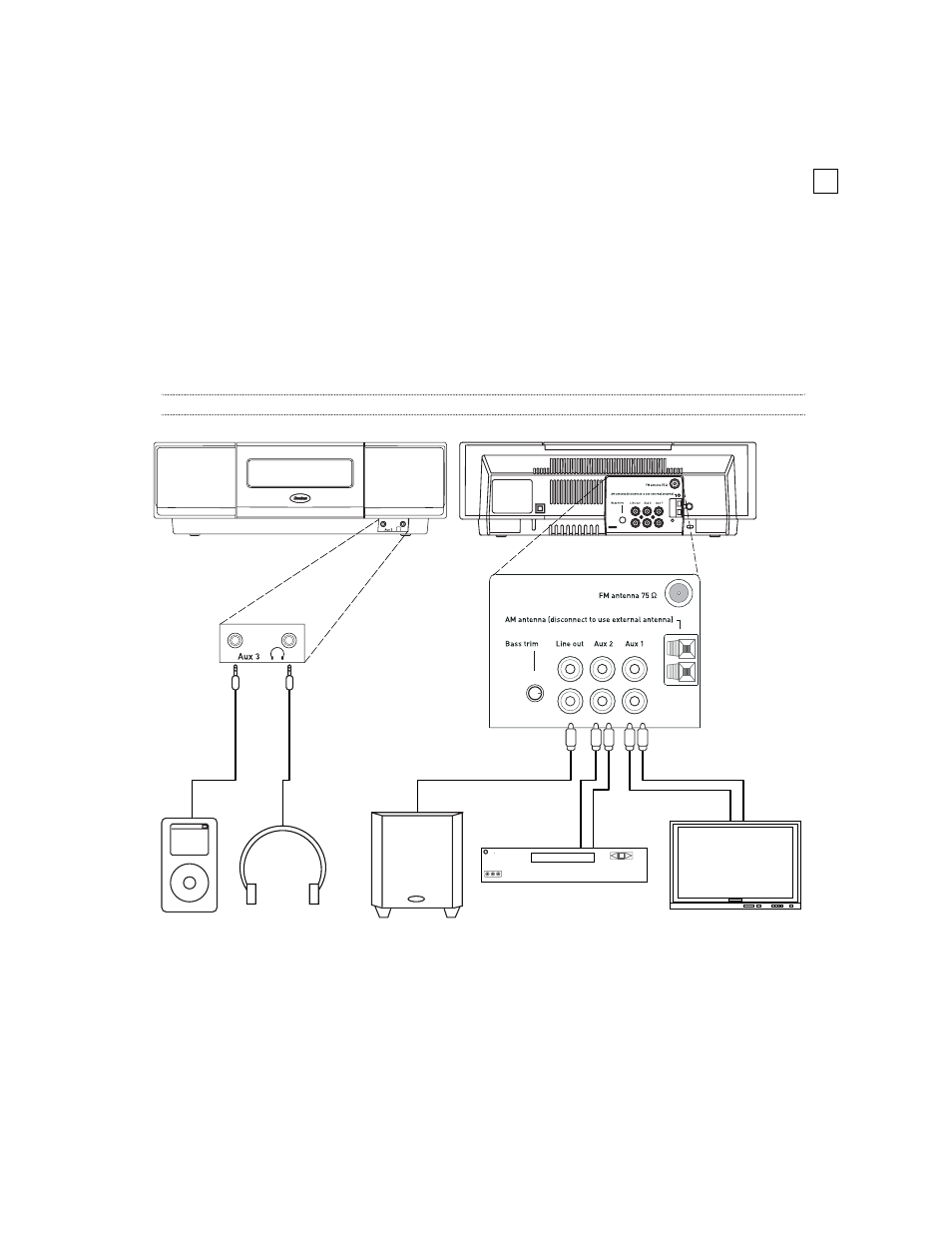

audio into an external device. Example connections are shown in the
diagram below.
Note: The subwoofer output configuration sends a summed monaural signal to both the left and right RCA jacks.
L
R
MP3 Player
Headphones
Subwoofer
TV
CD Changer
